Description

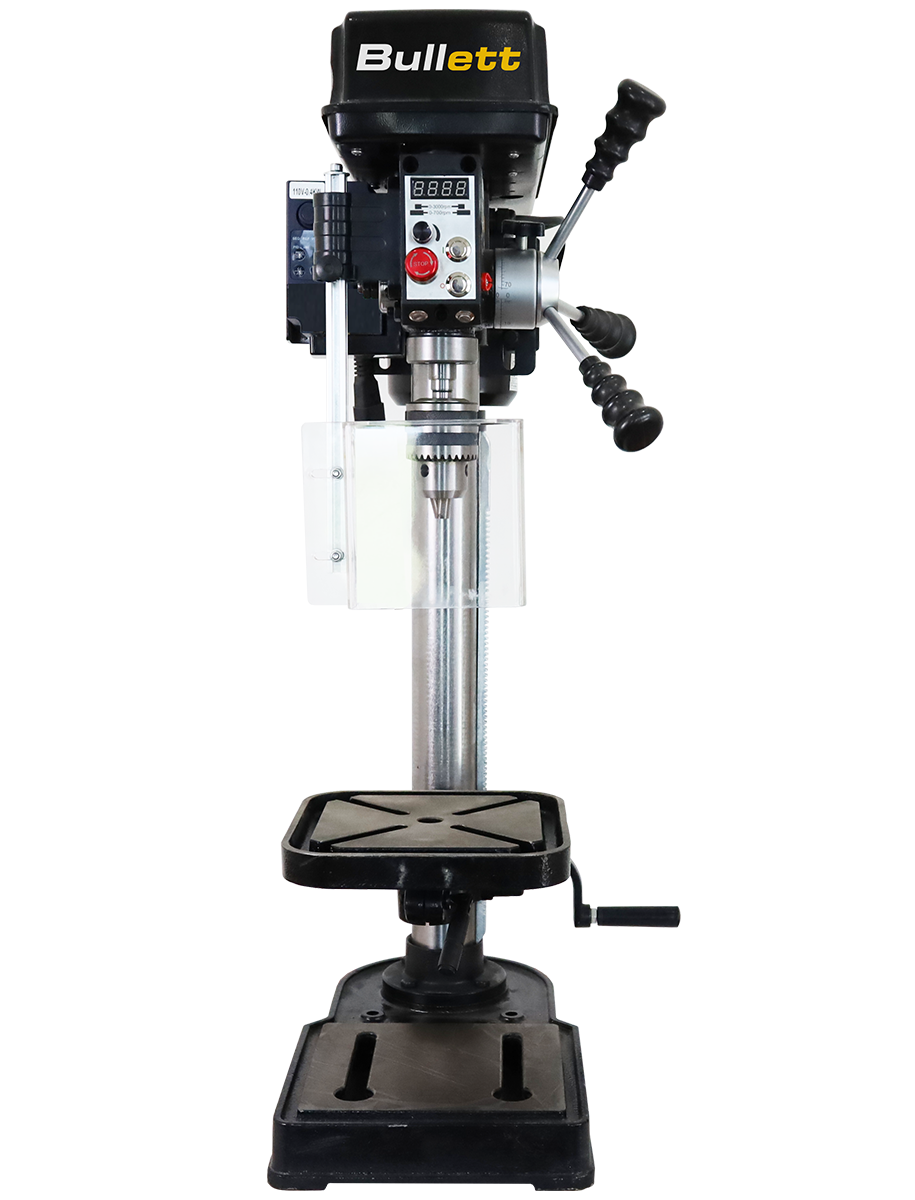

The Bullett CWI-DP016-VFD 10” Bench Model “Esc” Drill Press merges cutting-edge features with top-tier craftsmanship, promising outstanding functionality and reliability.

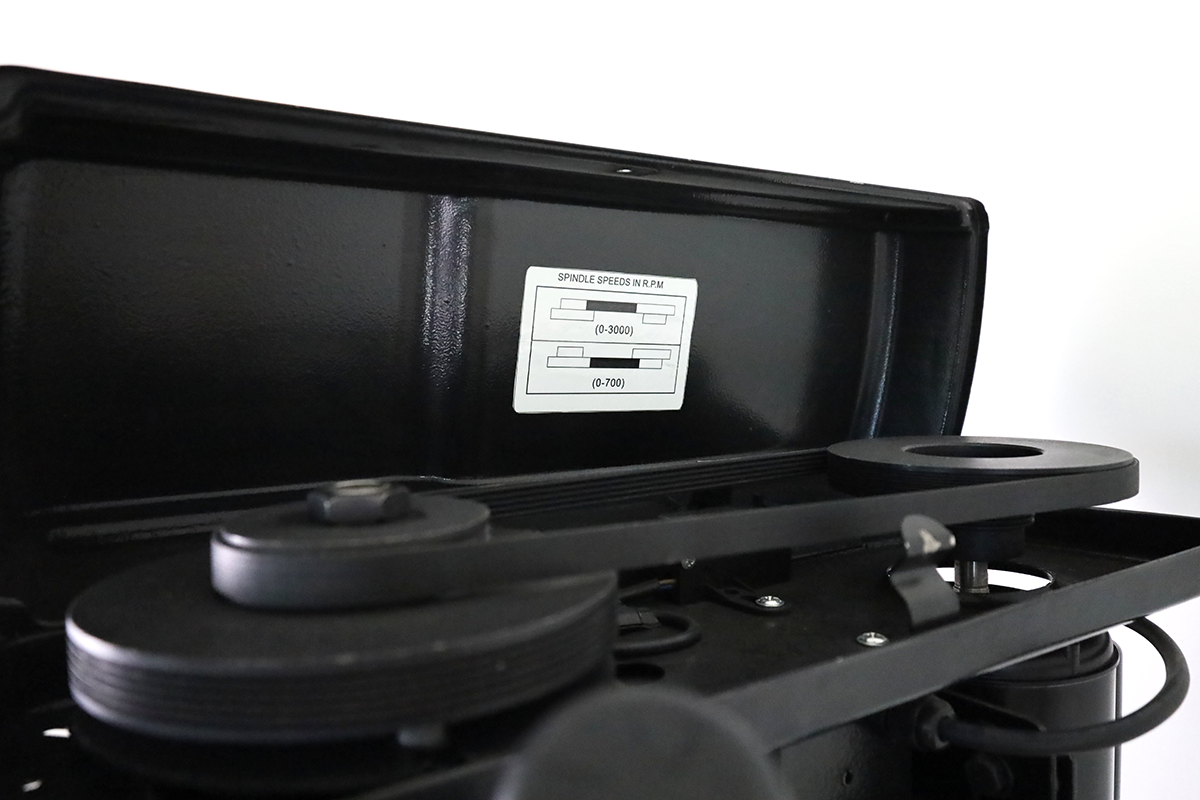

The Bullett CWI-DP016-VFD is equipped with a TEFC 1/2 HP 4.6A 110v single-phase enclosed induction motor, delivering consistent power for all your drilling needs. The integrated Variable Frequency Drive (VFD) inverter technology eliminates the hassle of constant speed belt changes, providing seamless speed adjustments up to 3000rpm without any loss of torque.

Engineered for optimal precision and versatility, this drill press includes a heavy-duty cast-iron table with a convenient rack-lift mechanism. The table can rotate 360 degrees and tilt up to 45 degrees, allowing for a wide range of drilling angles and enhancing its adaptability for various projects. Coupled with a solid cast-iron base, this ensures both stability and accuracy. The 5/8” steel chuck, secured with a #2 Morse taper, fits firmly into the robust quill assembly, providing superior grip and reliability.

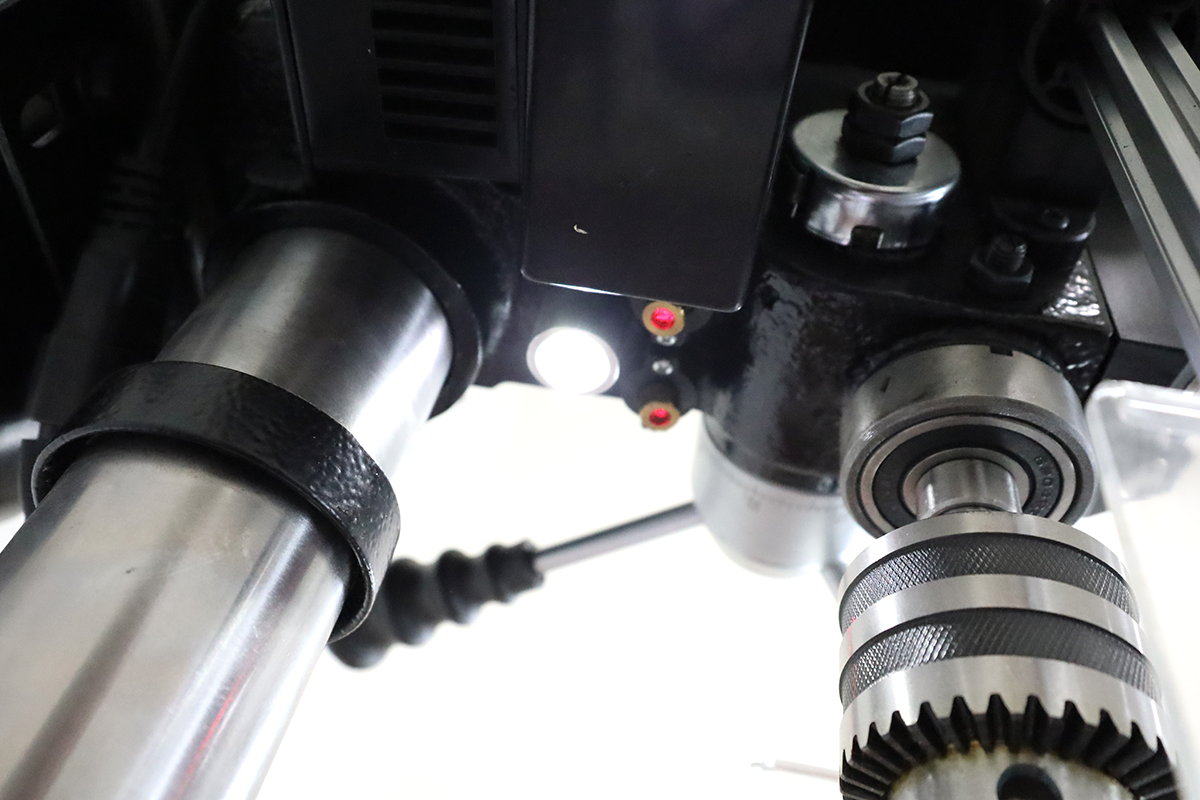

For enhanced visibility, an LED light incorporated into the head of the machine illuminates your workspace, always ensuring clear visibility. This light is integrated into the machine and does not require a separate battery. The built-in dual intersecting adjustable laser guides provide precise alignment, making every drill perfect.

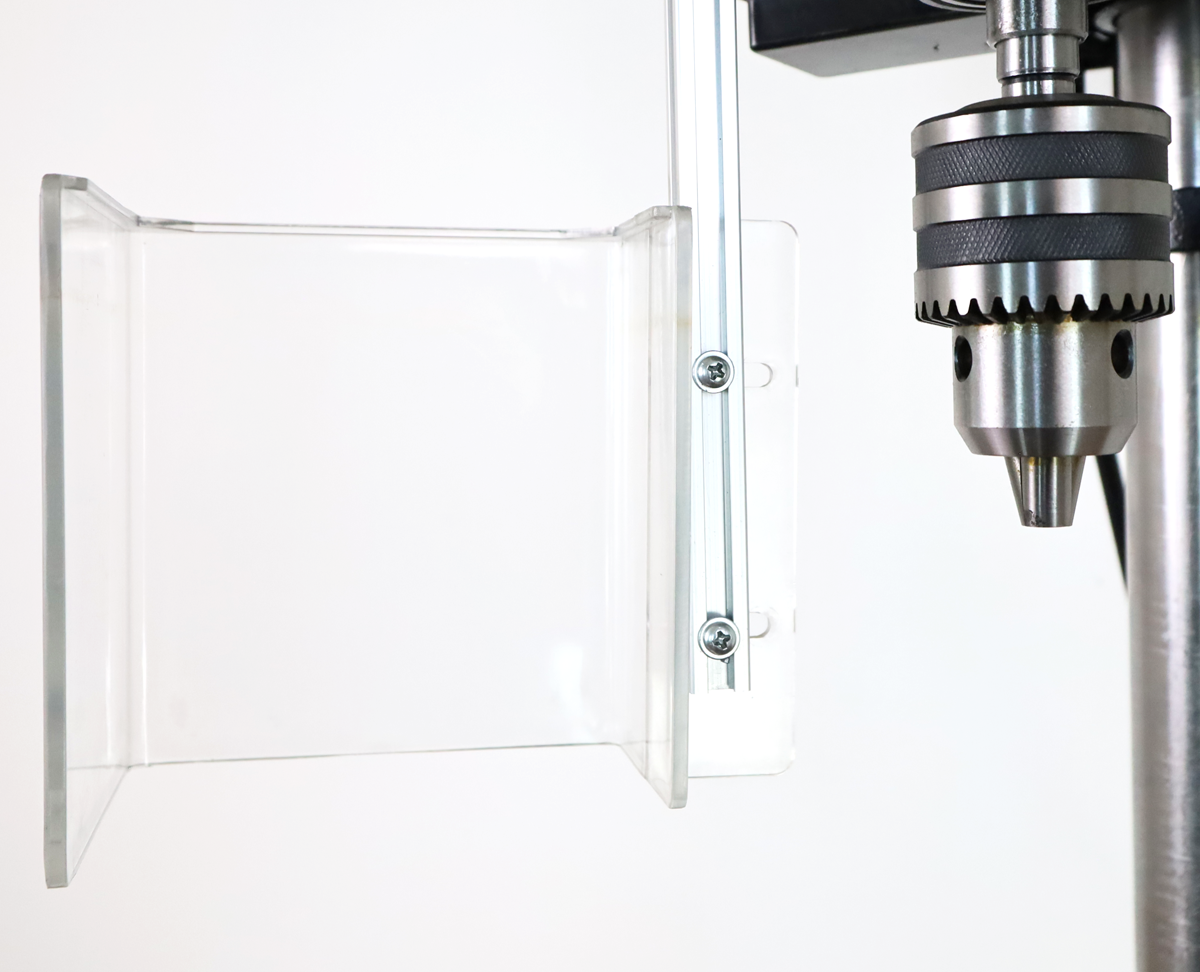

Safety is a top priority with the Bullett CWI-DP016-VFD. A see-through plastic chuck guard is included, which easily flips out of the way for convenient drill bit changes. Additionally, the Magnetic Off Switch ensures the machine can be shut off quickly in case of an emergency, adding an extra layer of protection.

User-friendly features include a 60mm drilling depth stroke, complemented by a solid positive depth stop mechanism that is both easy to use and highly accurate. These thoughtful details make the Bullett CWI-DP016-VFD an ideal choice for any workshop.

Experience the precision, power, and safety of the Bullett CWI-DP016-VFD 10” Bench Model “Esc” Drill Press—an essential addition to any serious workshop.

Specifications:

• Motor: TEFC 1/2 HP 4.6A 110v Single Phase Enclosed Induction Motor

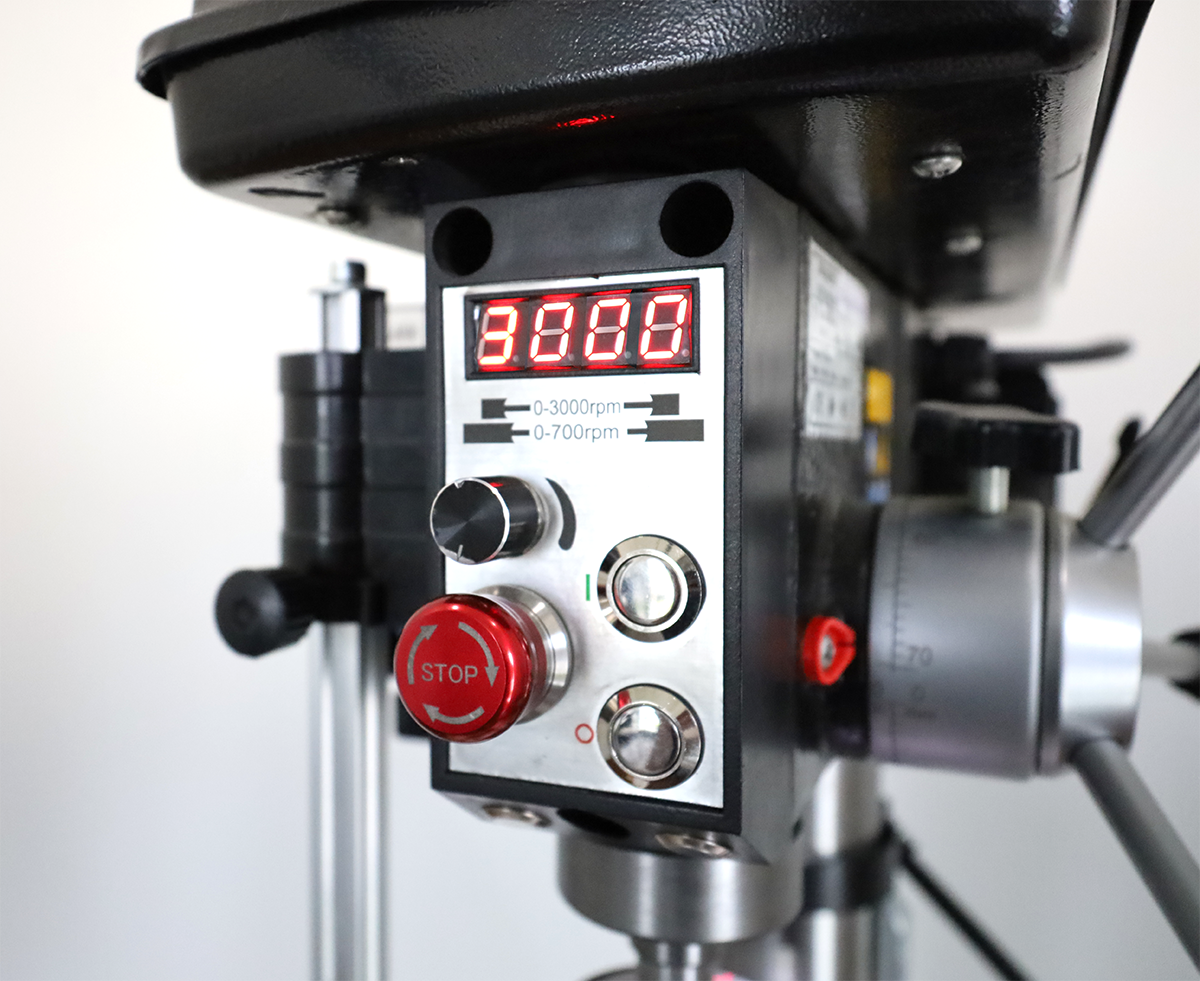

• Speed Control: Variable Frequency Drive Inverter
• Speed Range: Up to 3000rpm
• Table Material: Heavy-duty cast-iron with rack-lift mechanism
• Base Material: Heavy-duty cast-iron
• Illumination: LED light incorporated into the head
• Guides: Built-in dual intersecting adjustable laser guides
• Chuck Size: 5/8” steel chuck
• Mount: #2 Morse taper
• Drilling Depth Stroke: 60mm
• Safety Features: See-through plastic chuck guard, Magnetic Line Interrupter Safety On/Off Switch
• Dimensions: 40cm D x 24cm W x 84.5cm T
• Weight: 35kg / 77lbs
