The Bullett CWI-DP576-VFD 20” Floor Model “Esc” Drill Press, an extremely powerful and versatile machine engineered to meet the needs of professional workshops and demanding woodworkers. With its advanced features, robust construction, and exceptional performance, this all-new flagship drill press from CWI is designed to handle a wide range of drilling applications with precision and ease.

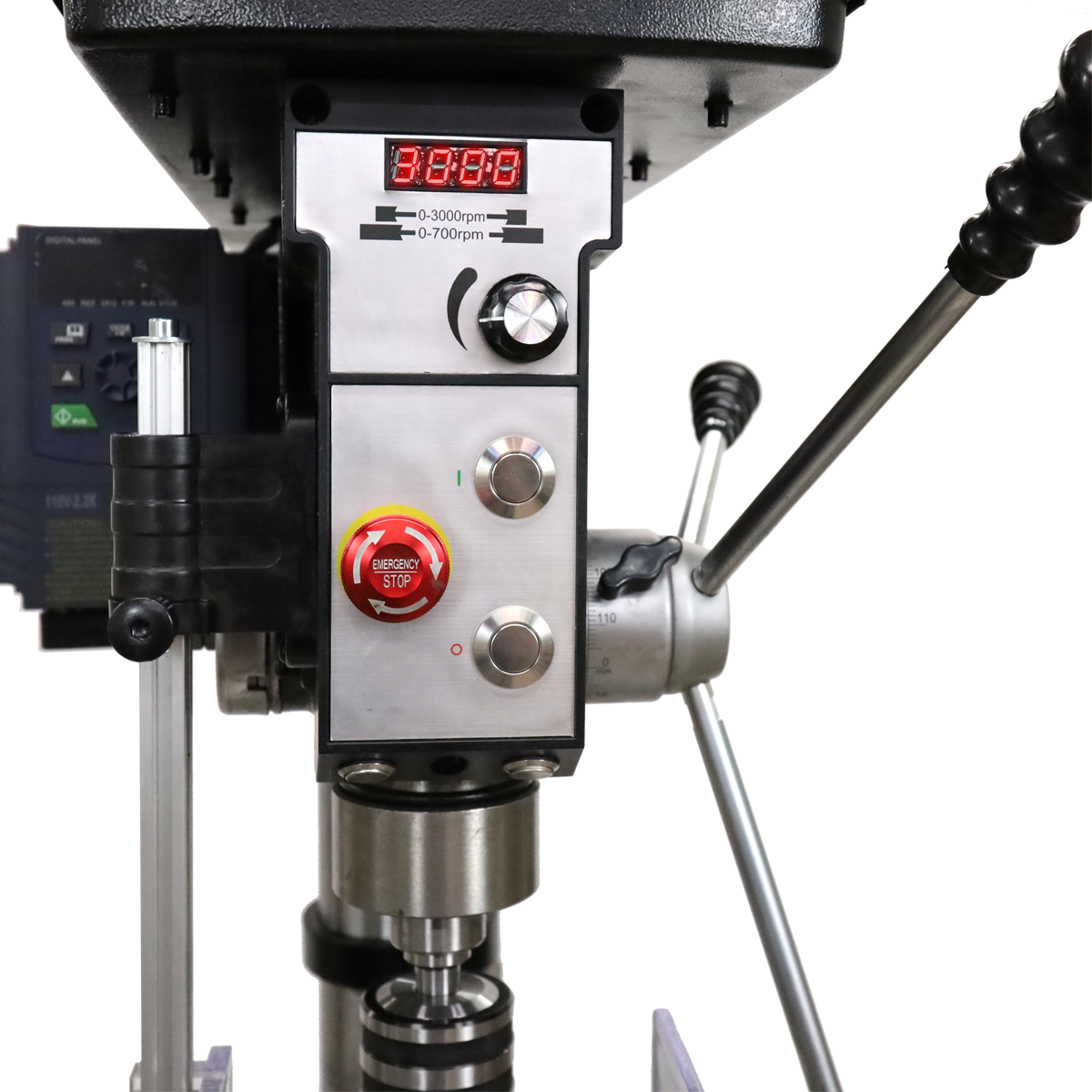

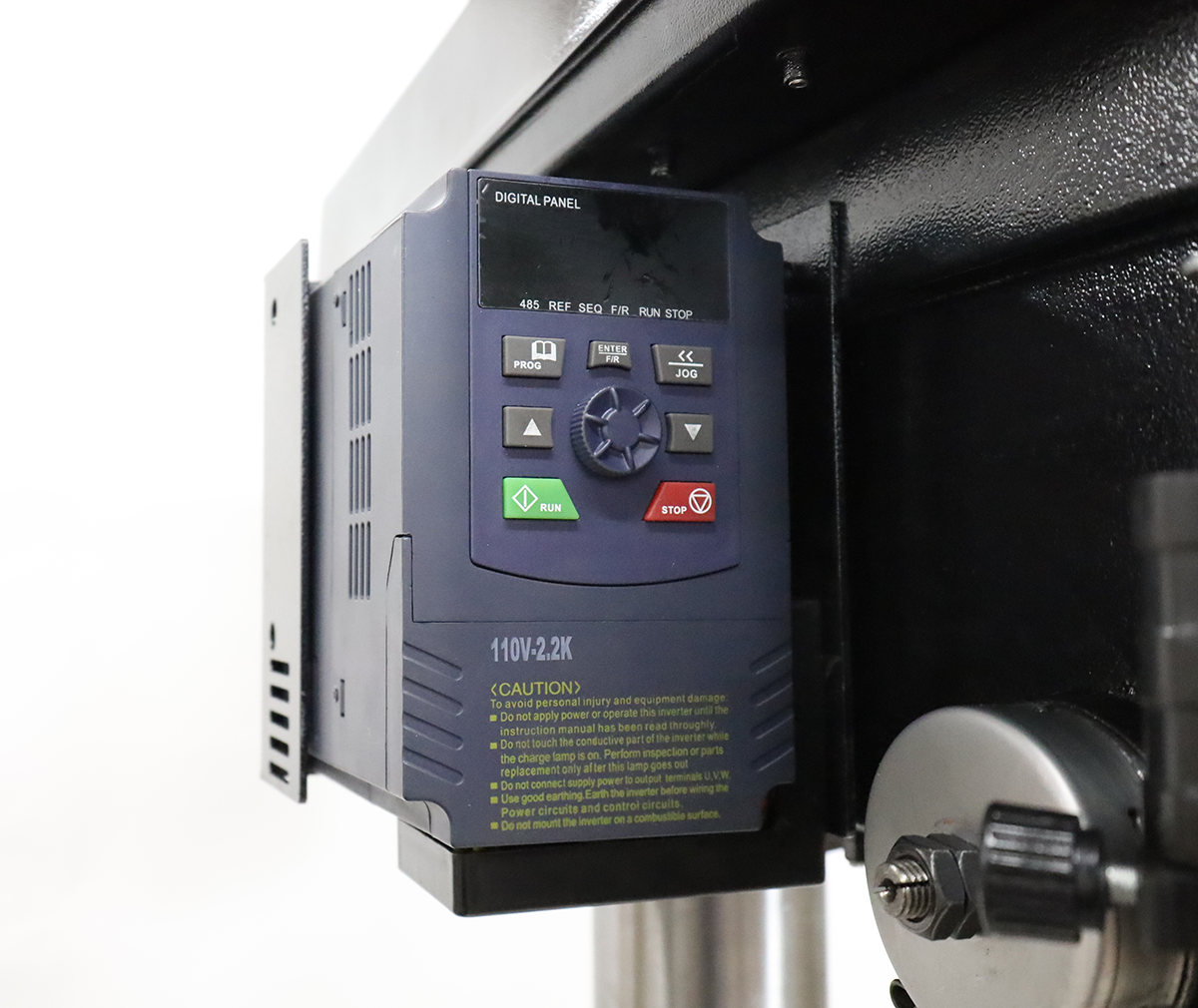

At the heart of the Bullett CWI-DP576-VFD is a TEFC 2 HP 110v single-phase enclosed induction motor, delivering unmatched power and reliability for the most demanding tasks. The Variable Frequency Drive (VFD) inverter provides precise speed control with a range up to 3000rpm, allowing you to adjust the speed to suit different materials and drilling requirements without sacrificing torque.

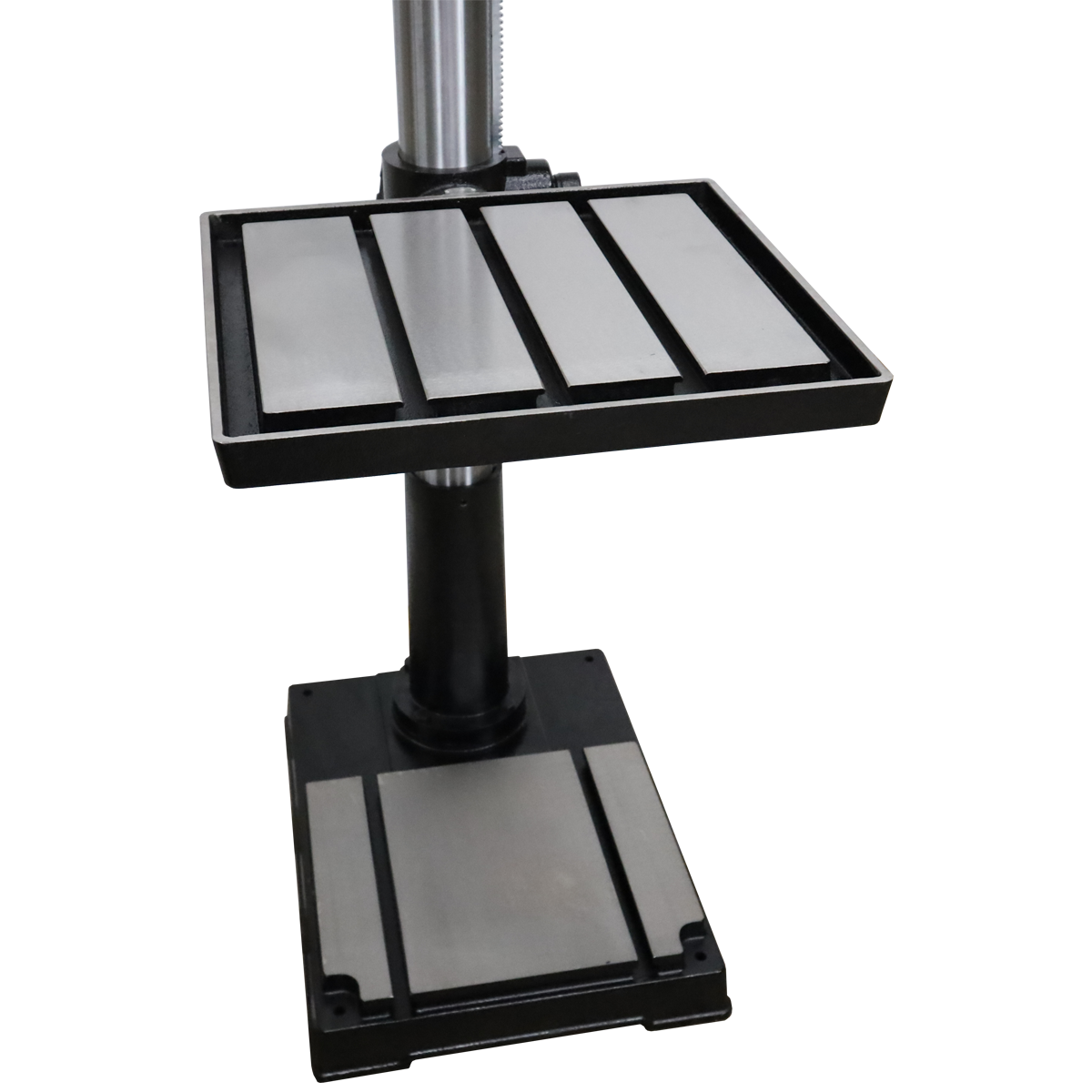

The 18.5″ x 16.5″ table is made of heavy-duty cast-iron, featuring a rack-lift mechanism for easy height adjustments. The table can tilt up to 45 degrees, offering maximum flexibility for various drilling angles and positions. The substantial weight of 111kg (245 lbs) ensures excellent stability and minimizes vibration during operation, contributing to precise and clean drilling results.

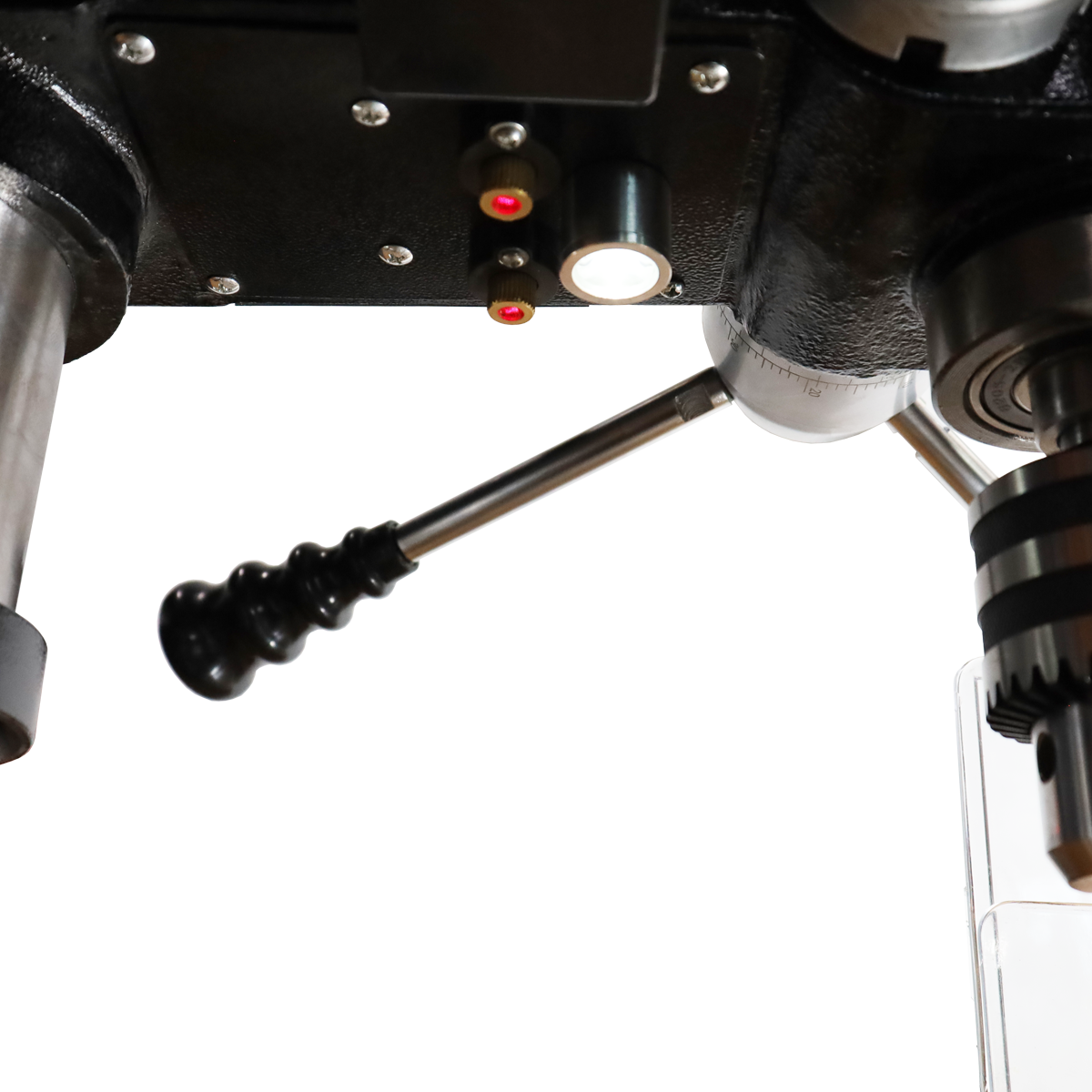

An integrated LED light is incorporated into the head of the drill press, ensuring your workspace is well-lit for better visibility and accuracy. This light is integrated into the machine and does not require a separate battery. The built-in dual intersecting adjustable laser guides enhance precision by clearly indicating the drill point, helping you achieve perfect results with every hole.

The 5/8” steel chuck, with a #3 Morse taper, secures drill bits firmly and allows for efficient drilling. The machine features an impressive 120mm drilling depth stroke with a solid positive depth stop mechanism for precise depth control.

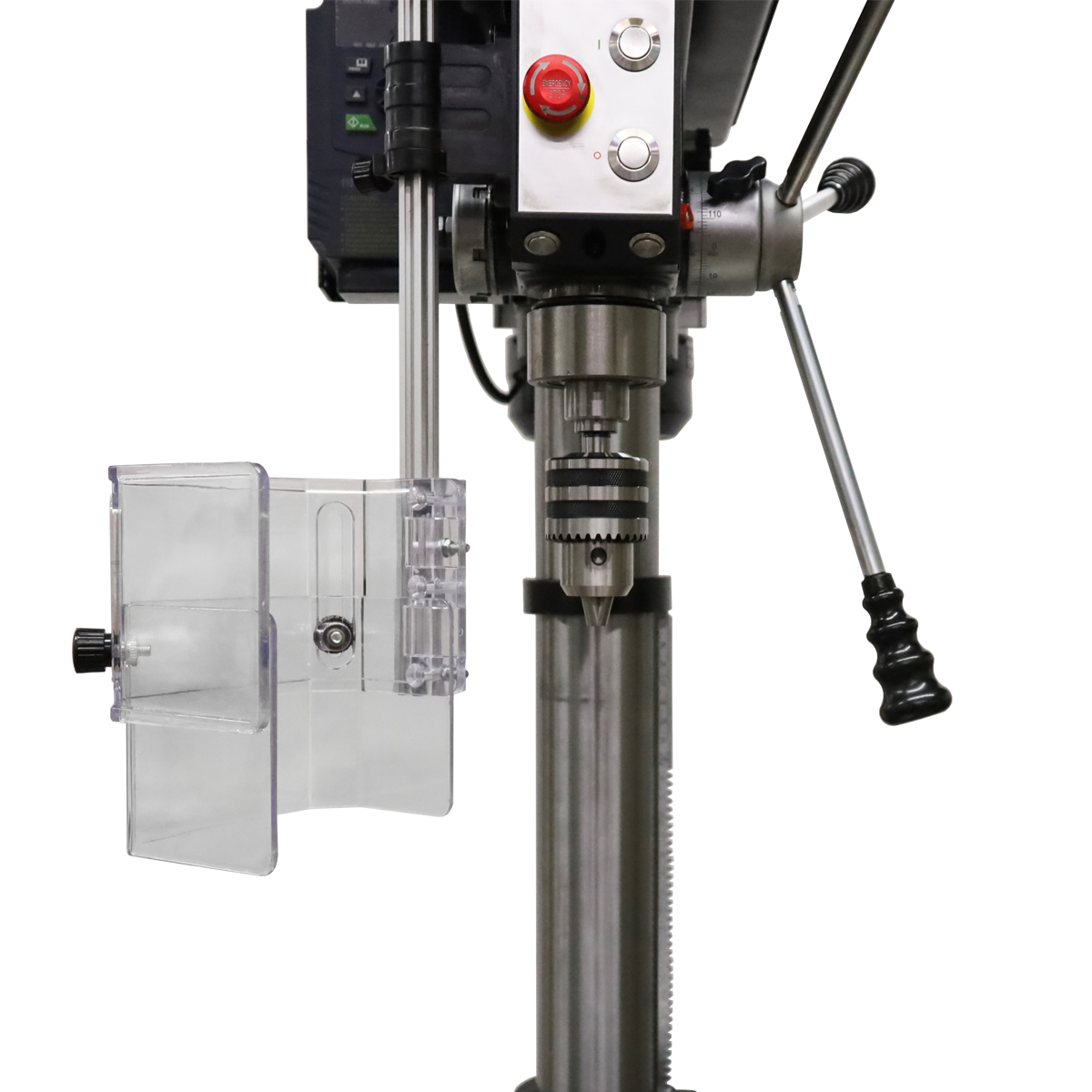

Safety is paramount with the inclusion of a swing-away extendable see-through plastic chuck guard, which provides protection and easily moves aside for quick bit changes. The Magnetic Safety Off Switch adds an extra layer of security, allowing for immediate power shutoff in case of emergencies.

The Bullett CWI-DP576-VFD 20” Floor Model “Esc” Drill Press is designed for a wide range of applications, from heavy-duty woodworking and metalworking to precision crafting and professional tasks. Its variable speed control, flexible table adjustments, and precision guides make it perfect for achieving accurate and consistent results on any project.

Enhance your workshop’s capabilities with the Bullett CWI-DP576-VFD 20” Floor Model “Esc” Drill Press. Combining powerful performance, durable construction, and advanced features, this drill press is an indispensable tool for any craftsman or professional seeking reliability, precision, and versatility in their drilling operations. Experience the superior quality and engineering of Bullett in every project you undertake.

Specifications:

• Motor: TEFC 2 HP 110v Single Phase Enclosed Induction Motor
• Speed Control: Variable Frequency Drive Inverter
• Speed Range: Up to 3000rpm
• Table Material: 18.5″ x 16.5″ Heavy-duty cast-iron with rack-lift mechanism
• Table Tilt: Up to 45 Degrees
• Table Rotation: 360 Degrees
• Base Material: Heavy-duty cast-iron
• Illumination: LED light incorporated into the head
• Guides: Built-in dual intersecting adjustable laser guides
• Chuck Size: 5/8” steel chuck
• Spindle Taper: #3 Morse taper
• Drilling Depth Stroke: 120mm
• Safety Features: Swing-Away see-through plastic chuck guard, Magnetic Safety Off Switch
• Overall Height: 66.5″
• Weight: 111kg / 245 lbs
