Description

CMT high performance solid carbide spirals are engineered for faster feed rates and long cutting life. This upcut spiral bit made of super micrograin carbide formula offers extremely sharp and longer lasting cutting edges. Low helical grind shears material with more efficient chip ejection. The tool works less, runs cooler and out performs the competition. The new low-angle spiral is designed to shear wood cleanly and provide excellent chip ejection. As a result, the tool will run cooler and the cutting edges will last longer The spiral bit produces an excellent finish on the lower side of your workpiece unless being used on a router table or shaper then the upper side of your project will have the cleaner cut. Excellent cutting results and enhanced productivity. CMT manufacture solid carbide spirals with the tightest tolerances in the industry. You won’t find a better performance in tooling.

• Excellent finish on the workpiece lower side with Upward chip ejection (Downward on Router Table Use)
• Premium quality super-micro grain carbide, 2 plus 2 spiral cutting edges
• For cutting, copying, sizing and routing wood products, plastic & laminates
• Fast feed rates with Hand held Routers, Router Tables, CNC Routers
• Also be used with hardwoods and other wood and plastic composites
• Available in 11 sizes

Tool Dimensions:

• 191.001.11 – 1/8″ Diameter…1/2″ Cut length …1/4″ Shank
• 191.003.11 – 5/32″ Diameter…1/2″ Cut length …1/4″ Shank
• 191.005.11 – 3/16″ Diameter…3/4″ Cut length …1/4″ Shank
• 191.007.11 – 1/4″ Diameter… 3/4″ Cut length …1/4″ Shank
• 191.008.11 – 1/4″ Diameter… 1″ Cut length …1/4″ Shank
• 191.008.11B – 1/4″ Diameter… 1″ Cut length …1/4″ Shank (Incl. Double Bearing for Flush Trim Projects)
• 191.503.11 – 3/8″ Diameter… 1 1/4″ Cut length …1/2″ Shank
• 191.505.11 – 1/2″ Diameter… 1 1/4″ Cut length …1/2″ Shank
• 191.506.11 – 1/2″ Diameter… 1 1/2″ Cut length …1/2″ Shank
• 191.507.11 – 1/2″ Diameter… 2″ Cut length …1/2″ Shank

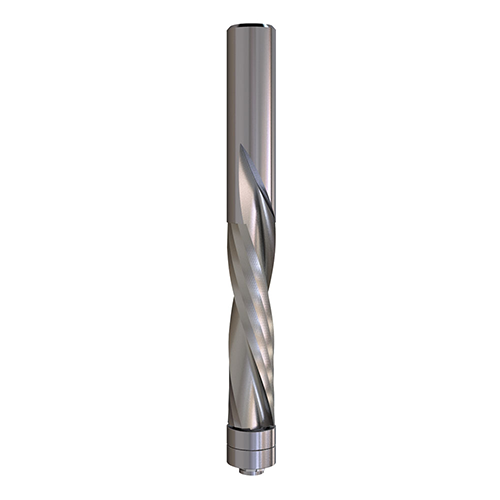

• 191.507.11B – 1/2″ Diameter… 2″ Cut length …1/2″ Shank (Incl. Double Bearing for Flush Trim Projects)
