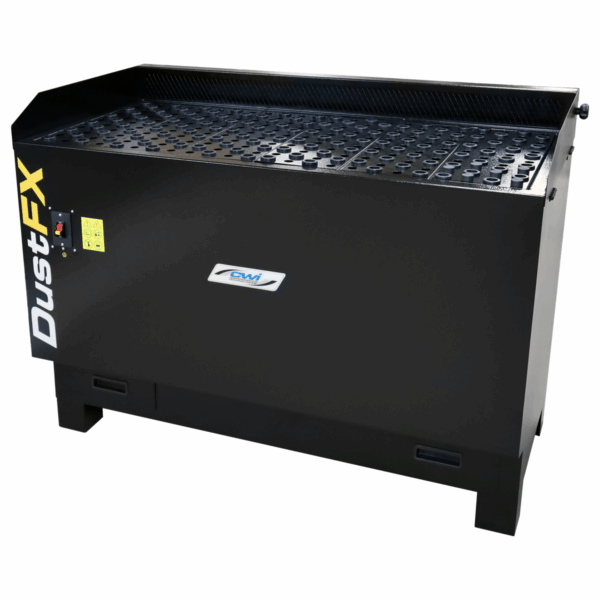

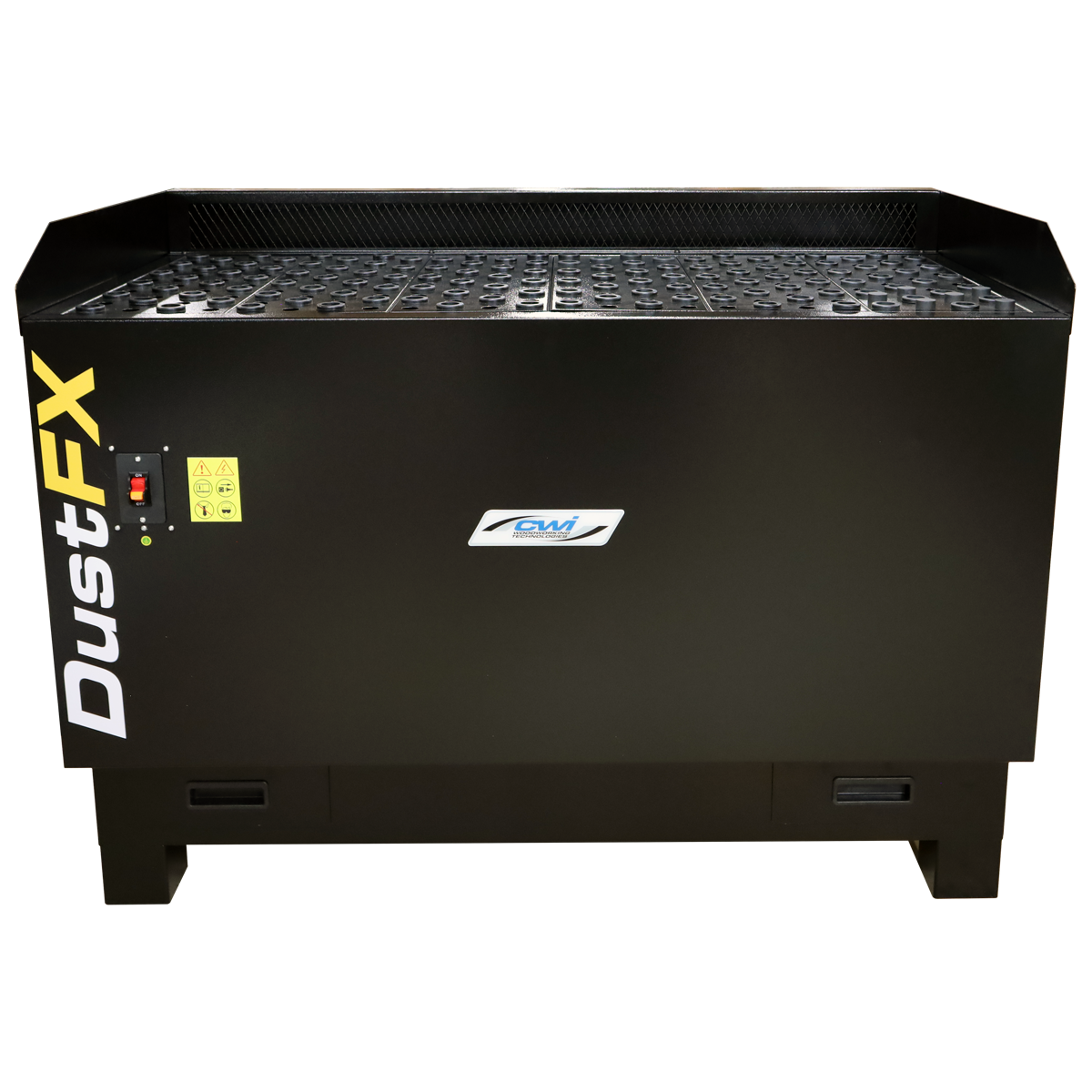

DustFX Deluxe Hepa Down Draft Table

Description

Designed with exceptional dust filtration technology, the DustFX CWI-DC775H Deluxe HEPA Down Draft Table ensures a cleaner, safer workspace during sanding, routing, and other dust-generating applications. Its spacious 48″ x 25″ table size provides ample working space while integrating powerful airflow performance, making it ideal for environments where air quality and cleanliness are critical.

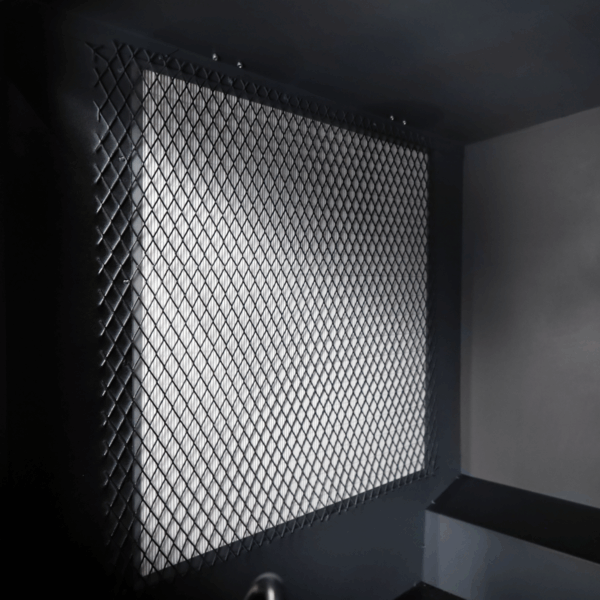

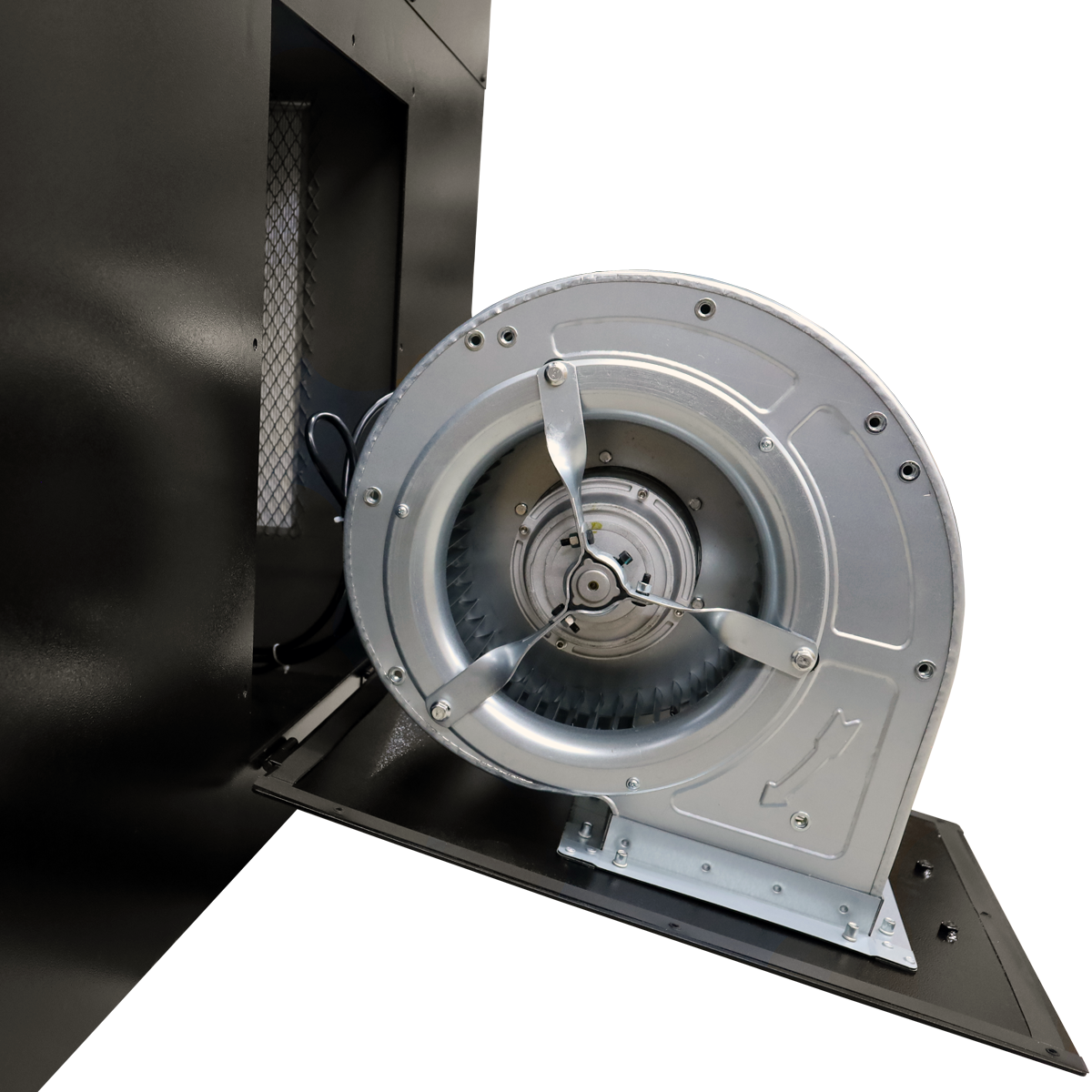

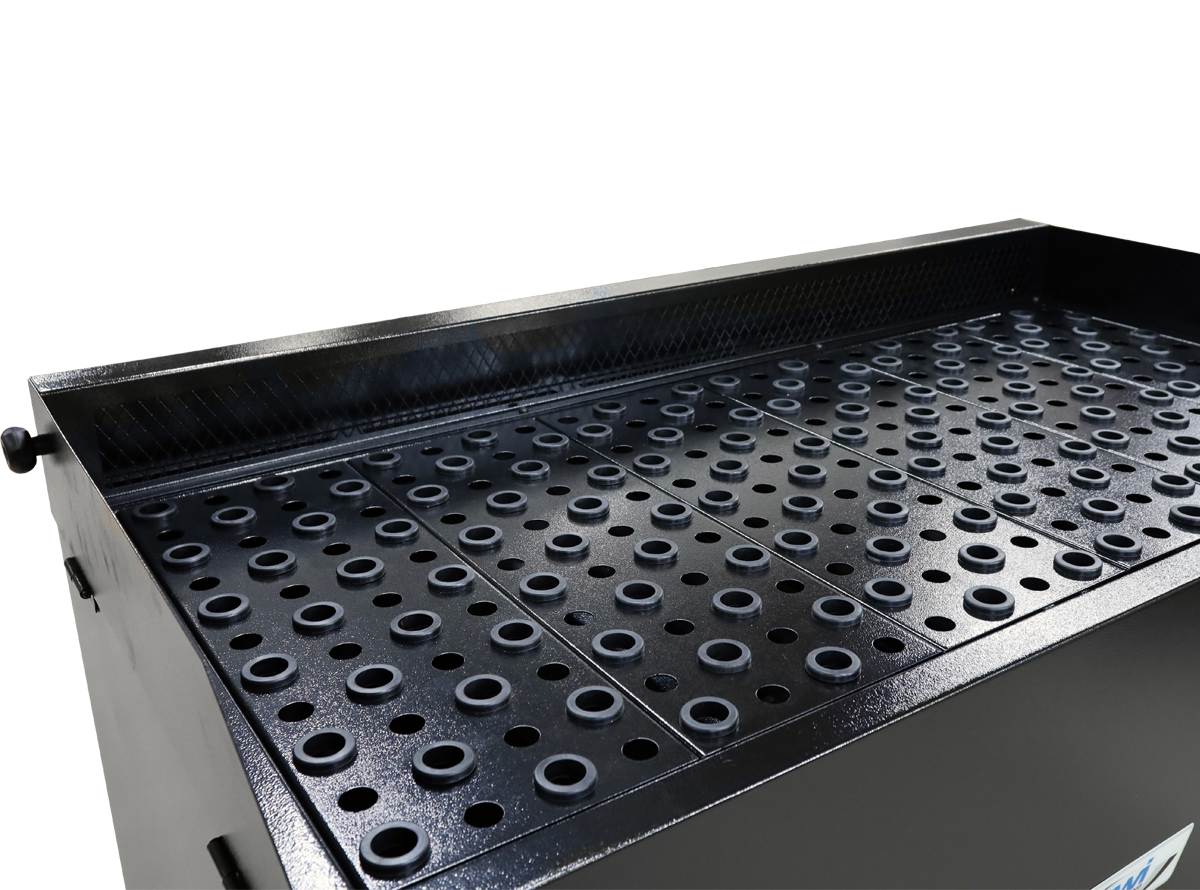

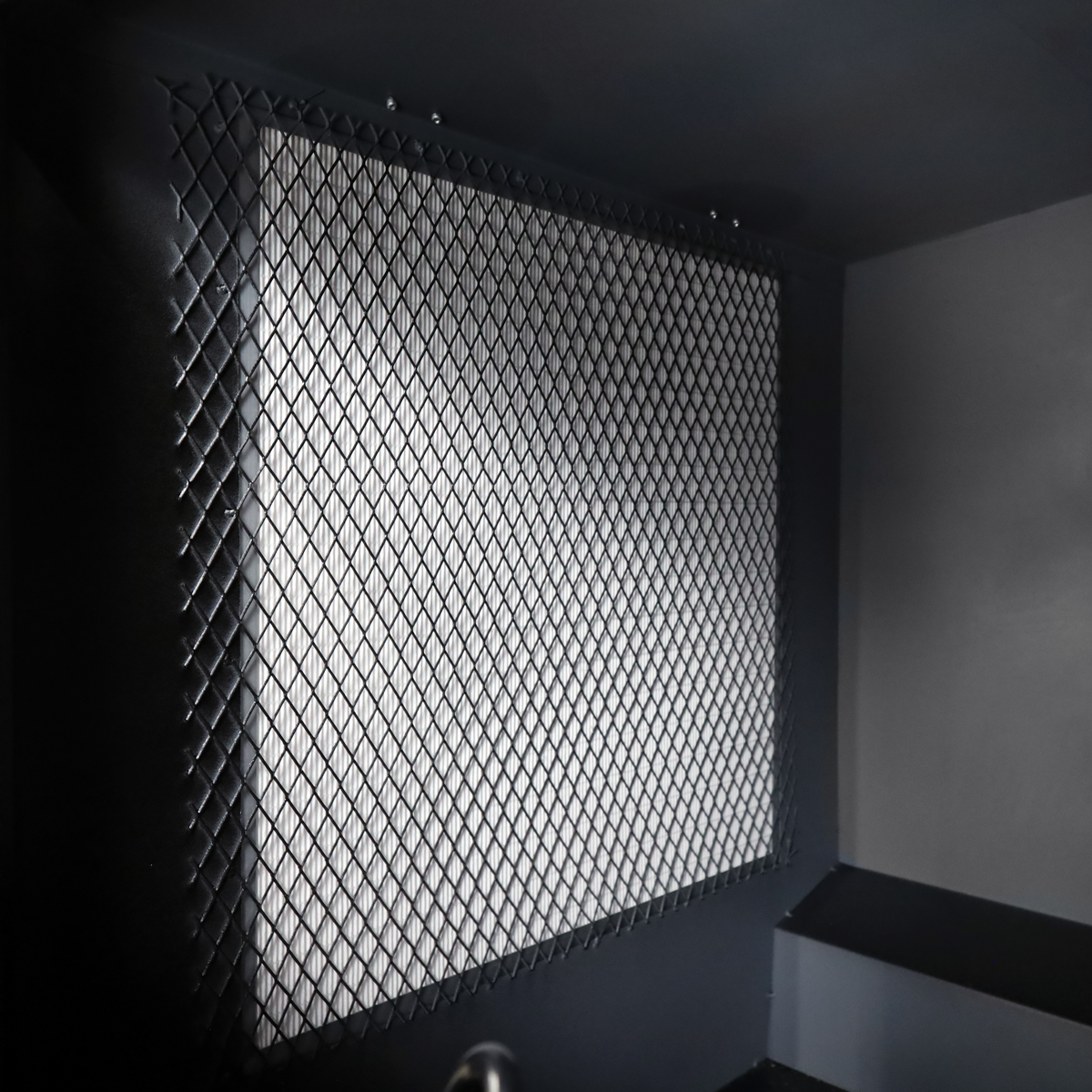

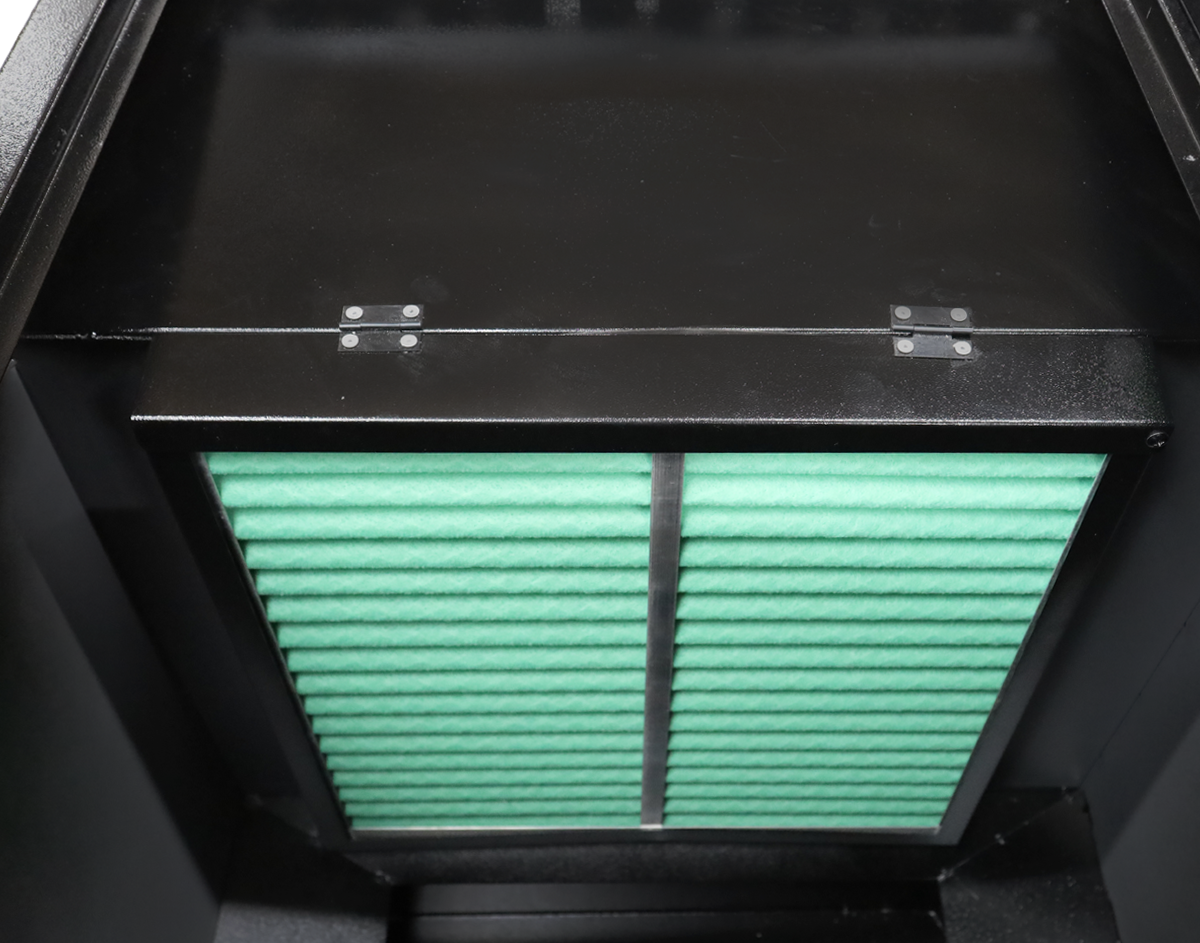

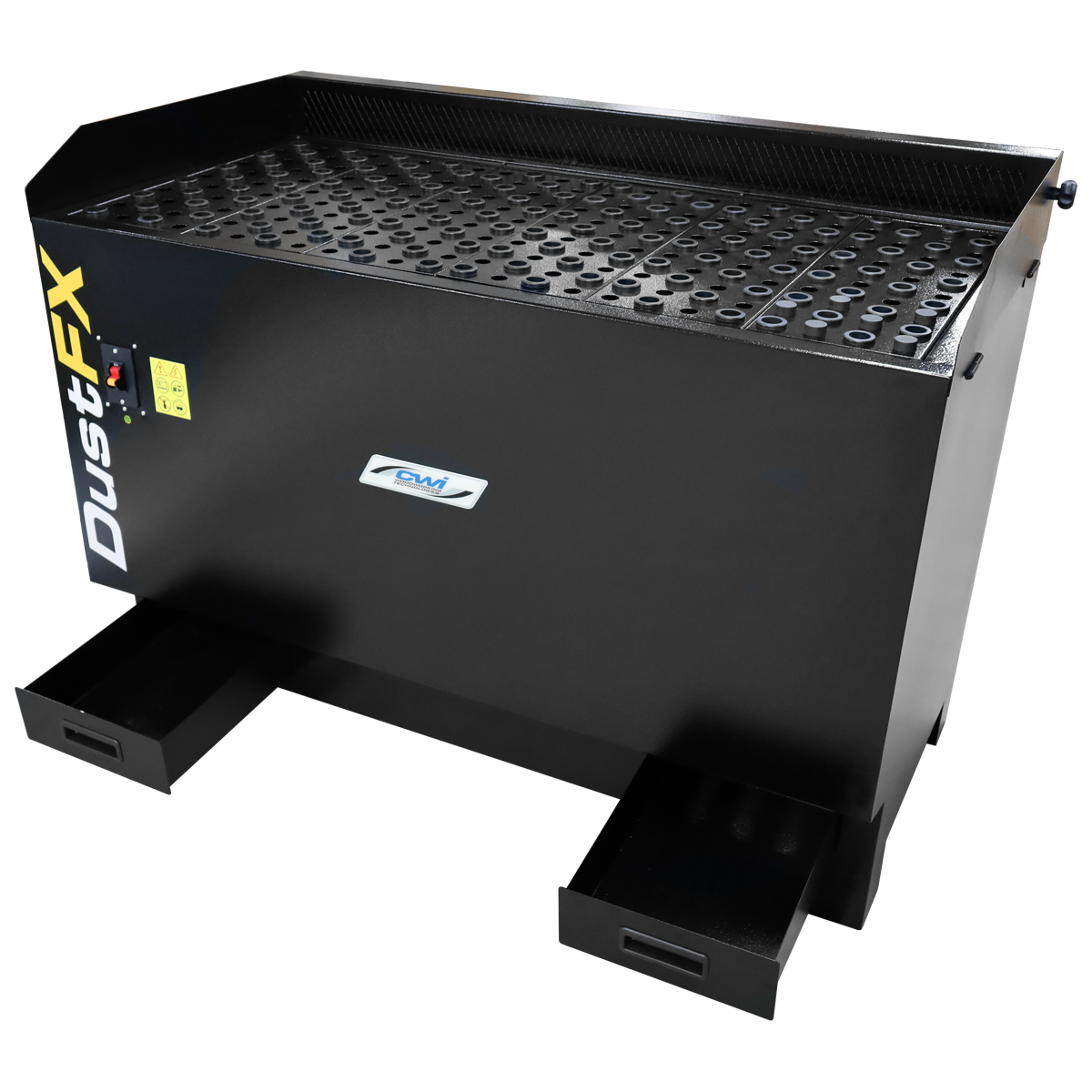

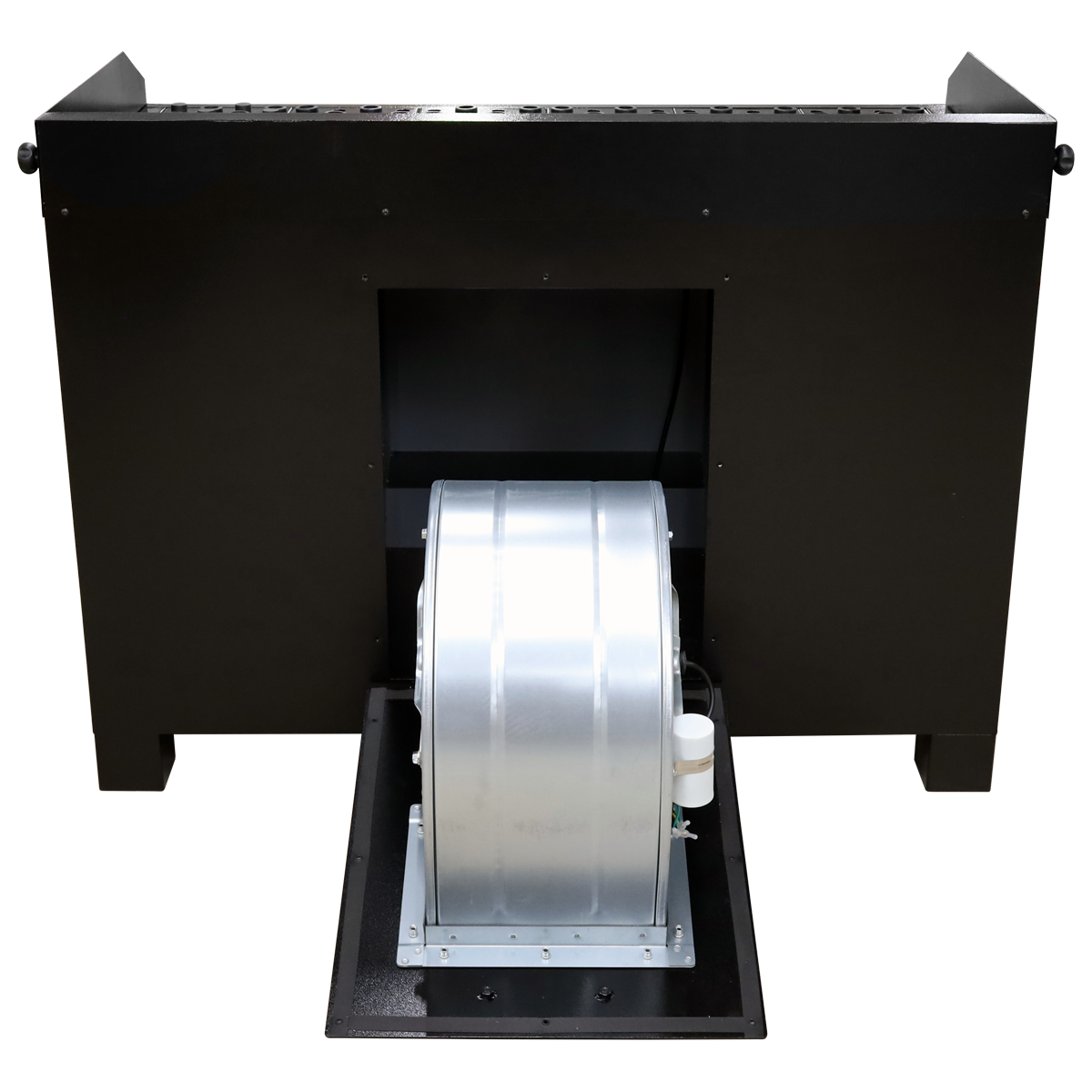

At the core of the CWI-DC775H is a 1.5 HP (1100w) 220V motor driving an 11″ impeller, delivering strong airflow at 2120 CFM (3600m³/h). This robust airflow draws dust down through the perforated table surface as well as a 4” vertical back side port to pull dust from both bottom and back sides of the machine. The machine features a dual-stage filtration system, which includes a G4-rated outer filter and a high-efficiency H13 HEPA filter, capturing even the finest wood dust particles. With the two pull-out dust drawers, routine maintenance and dust disposal are fast and simple, reducing downtime and ensuring maximum performance.

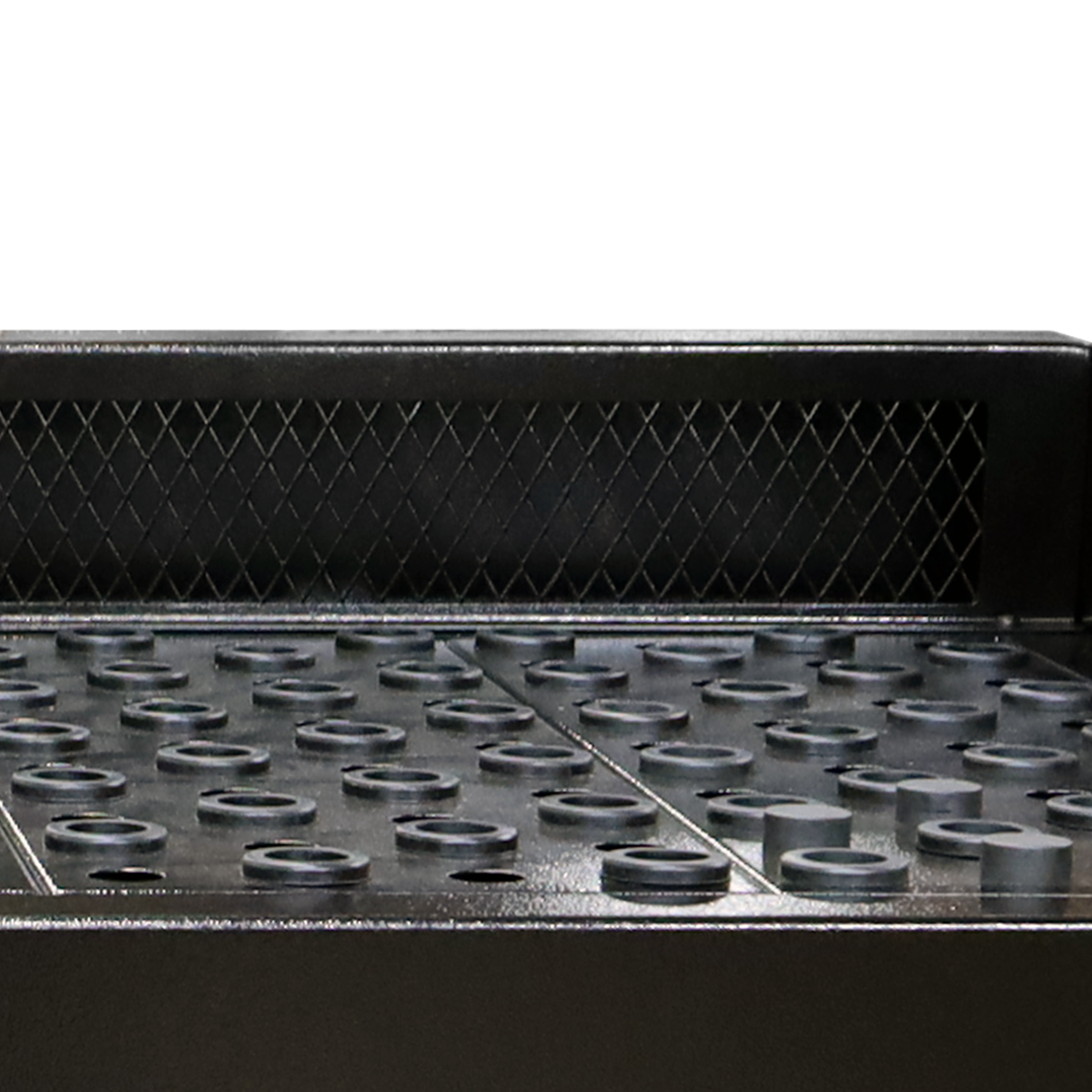

This sanding table features thoughtful design additions to enhance usability and effectiveness. The back-panel vertical suction port aids in capturing dust from handheld tool operations, while the fold-down side walls help contain and direct airborne particles during use with larger or more aggressive tools. Built with CSA-certified electrics, the DustFX CWI-DC775H ensures compliance with industrial safety standards and provides peace of mind for instructors and operators alike.

With a sturdy build weighing 108kg (238 lbs), the CWI-DC775H is a reliable, ready-to-use solution for facilities demanding top-tier dust extraction performance. Whether you’re outfitting a school shop or upgrading your professional workspace, this down draft table delivers durability, filtration excellence, and operational safety in one complete package.

Specifications:

• 2120 CFM
• 1.5 HP (1100w) Motor 220/1/60
• 11″ (280mm) Impeller
• High Performance Dual-Filter HEPA Filtration
• 2 Pull-out Dust Collection Drawers
• Back-Panel Vertical Suction Port
• Fold Down Side Walls to Help Contain Dust
• CSA Electrics
• Table Size: 48″ x 25″
• Machine Weight: 108kg (238 lbs)
• Shipping Weight: 115kg (254 lbs)
• Shipping Dimensions: 50″ x 28″ x 31″
