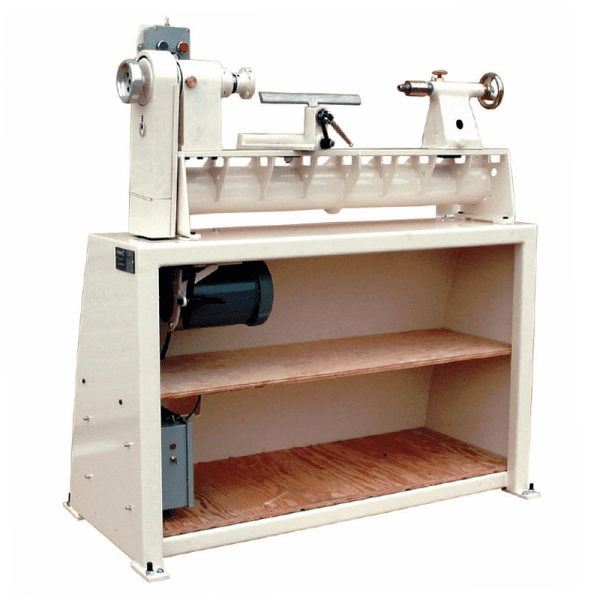

OneWay 1224 Wood Lathe

Description

Note: This item is a special order item only. Freight charges will apply. Inquire for availability.



Features:

• 12½” swing over the bed (9” swing over Banjo) 24” between centers
• 11” Stainless Steel Toolrest with 1” Post
• 2 step pulley (50 – 2000 / 100 – 4000 rpm)
• Two position Control Box
• Spindle is hardened and ground
• Spindle Thread: 1” – 8tpi RH (inboard ¾” – 16tpi RH (outboard)
• 7/16” thru hole (in spindle)
• 24 position indexing
• #2 Morse Taper in headstock & tailstock
• Forward & Reverse with two pre-programmed accel / decel settings
• 110V input, 1HP AC variable speed inverter (drive) with dynamic braking (220V also available)
• 1HP Marathon Motor
• High Performance Powder Paint on Stand & Lathe
• Cast Iron Tailstock with Acme thread & 3” quill travel
• Patented clamping mechanism in Banjo
• Offset Bed for easy clean up

Package Includes:

• #2 MT Safe Driver
• #2 MT Live Center (with cones)
• Knock-out Rod
• Powder Painted Metal Stand (two wood shelves included)
• 3” Steel Faceplate (Powder Painted)
• 11” Stainless Steel Toolrest
• Two location Control Box
• Powder Painted Lathe
• Leveling Pads
• 4mm, 6mm and 8mm Allen Keys
• Spindle Lock Wrench
• Hand Wheel

General Dimensions:

• Spindle Height: 44½”
• Power Input: 110V, Single Phase
• Length x Width: 47 x 23½”
• Bench Height: 30”
• Weight: Approximately 300 lbs.
