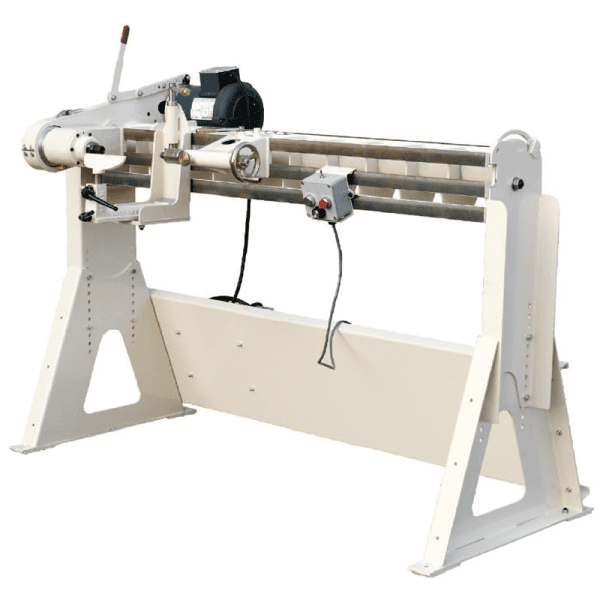

OneWay 1236SD Wood Lathe

Description

Note: This item is a special order item only. Freight charges will apply. Inquire for availability.

It’s not just about the comfort, but certain tasks are easier to perform while sitting. Wouldn’t it be nice to sand, buff, decorate and finish your beautiful turning while sitting? Think about it.

Features:

• 12½” swing over the bed (9” swing over Banjo)
• 36” between centers
• Spindle is hardened and ground
• 1” – 8 tpi RH spindle thread (inboard)
• 7/16” thru hole (in spindle)
• 24 position indexing
• 2 step pulley (0 – 2000 / 0 – 4000rpm)
• #2 Morse Taper in headstock & tailstock
• Forward & Reverse with two pre-programmed accel/ decel settings
• 220V input, 1HP AC variable speed inverter (drive) with dynamic braking (runs on 110 V or 220 V)
• 1HP Marathon Motor
• Multi position Control Box
• High Performance Powder Paint on Stand & Lathe
• Cast Iron Tailstock with Acme thread & 3” quill travel
• Patented clamping mechanism in Banjo

Package Includes:

• #2 MT Safe Driver
• #2 MT Live Center (with cones)
• Knock-out Rod
• 3” Faceplate
• 9” Stainless Steel Toolrest
• 6” Ductile Steel Toolrest
• Leveling Pad
• Spindle Lock Wrench

General Dimensions:

• Spindle Height: Adjustable
• Power Input: 220V, Single Phase; 110 V is optionally available at no extra charge
• Length x Width: 60” x 28”
• Weight: Approximately 500 lbs.
