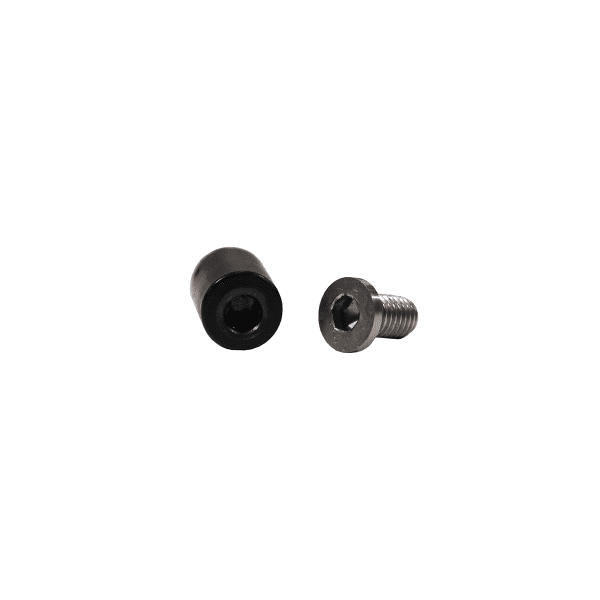

  • Rivolver CWI-WLC2.75-KT Screws

Rivolver 2.75″ 4-Jaw Lathe Chuck & Jaws Kit

Original price was: $299.95.Current price is: $279.95.

This Rivolver 2.75″ 4-jaw wood lathe chuck kit includes the accessories you will need, to handle most woodturning projects.

Out of stock

UPC: 754000097972 SKU: CWI-WLC2.75-KT Categories: , Tag:
Shop Rivolver Woodturning Tools and Wood Lathes at Canadian Woodworker

Description

CWI-WLC2.75-KT

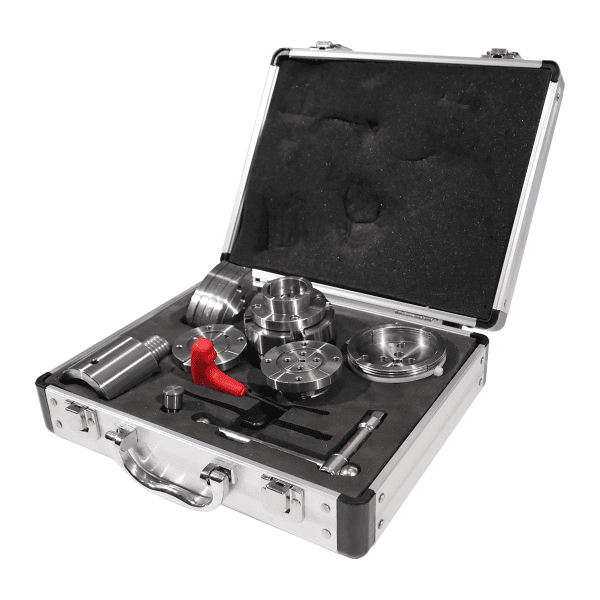

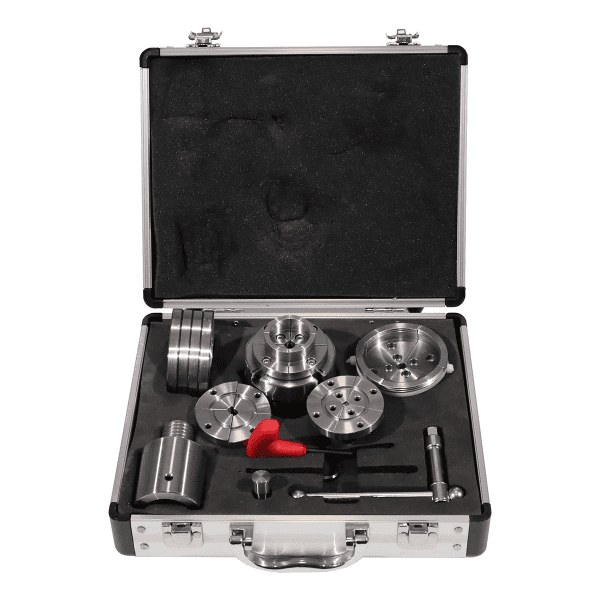

This Rivolver 2.75″ 4-jaw wood lathe chuck kit includes the accessories you will need, to handle most woodturning projects. The kit includes the Rivolver 2.75″ 4-jaw chuck with 1″ – 8tpi threads (adaptors for other sizes available) as well as the following accessories:

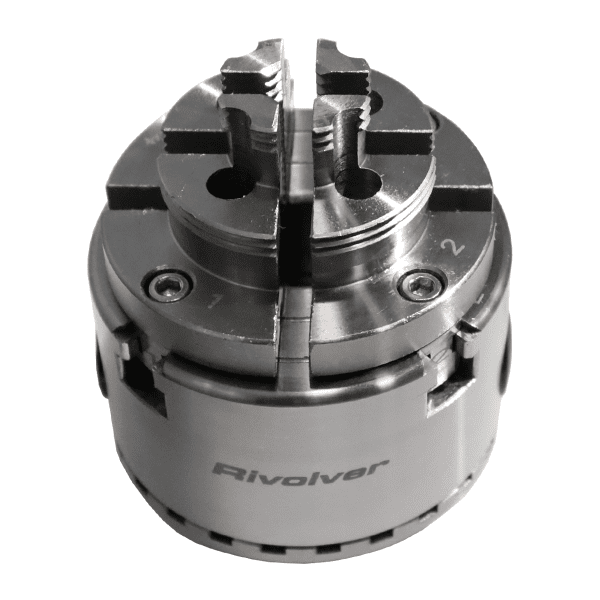

  • Step Jaws – have a serrated edge both internally and externally. They give great flexibility by combining standard sized dovetail jaws and pin jaws

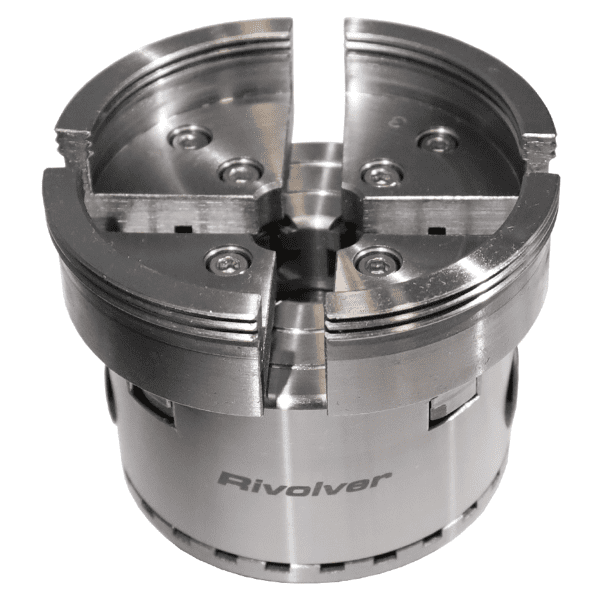

  • Wide Jaws – have a serrated edge both internally and externally and can grip much larger pieces than the standard jaws.

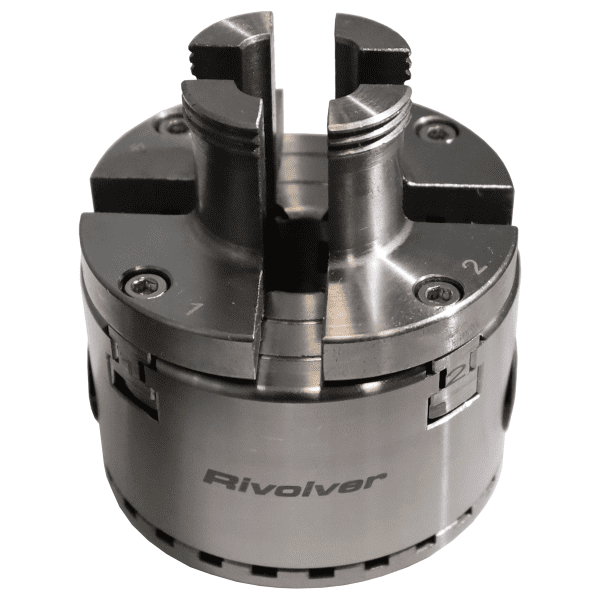

  • Pin Jaws – allow smaller pieces to held than the dovetail jaws. The inside is smooth and parallel, the outside is serrated for maximum grip.

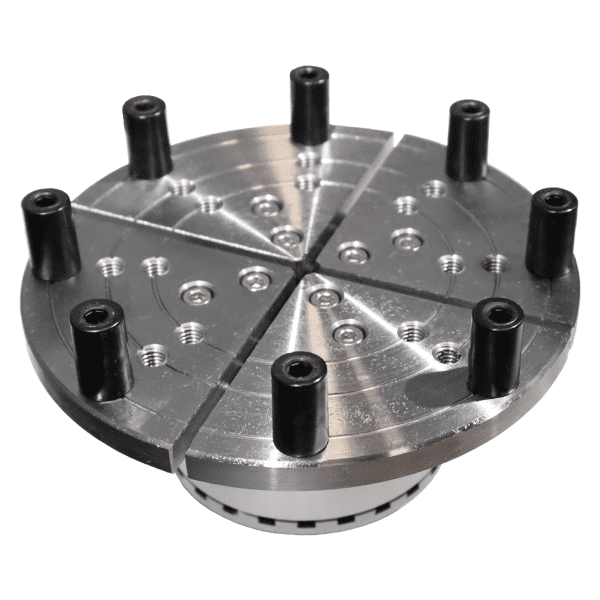

  • 5″ Flat Jaws – are most commonly used for remounting finished bowls to re-shape the outside or to remove unwanted marks. Comes with 2 sets of 8 rubber coated fittings, 13mm & 17mm long to hold the work .
  • Dovetail Jaws – can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned from 41 – 80mm in size
  • Woodworm screw – for temporary mounting of bowls

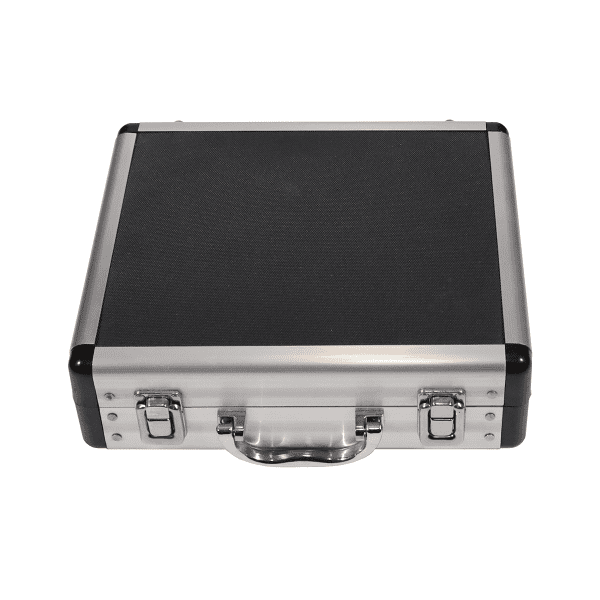

  • Aluminum Carry Case

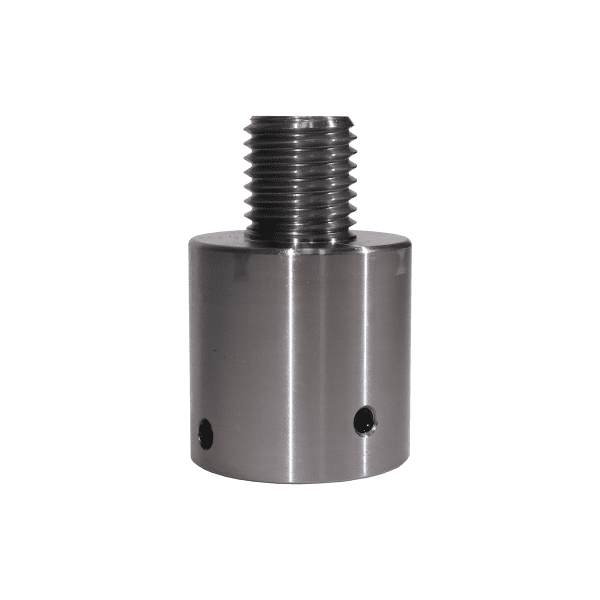

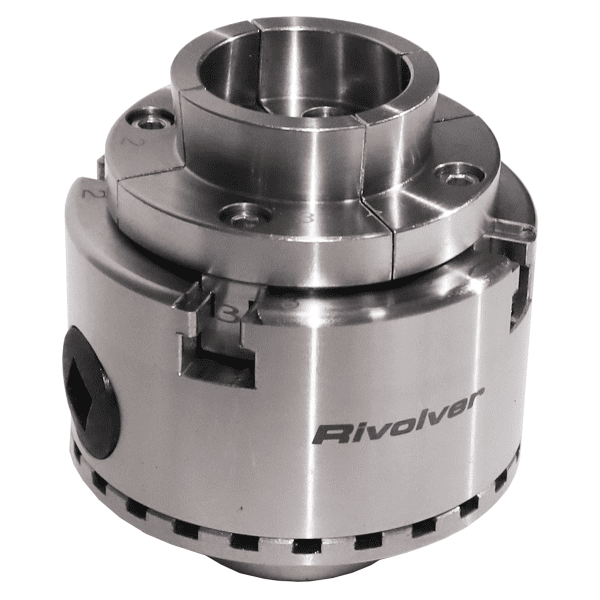

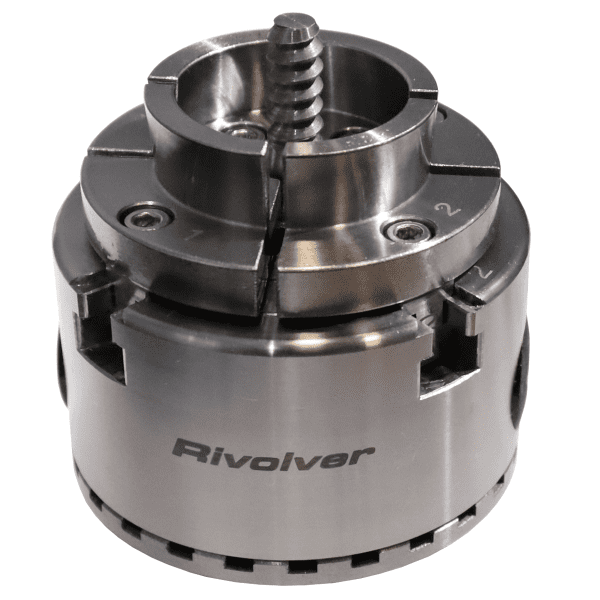

The Rivolver 2.75″ four jaw wood lathe chuck has a nickel-plated body, case-hardened and coated with a dry, long-lasting lubricant. Precisely made, the chuck body typically has less than 0.001″ of runout and less than 0.005″ with the jaws mounted. The WLC2.75 is standard with 1″ x 8 tpi threads but can be easily used with adaptors for other lathe thread sizes. This 2.75″ chuck is perfect for 8″ to 14″ swing wood lathes.

See the list for Popular Lathe Brands and headstock thread size:

  • Beaver: 7/8″ x 14 tpi,
  • Craftsman and Coronet: 3/4″ x 16 tpi,
  • Rikon, Delta and General 160, 25-200: 1″ x 8 tpi,
  • General 260, 25-650: 1 1/4″ x 8 tpi,
  • Shopsmith: 5/8″ plain
  • Rivolver WL200, WL125, WL225, WL325 WL1″ x 8tpi
  • Rivolver WL650, WL825 1 1/4″ x 8tpi
  • Laguna Revo 12/16 1″ x 8tpi
  • Laguna 15″ and larger 1 1/4″ x 8tpi

Additional information

Weight 4.2 kg
Dimensions 30 × 30 × 14 cm
