CWI-WLC2.75

The Rivolver 2.75″ four jaw wood lathe chuck has a nickel-plated body, case-hardened and coated with a dry, long-lasting lubricant. Precisely made, the chuck body typically has less than 0.001″ of runout and less than 0.005″ with the jaws mounted. The Rivolver WLC2.75 four jaw chuck comes standard with a set of 2″ dovetail jaws but can be outfitted with a large assortment of jaws in different sizes which can be utilized on round or square stock. The WLC2.75 is standard with 1″ x 8 tpi threads but adaptors are available for other thread sizes. The 2.75″ size is perfect for use on 8″ to 14″ swing wood lathes.

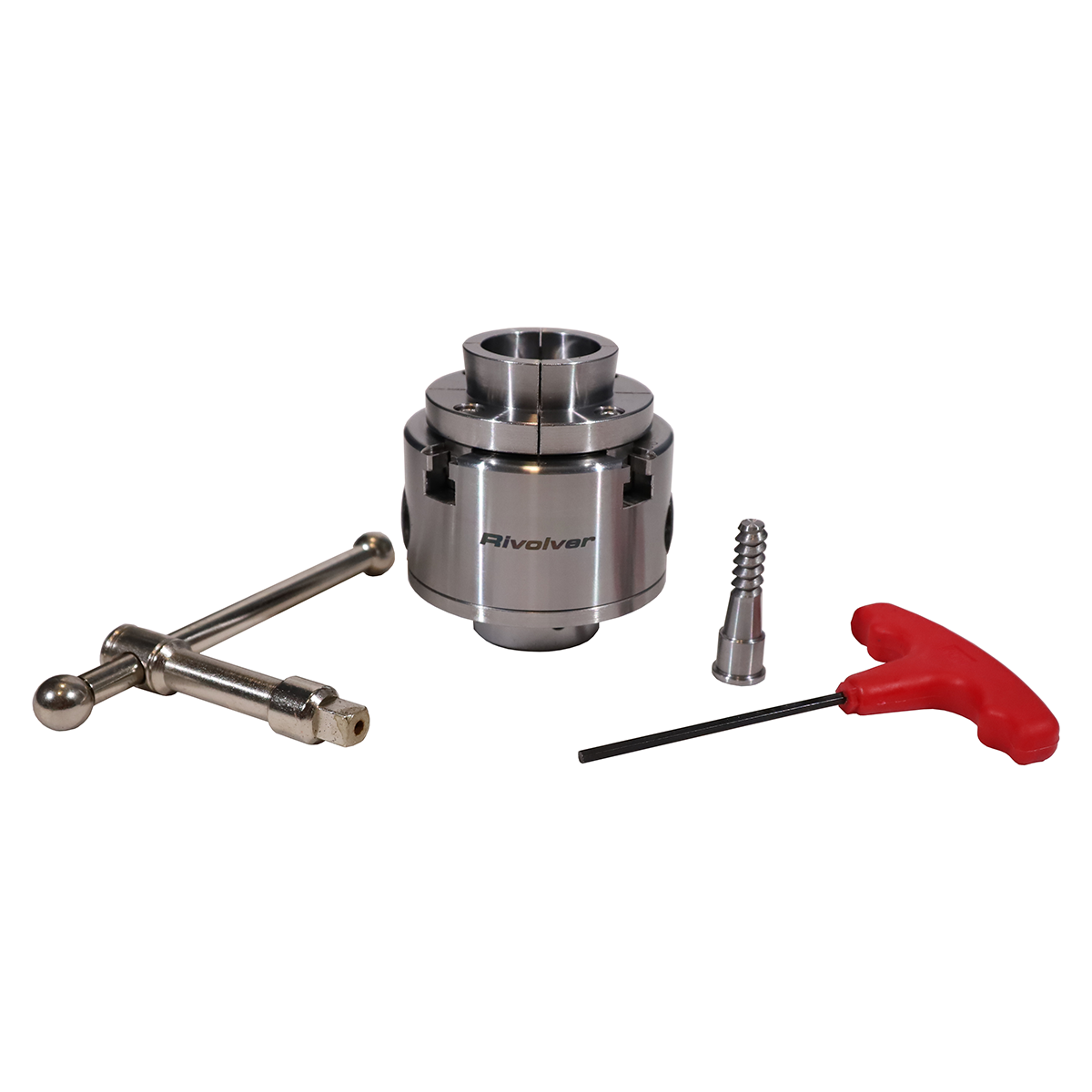

This chuck includes standard 1″ x 8tpi thread size, a woodworm screw, a #2 jaw set, the square chuck key and a hex key. The Rivolver WLC 2.75 chuck is also available in a full kit of various size jaws and carry case part number CWI-WLC2.75-KT.

See the list for Popular Lathe Brands and headstock thread size:

• Beaver: 7/8″ x 14 tpi,
• Craftsman and Coronet: 3/4″ x 16 tpi,
• Rikon, Delta and General 160, 25-200: 1″ x 8 tpi,
• General 260, 25-650: 1 1/4″ x 8 tpi,
• Shopsmith: 5/8″ plain
• Rivolver WL200, WL125, WL225, WL325 WL1″ x 8tpi
• Rivolver WL650, WL825 1 1/4″ x 8tpi
• Laguna Revo 12/16 1″ x 8tpi
• Laguna 15″ and larger 1 1/4″ x 8tpi
