CWI-WLC3.75-KT

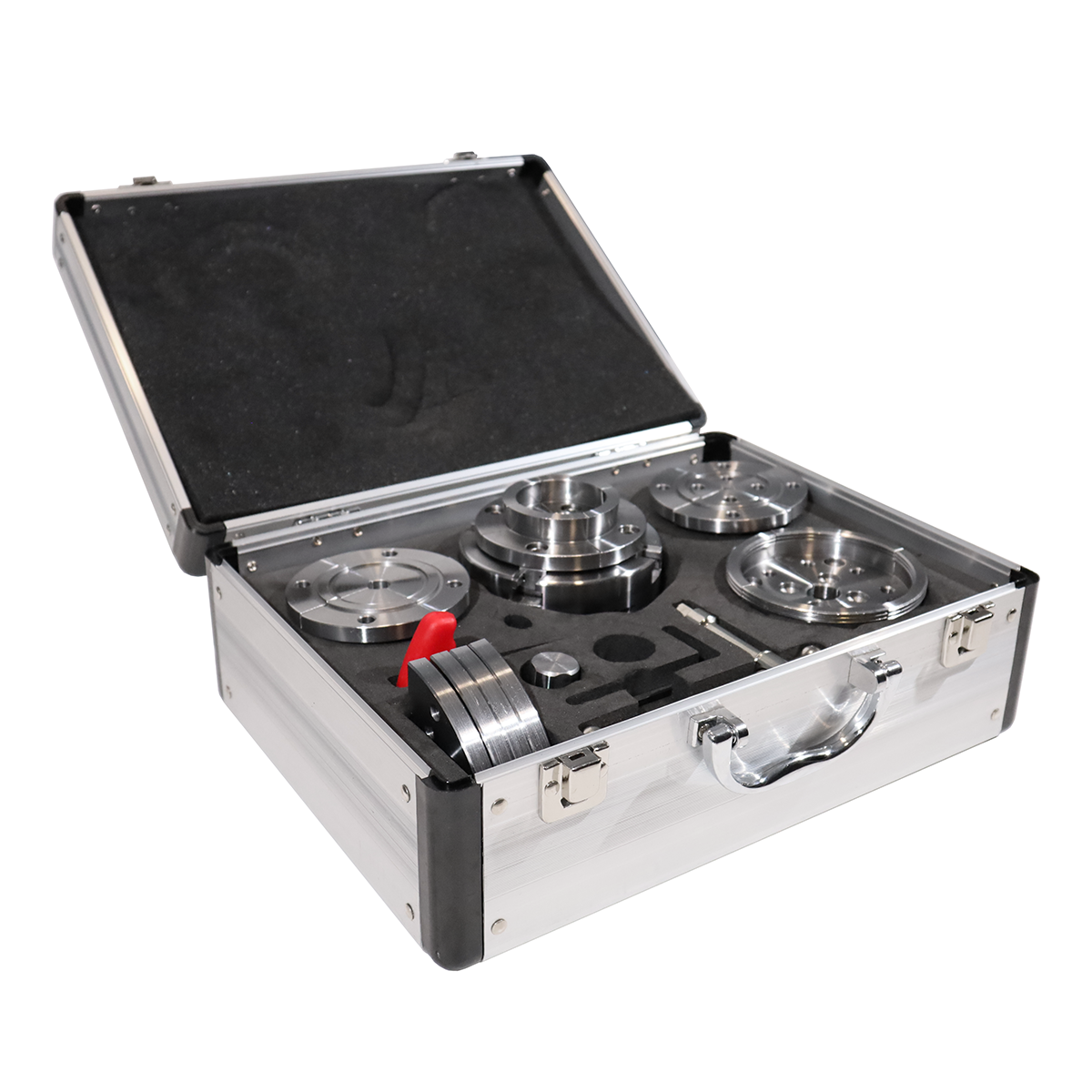

This Rivolver 4-jaw wood lathe chuck kit includes the accessories you will need to handle most woodturning projects. The kit includes the Rivolver 3.75″ 4-jaw chuck with 1″ – 8tpi threads (adaptors for other sizes available) as well as the following accessories:

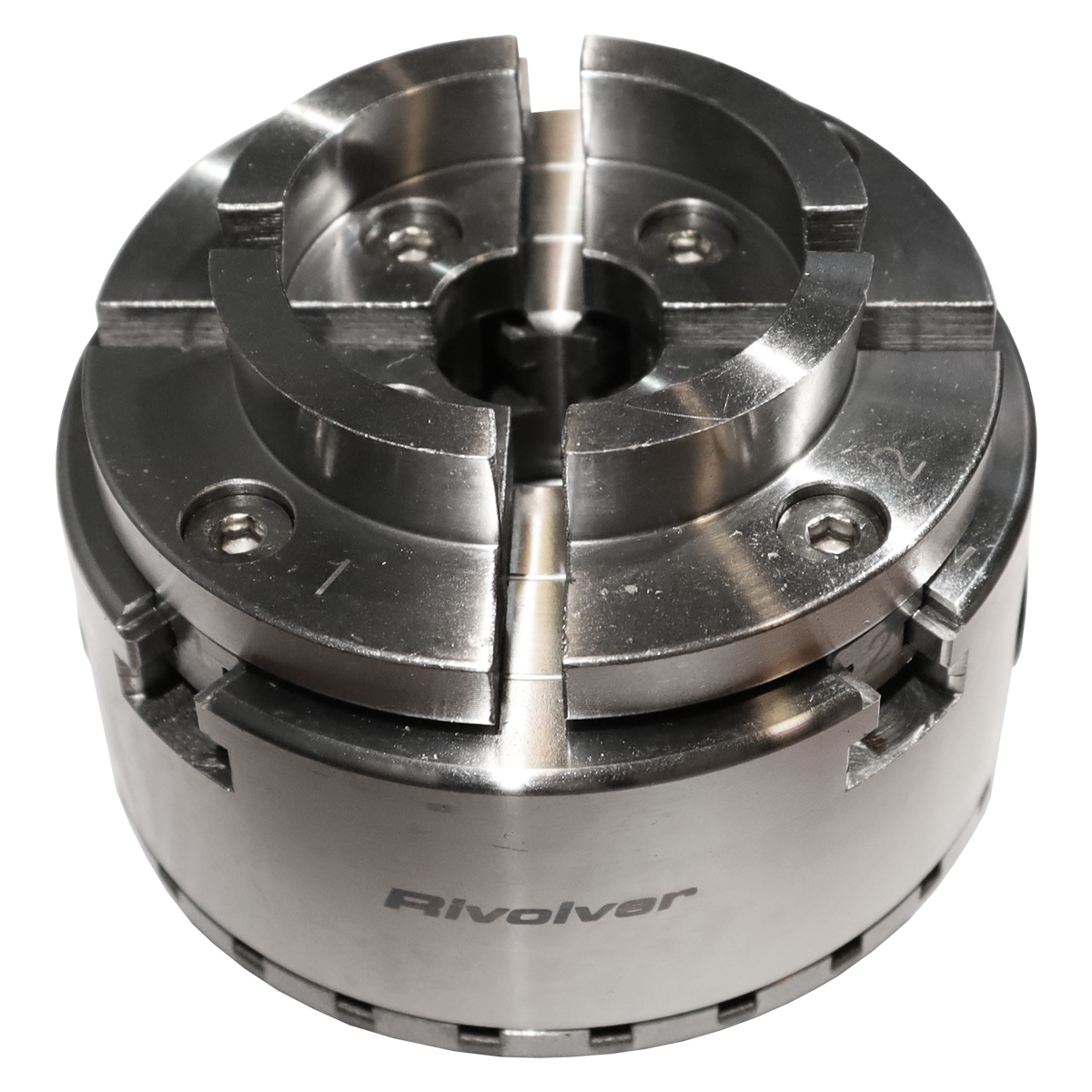

• Step Jaws – have a serrated edge both internally and externally. They give great flexibility by combining standard sized dovetail jaws and pin jaws

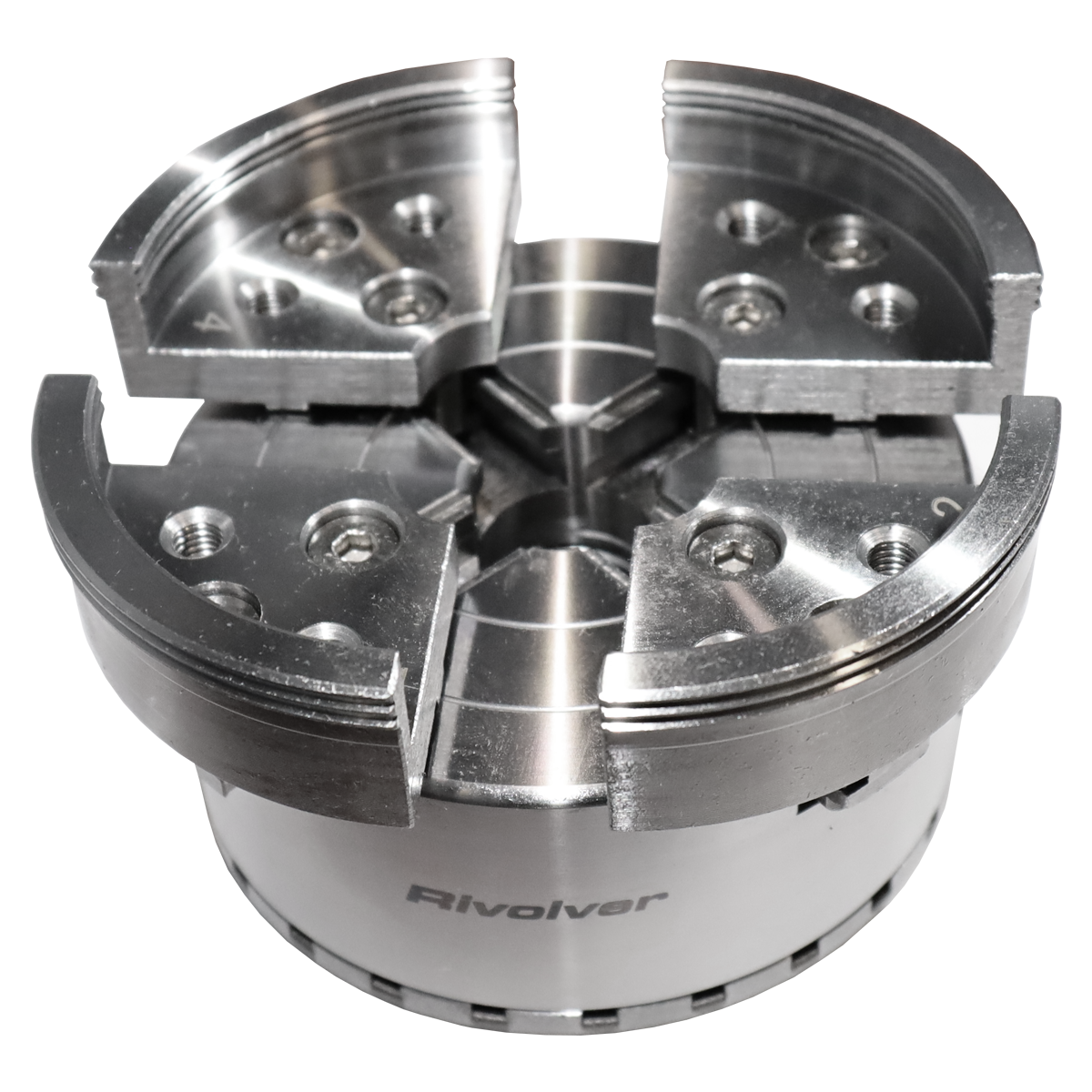

• Wide Jaws – have a serrated edge both internally and externally and can grip much larger pieces than the standard jaws.

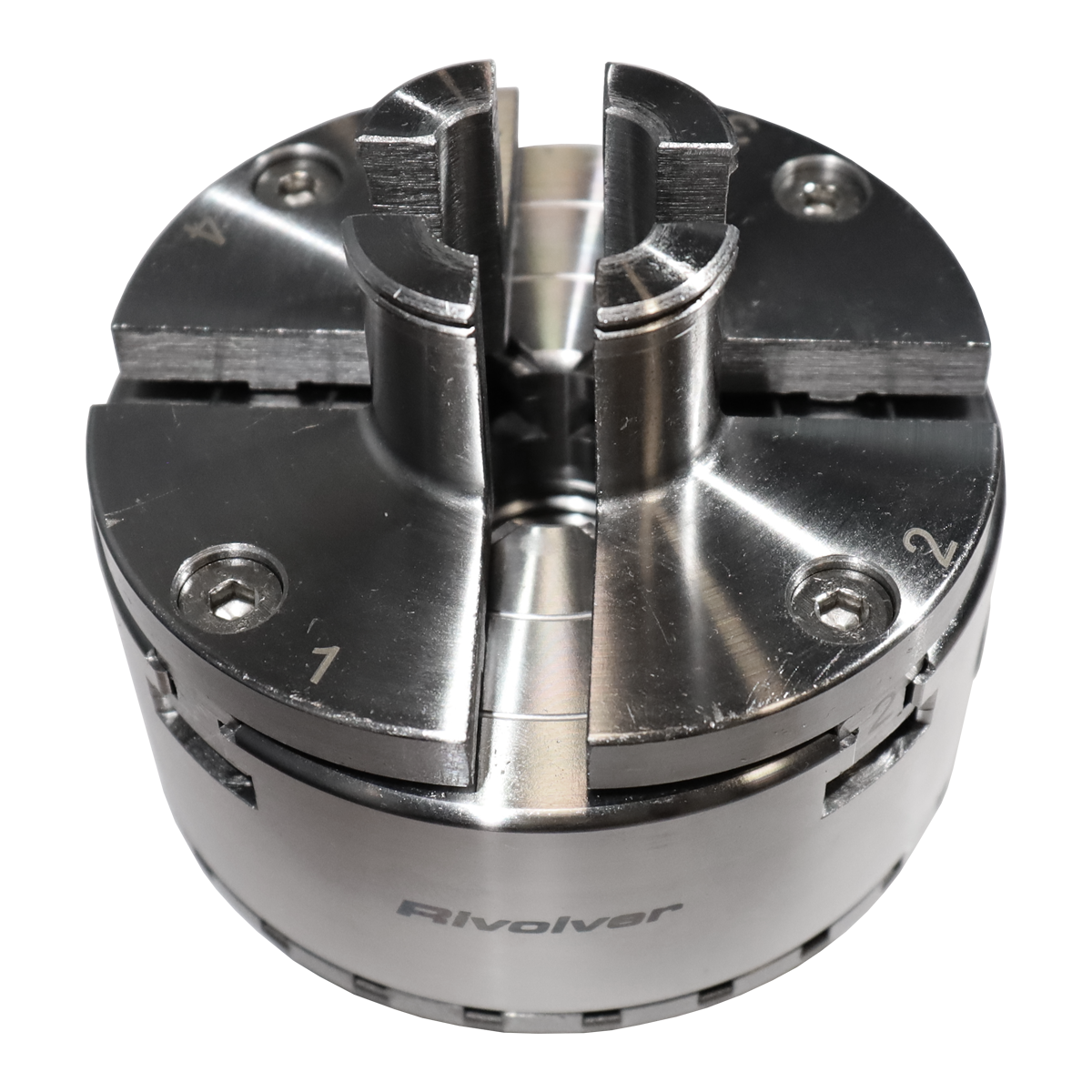

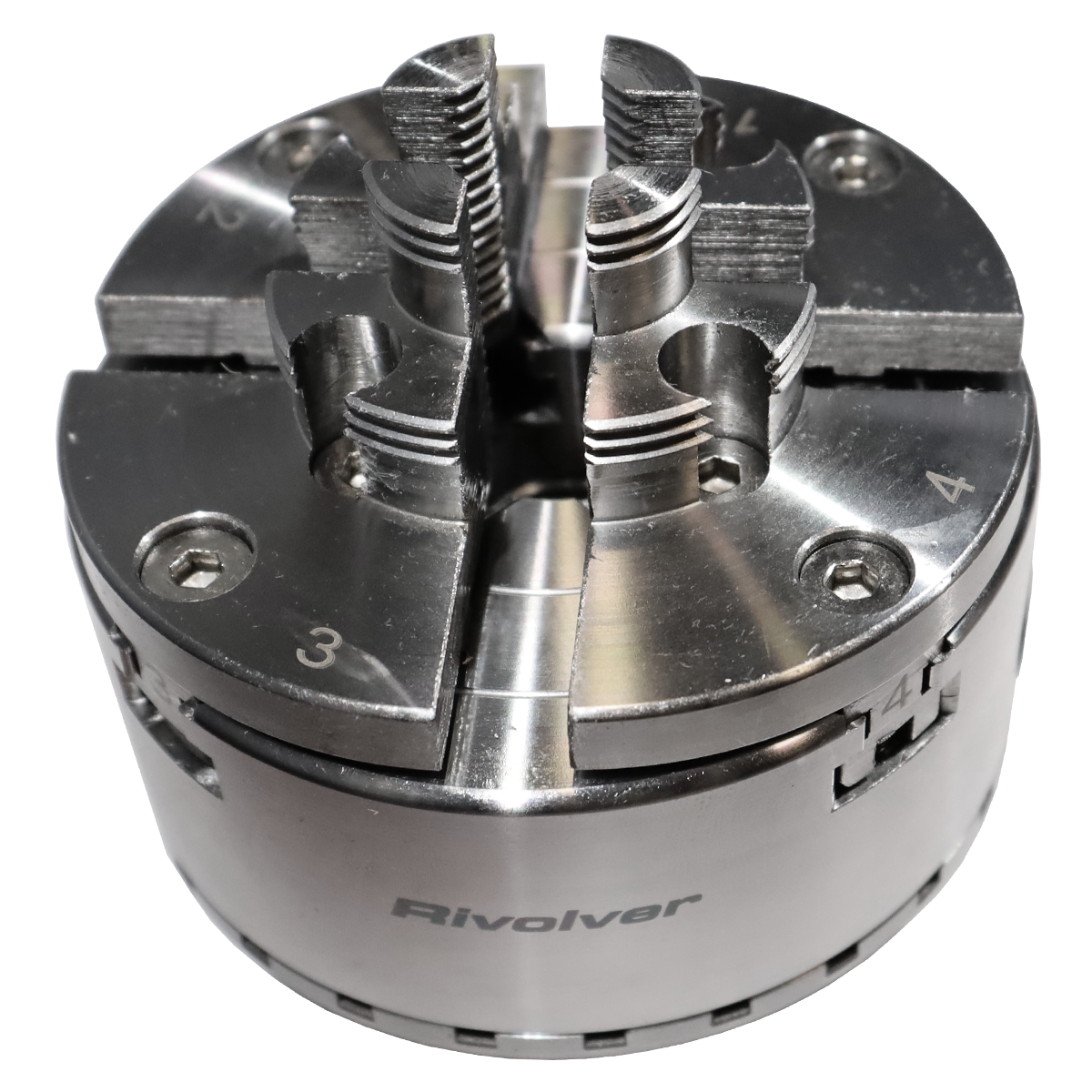

• Pin Jaws – allow smaller pieces to held than the dovetail jaws. The inside is smooth and parallel, the outside is serrated for maximum grip.

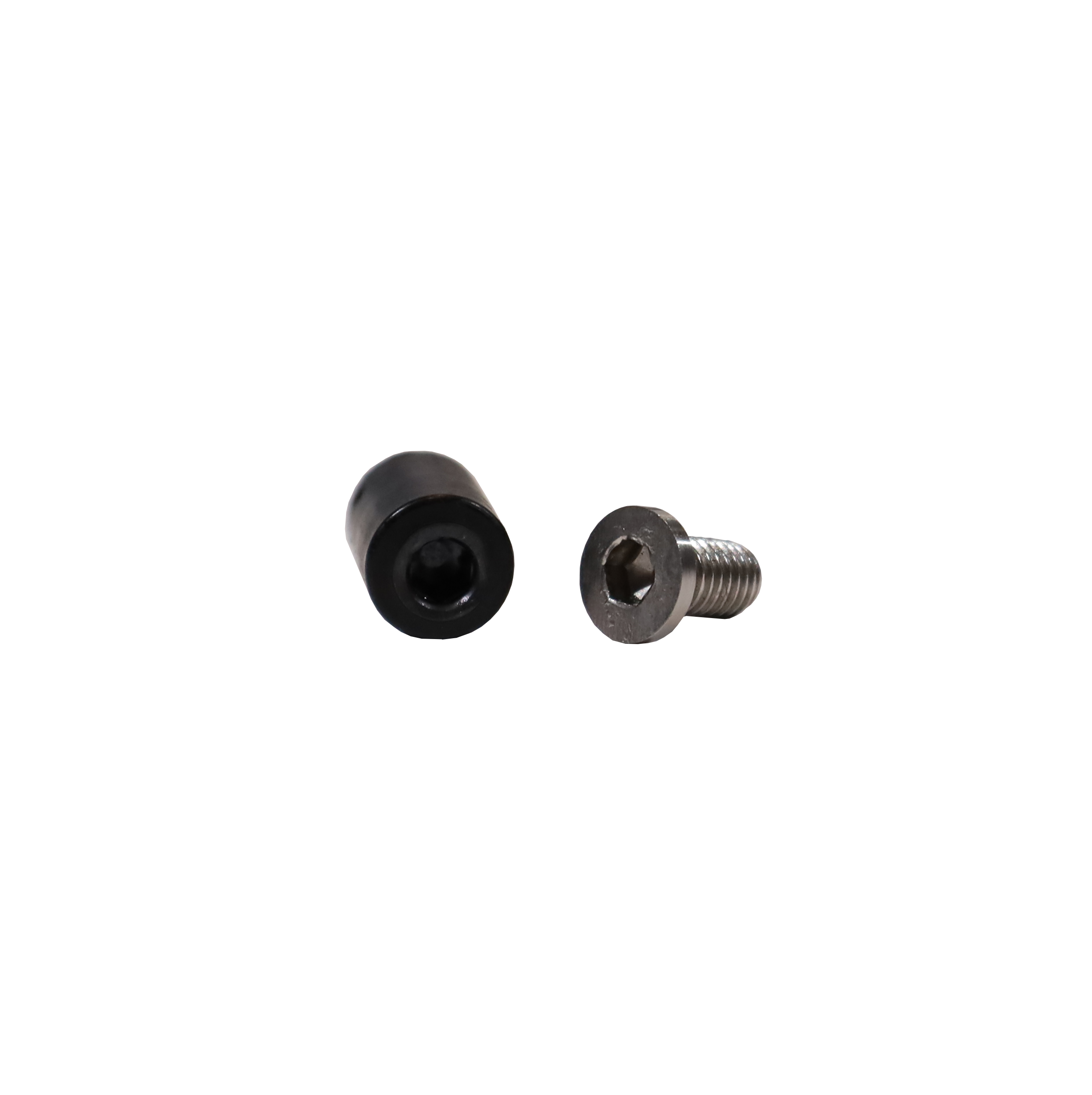

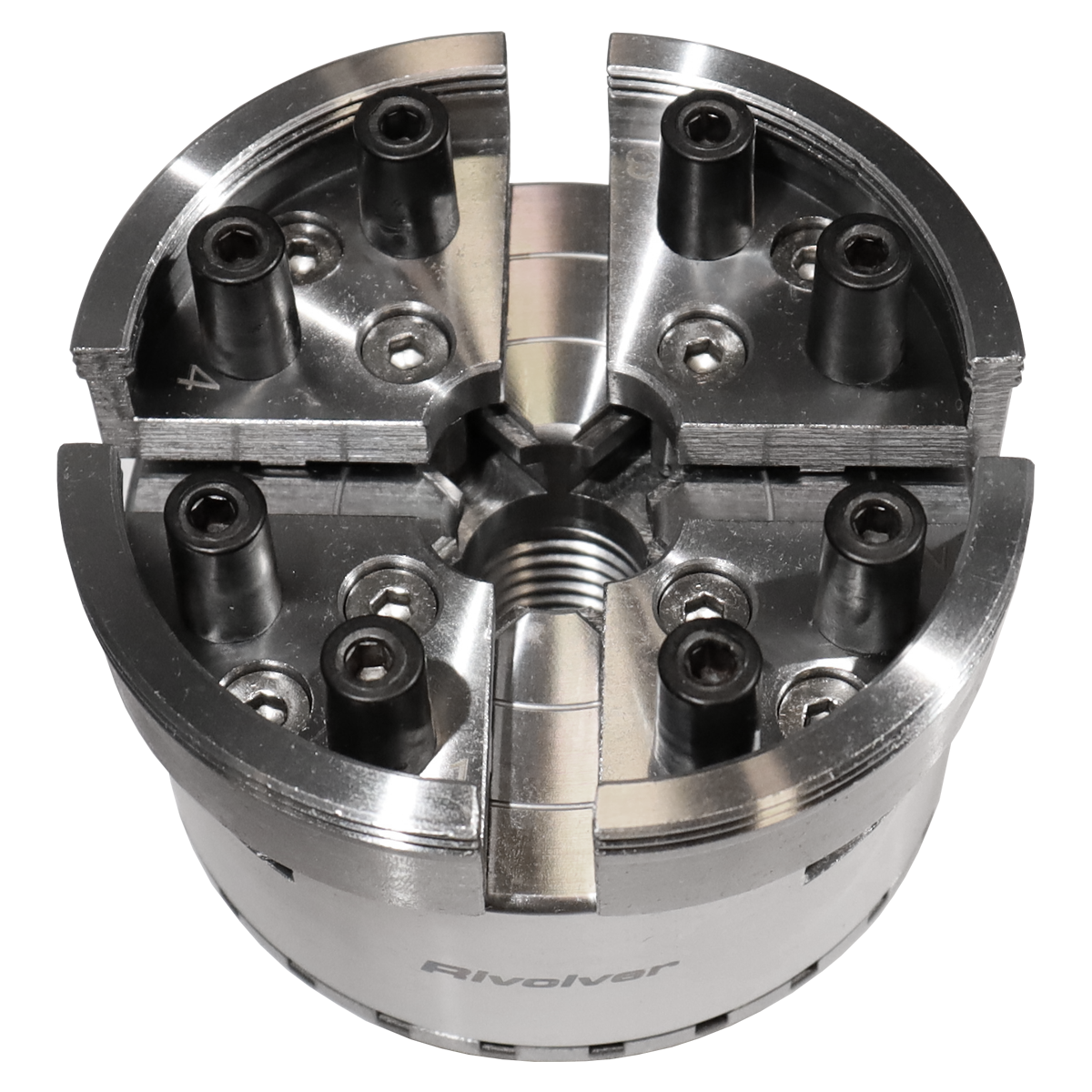

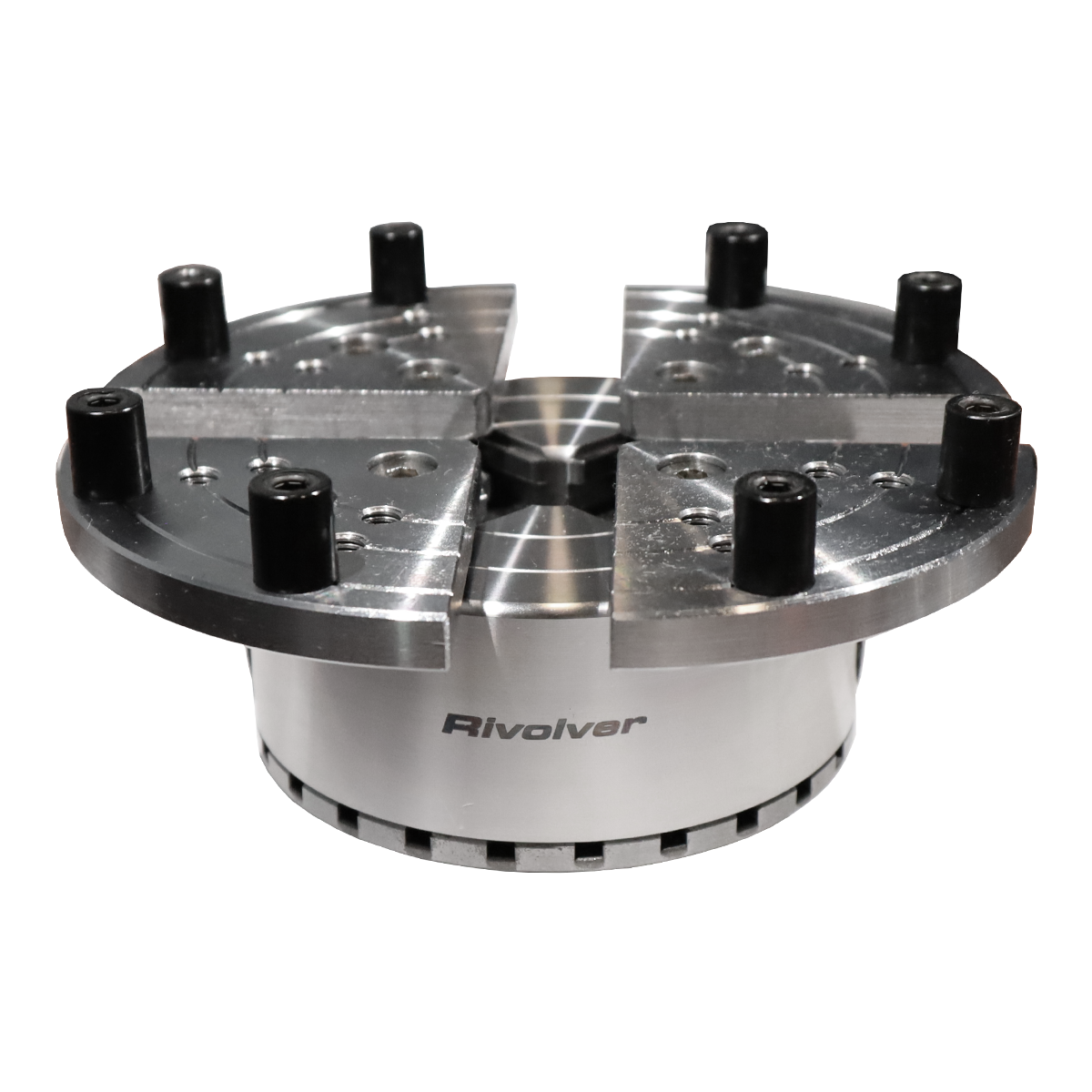

• 5″ Flat Jaws – are most commonly used for remounting finished bowls to re-shape the outside or to remove unwanted marks. Comes with 2 sets of 8 rubber coated fittings, 13mm & 17mm long to hold the work .
• Dovetail Jaws – can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned from 41 – 80mm in size

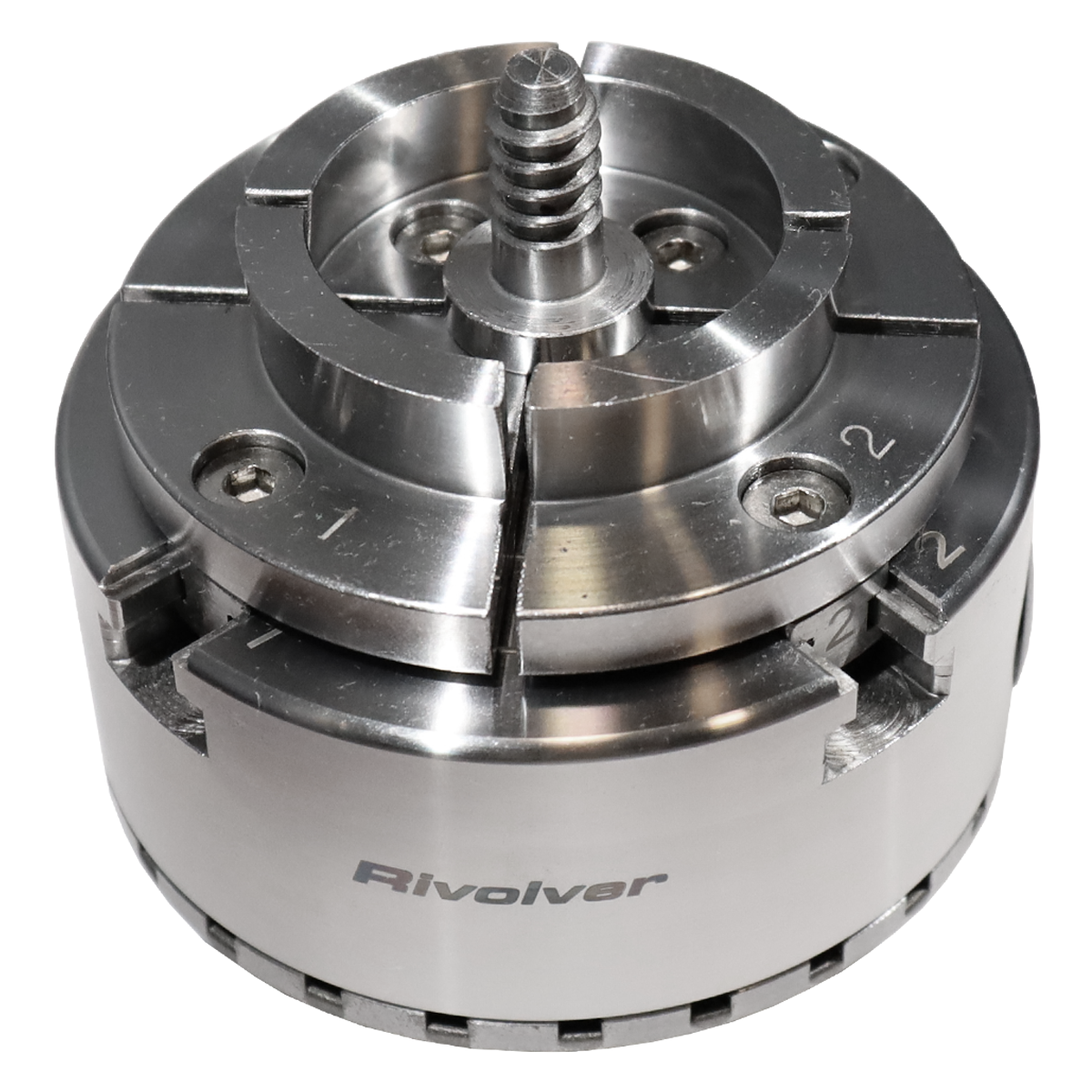

• Woodworm screw – for temporary mounting of bowls

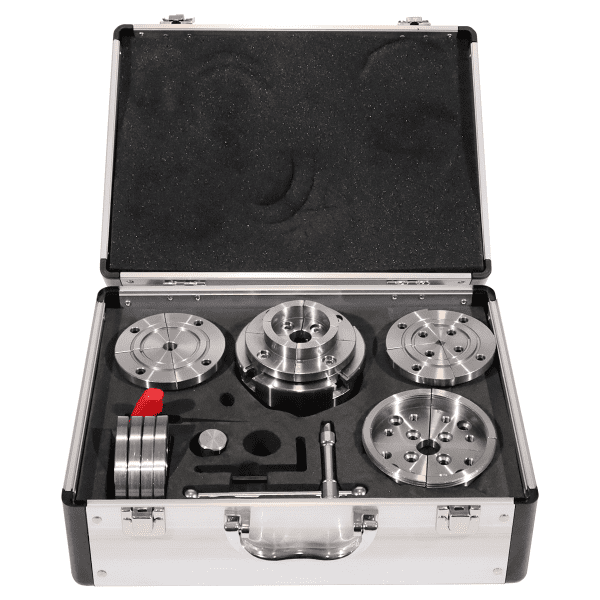

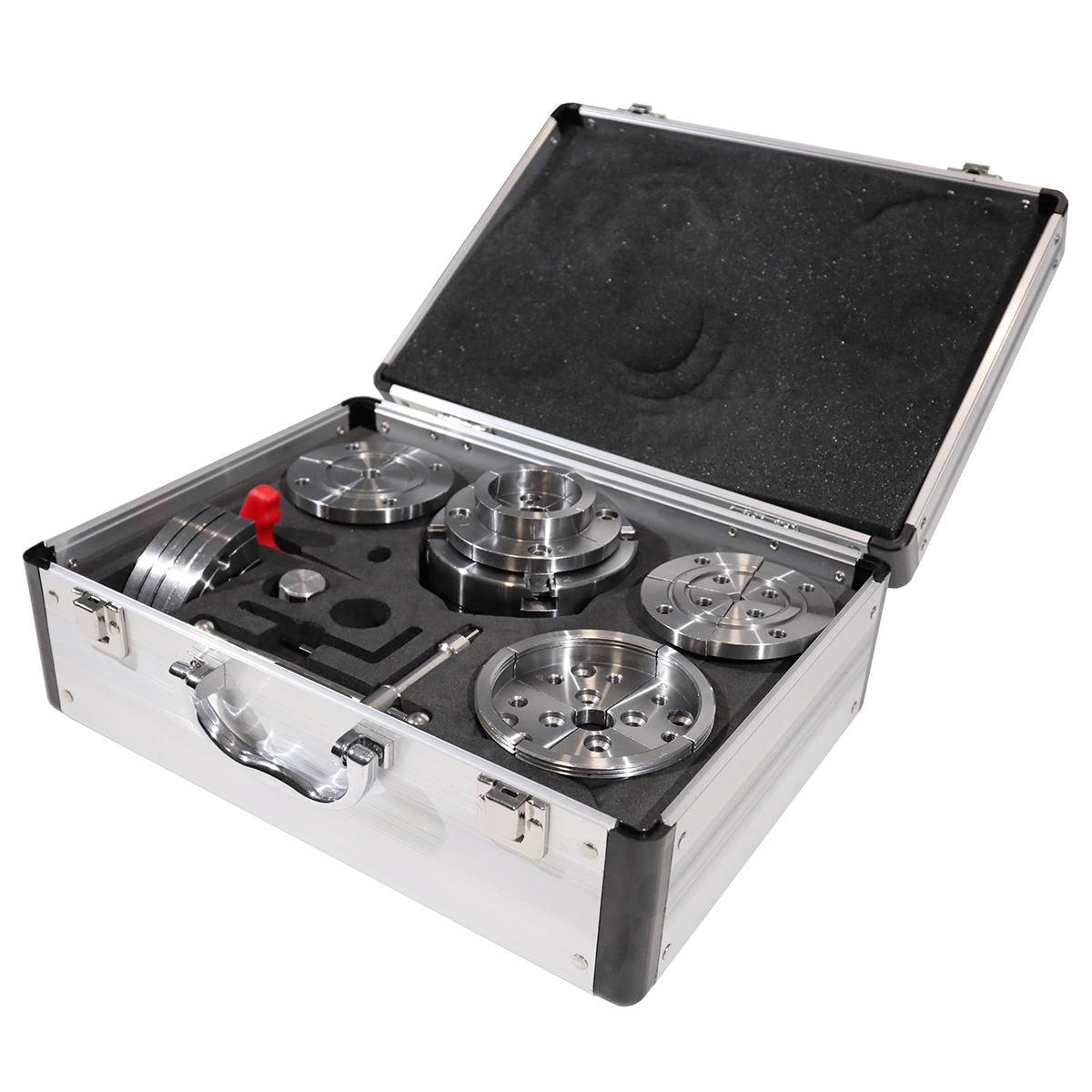

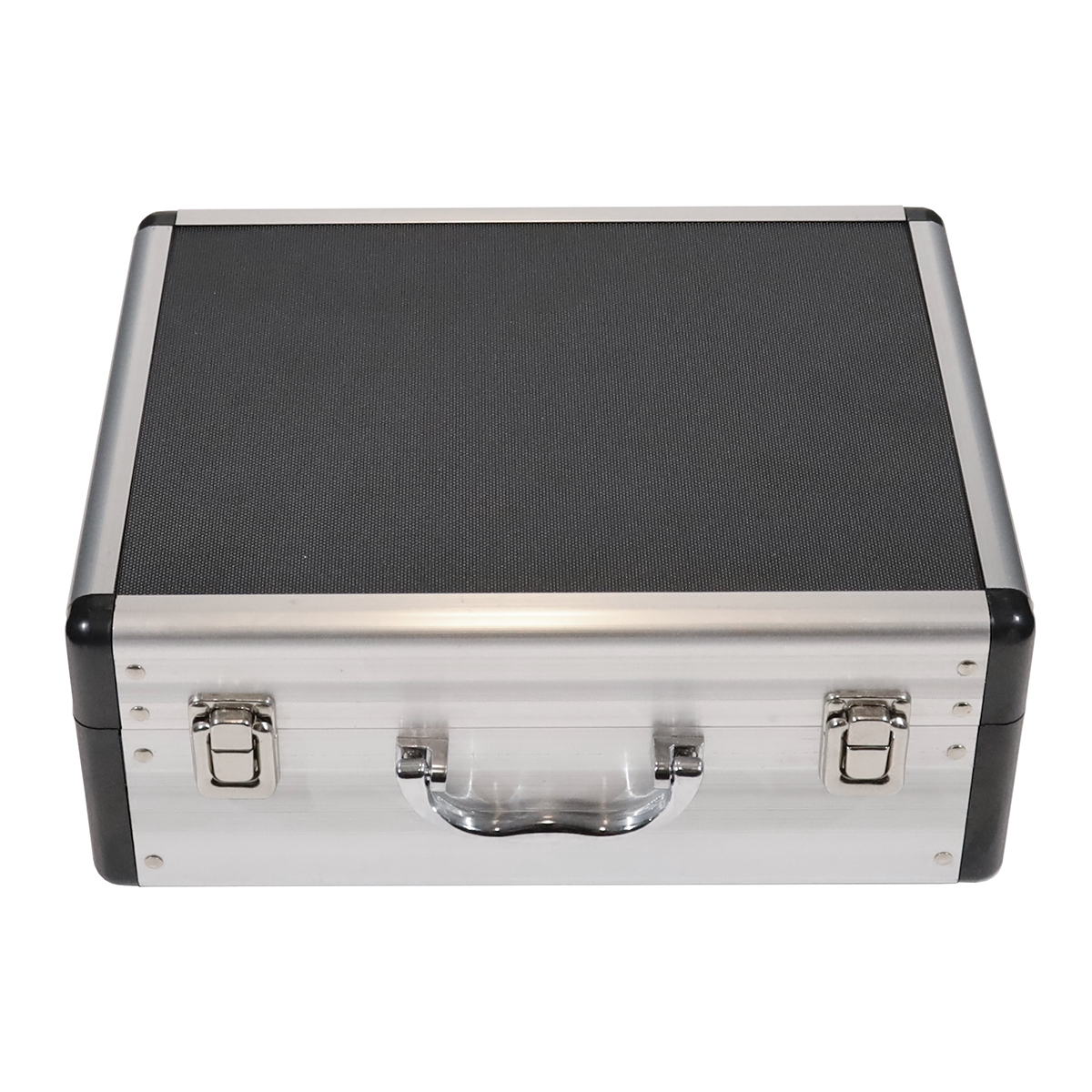

• Aluminum Carry Case

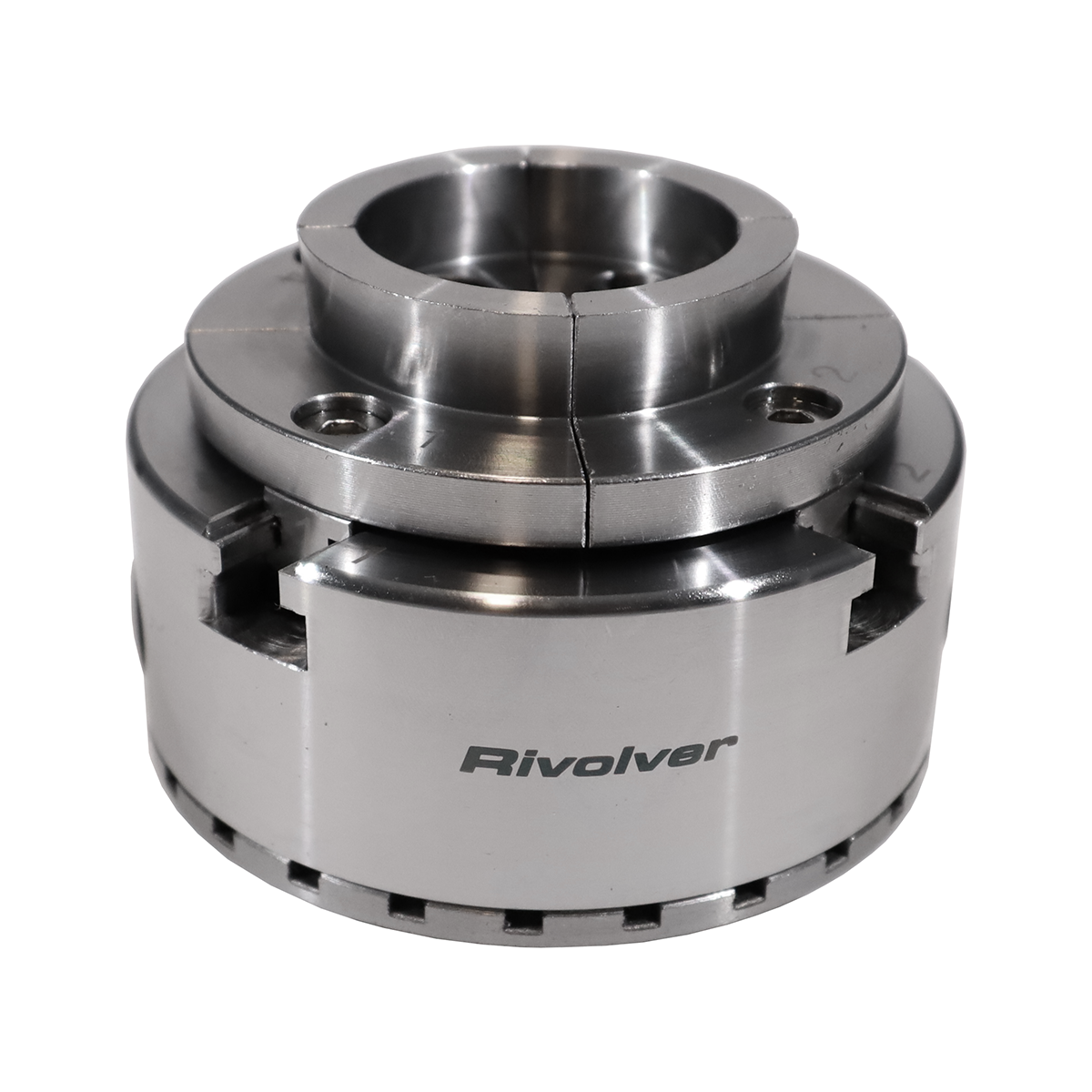

The Rivolver 3.75″ four jaw wood lathe chuck has a nickel-plated body, case-hardened and coated with a dry, long-lasting lubricant. Precisely made, the chuck body typically has less than 0.001″ of runout and less than 0.005″ with the jaws mounted. The WLC3.75 is standard with 1″ x 8 tpi threads but adaptors are available for other thread sizes.

Another unique feature of the Rivolver WLC3.75 chuck is that Jaws are compatible with SuperNOVA2, G3 Nova, Robert Sorby Patriot, Record Power SC3, and Record Power SC4 chucks. Our jaws can be used on their chucks and their jaws can be used on the WLC3.75. (All listed chucks require our CWI-JS8-M5 jaw fixing screws to be used and are available separately)

See the list for Popular Lathe Brands and headstock thread size:

• Beaver: 7/8″ x 14 tpi
• Craftsman and Coronet: 3/4″ x 16 tpi
• Rikon, Delta and General 160, 25-200: 1″ x 8 tpi
• General 260, 25-650: 1 1/4″ x 8 tpi
• Shopsmith: 5/8″ plain
• Rivolver WL200, WL125, WL225, WL325 WL1″ x 8tpi
• Rivolver WL650, WL825 1 1/4″ x 8tpi
• Laguna Revo 12/16 1″ x 8tpi
• Laguna 15″ and larger 1 1/4″ x 8tpi
