Safety Speed C4 50″ Cut Vertical Panel Saw

Description

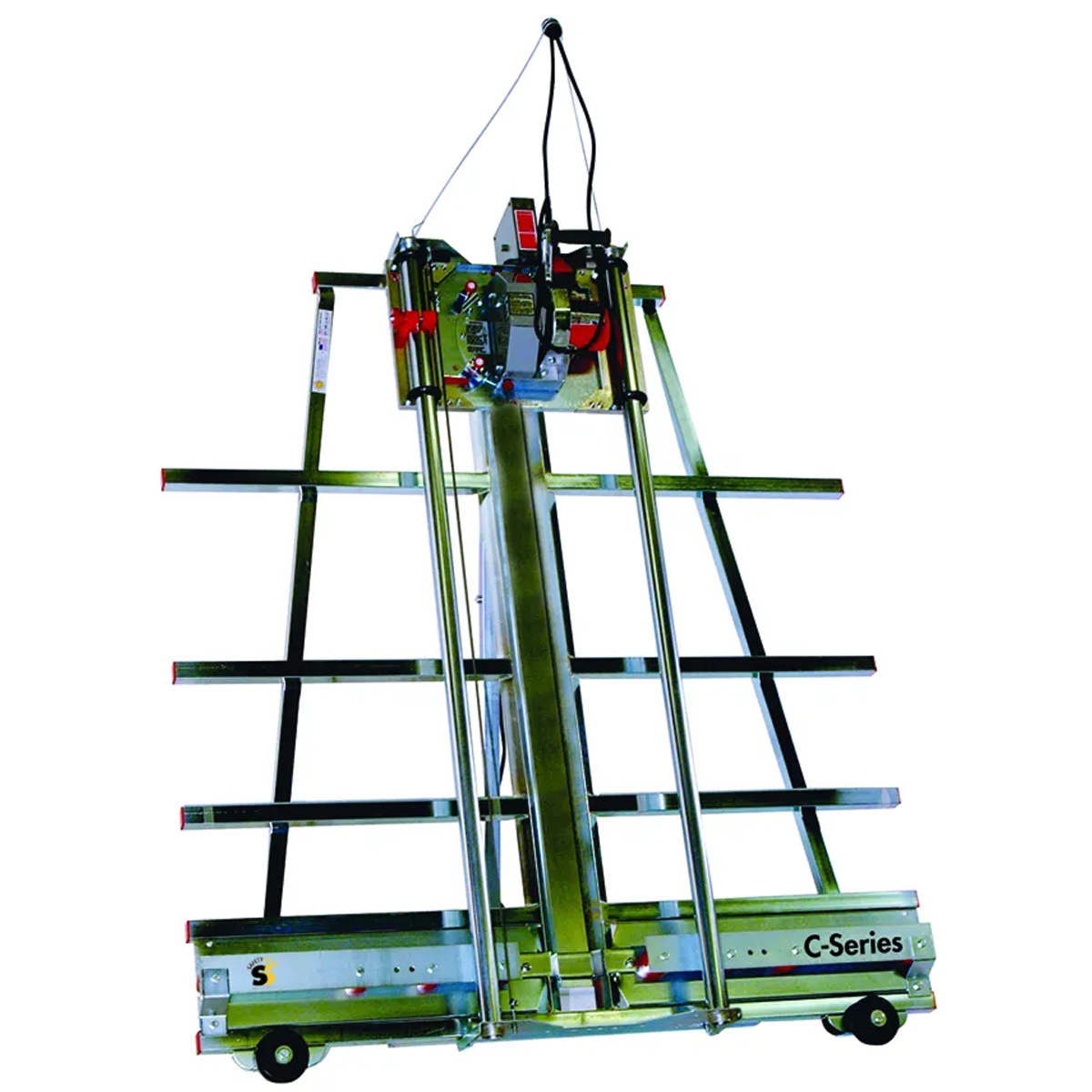

The C4 model packs all of the features of the full-size saws into a portable 5′ frame and features a 50″ maximum crosscut. The maximum cutting height on the C5 Panel Saw is 64″, both machines include a Milwaukee Tool motor and have no differences besides the maximum cutting height. The C4 is designed for customers who have limited floor space or require transporting the saw to the work site. Photos are shown shown with a stand and wheels, which are optional accessories.



This panel saw can travel to work sites and fit into shops with limited floor space. The C4 is ideal for cutting 4’X8′ sheets of material. The only difference between this machine and the C5 Panel saw are the maximum crosscuts.



Available in the following configurations:

• 3.25 HP, 15 amp, 120 Volt
• 3.25 HP, 7.5 amp, 220 Volt



Standard Equipment:

• 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
• Zinc plated 1 ¾” steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards



Specifications:

• Weight 189 lbs
• Dimensions 60 x 11 x 70in
• Max. Crosscut 50″/1270mm
• Max. Rip Cut 96″/2450mm
• Cut Depth 1 ¾”/45mm
• Cut Accuracy 1/32″/.8mm
• Frame Length 60″/ 525mm
• Saw Blade Diameter 8″/210mm
• Saw Blade Bore 5/8″
• Daily Usage 1-3 Hours
• Rollers 8
• Motor Horsepower, Amperage and Volts 3.25 HP, 15 amp, 120 Volt / 3.25 HP, 7.5 amp, 220 Volt
• Motor Manufacturer Milwaukee Tool
• Country of Origin USA
