Safety Speed C5 64″ Cut Vertical Panel Saw

Description

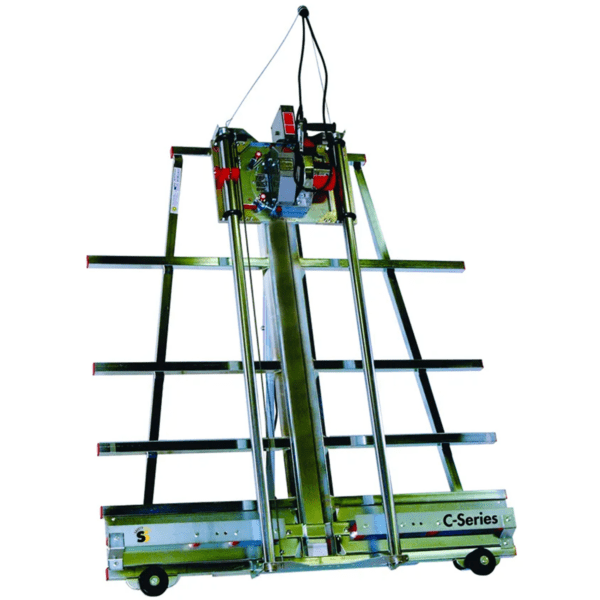

The C5 portable panel saw features a 64″ maximum crosscut and cuts material up to 1.75″ thick. Photos are shown with a stand and wheels, which are optional accessories.

This panel saw can travel to work sites and fit into shops with limited floor space. The only difference between this machine and the C4 Panel saw are the maximum crosscut lengths.

Standard Equipment

• Zinc plated 1 ¾” steel guide tubes.
• Milwaukee Tool motor
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Specifications:

• Weight 219 lbs
• Dimensions 60 x 11 x 83in
• Max. Crosscut 64″/1625mm
• Max. Rip Cut 96″/2450mm
• Cut Depth 1 ¾”/45mm
• Cut Accuracy 1/32″/.8mm
• Frame Length 60″/ 525mm
• Daily Usage 1-3 Hours
• Rollers 8
• Saw Blade Diameter 8″/210mm
• Saw Blade Bore 5/8″
• Motor Horsepower, Amperage and Volts 3.25 HP, 15 amp, 120 Volt / 3.25 HP, 7.5 amp, 220 Volt
• Motor Manufacturer Milwaukee Tool
• Country of Origin USA
