Scorpion Deluxe Helical 6″ Jointer

Original price was: $2,699.95.Current price is: $2,549.95.

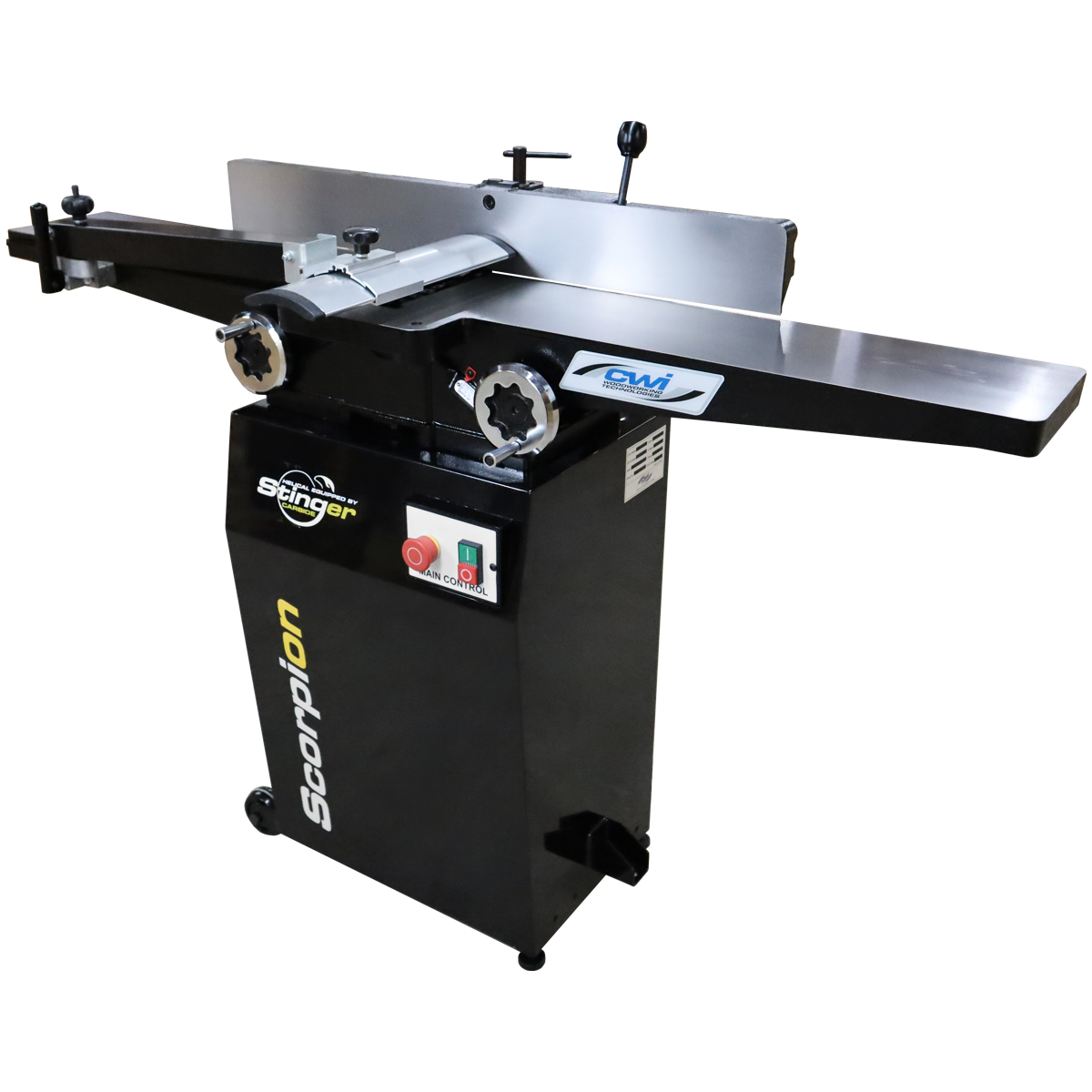

The Scorpion CWI-J125HC is one of the best built 6” long bed jointers available today for the demanding hobby user or the educational or industrial customer looking for a small jointer with industrial qualities.

Scorpion Jointers and Planers from CWI Woodworking Technologies at Canadian Woodworker

Description

The Scorpion CWI-J125HC is one of the best built 6” long bed jointers available today for the demanding hobby user or the educational or industrial customer looking for a small jointer with industrial qualities.

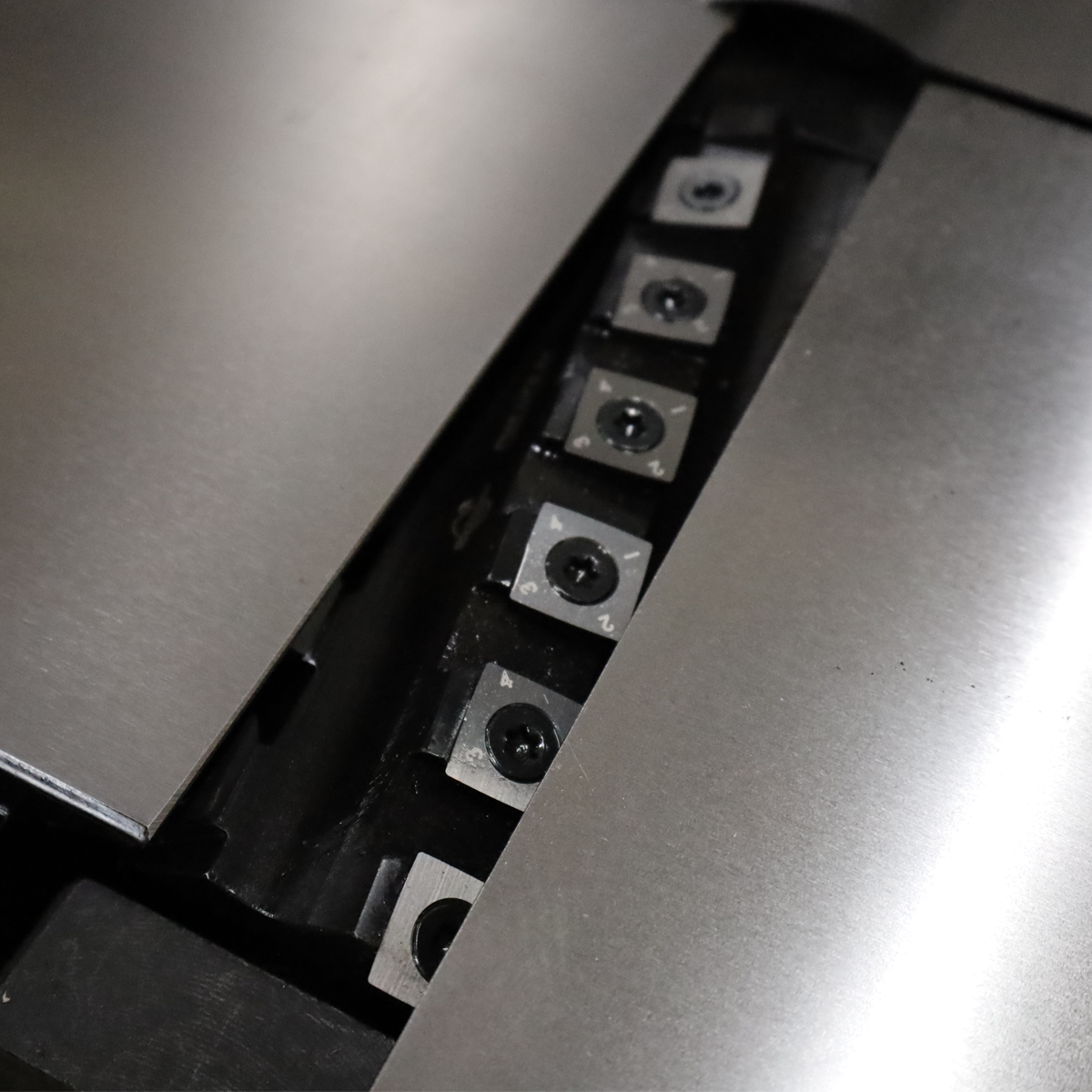

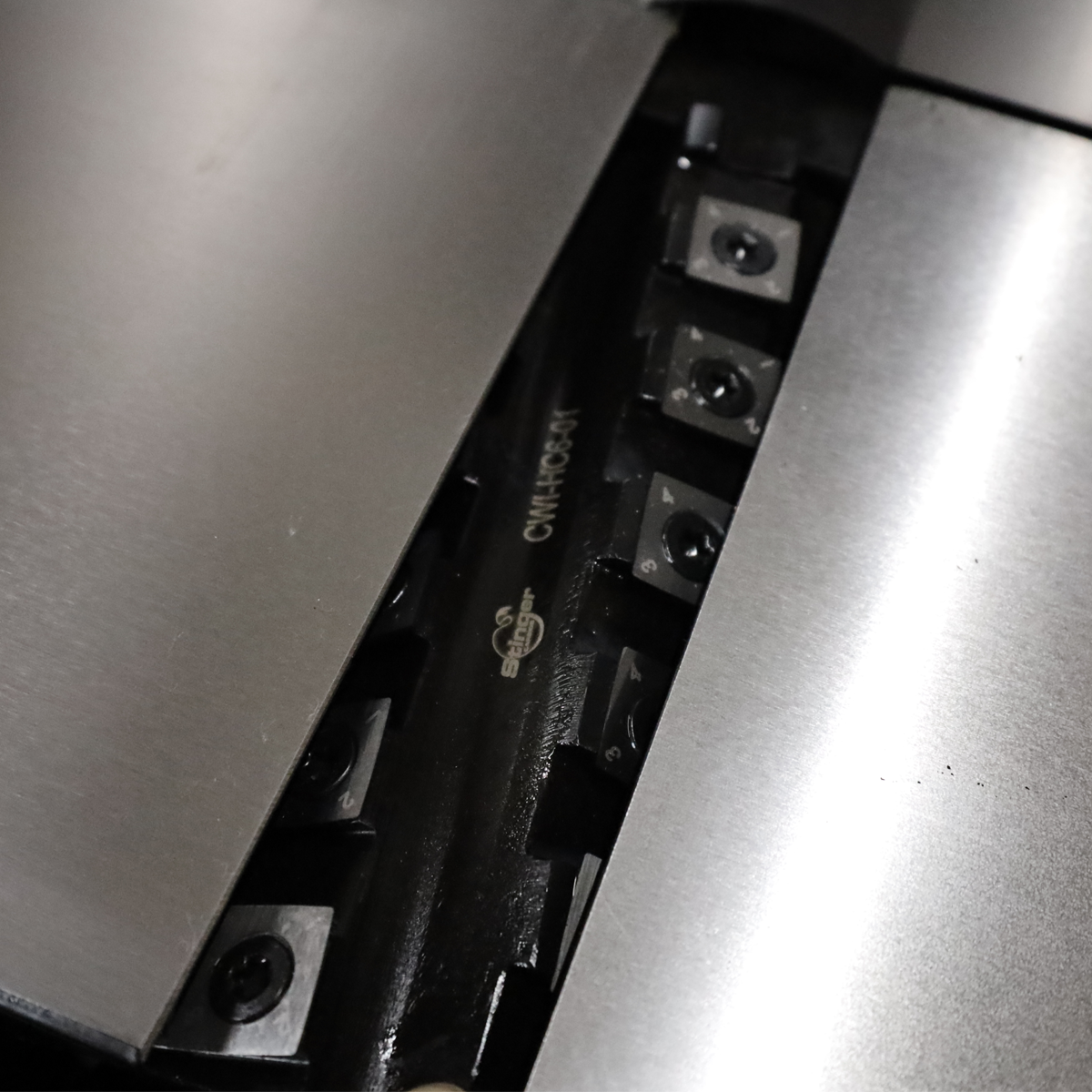

The new Scorpion CWI-J125HC is our newest design 6″ dovetail design long bed jointer which includes the superior cutting performance of the Stinger 5 row carbide helical cutter head. The Stinger heavy duty 2.5” diameter cutter head has 30 four-sided convex edge carbide knives set on a shear angle. The 5 rows of knives provide more knife cuts per inch, better overlap of the knives for less knife marks in the wood and virtually zero tear out even on the most difficult to joint woods.



The J125HC comes with a heavy duty enclosed, welded steel stand with storage compartment, with our lever style wheeled mobility kit to make movement around the shop a breeze. The 55” x 7.25” machined cast iron bed is one of the longest in the industry and is easily adjustable for flatness by the machined dovetail ways and locking adjustment screws. When using a jointer, having the longest table length possible is preferred to help when machining longer boards to give more work piece support and less chance of “cupping” or curving the long boards.

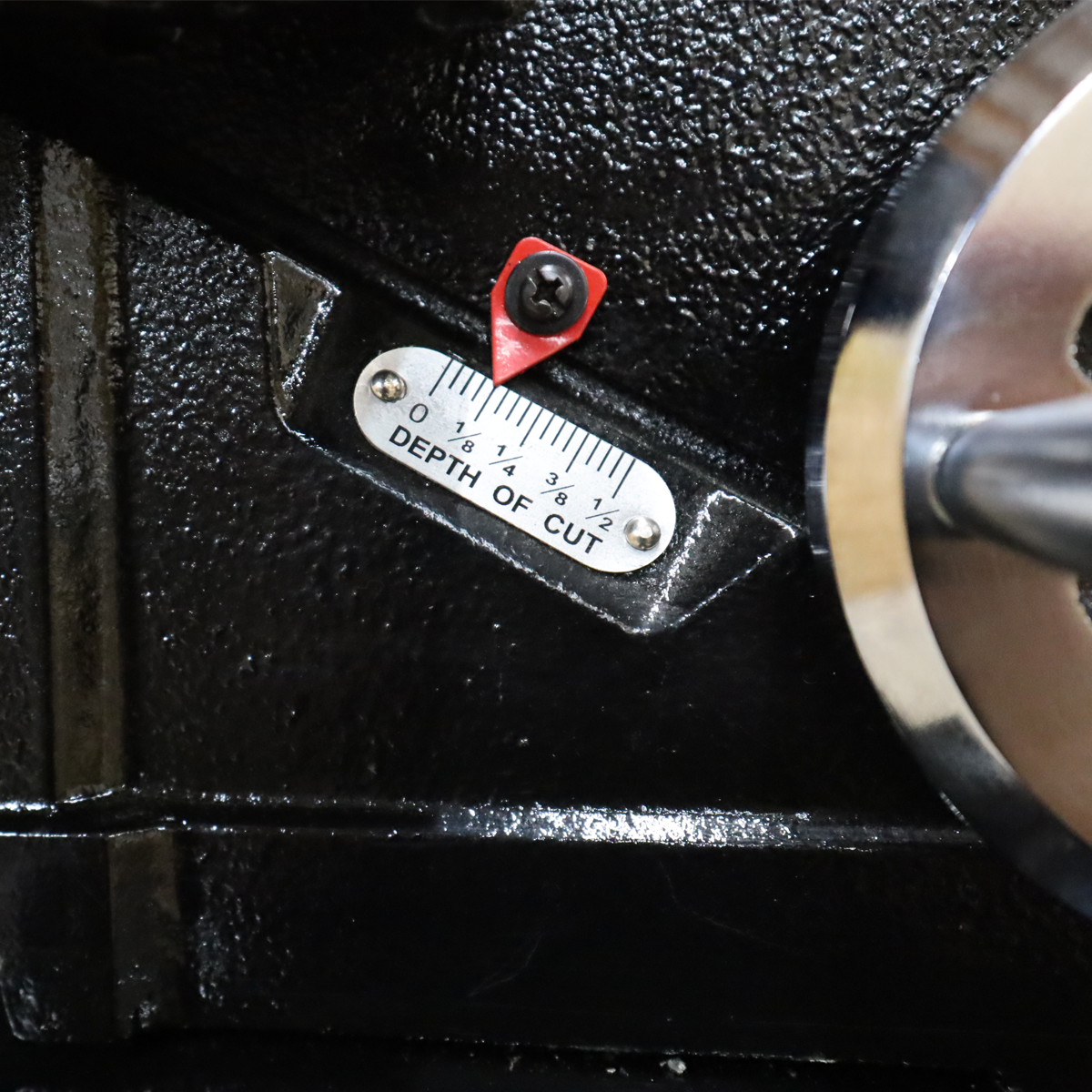

Other than the table length one of the most impressive features of the Scorpion jointers is the front facing hand wheels for simple and easy adjustment of the table heights on both infeed and outfeed tables. The Scorpion hand wheels are easily reached at the front of the machine and allow for precise adjustments of the bed heights. There is also a set stop at 1/8” depth of cut but simply pull the stop pin to adjust the table height for up to ½” of cut.

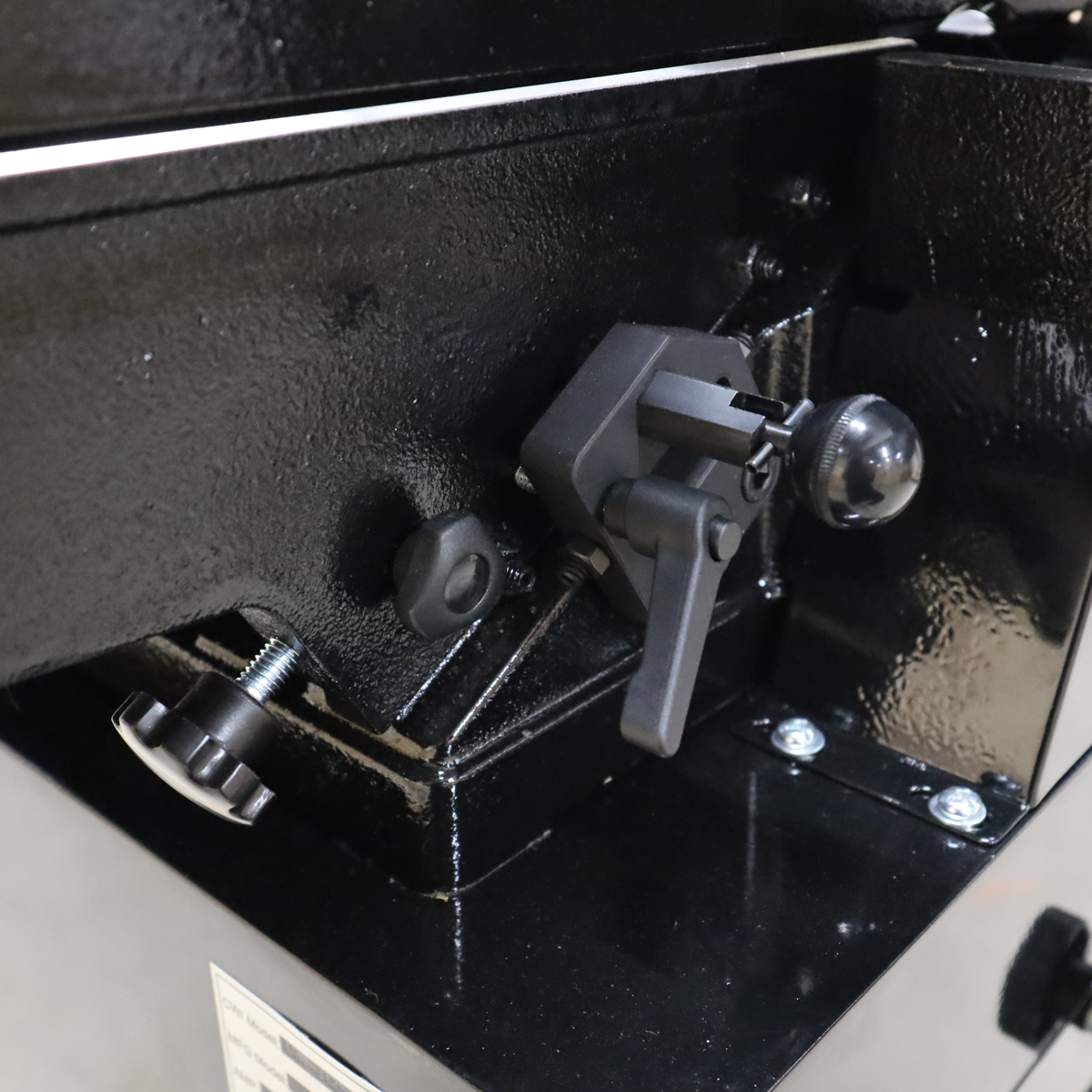

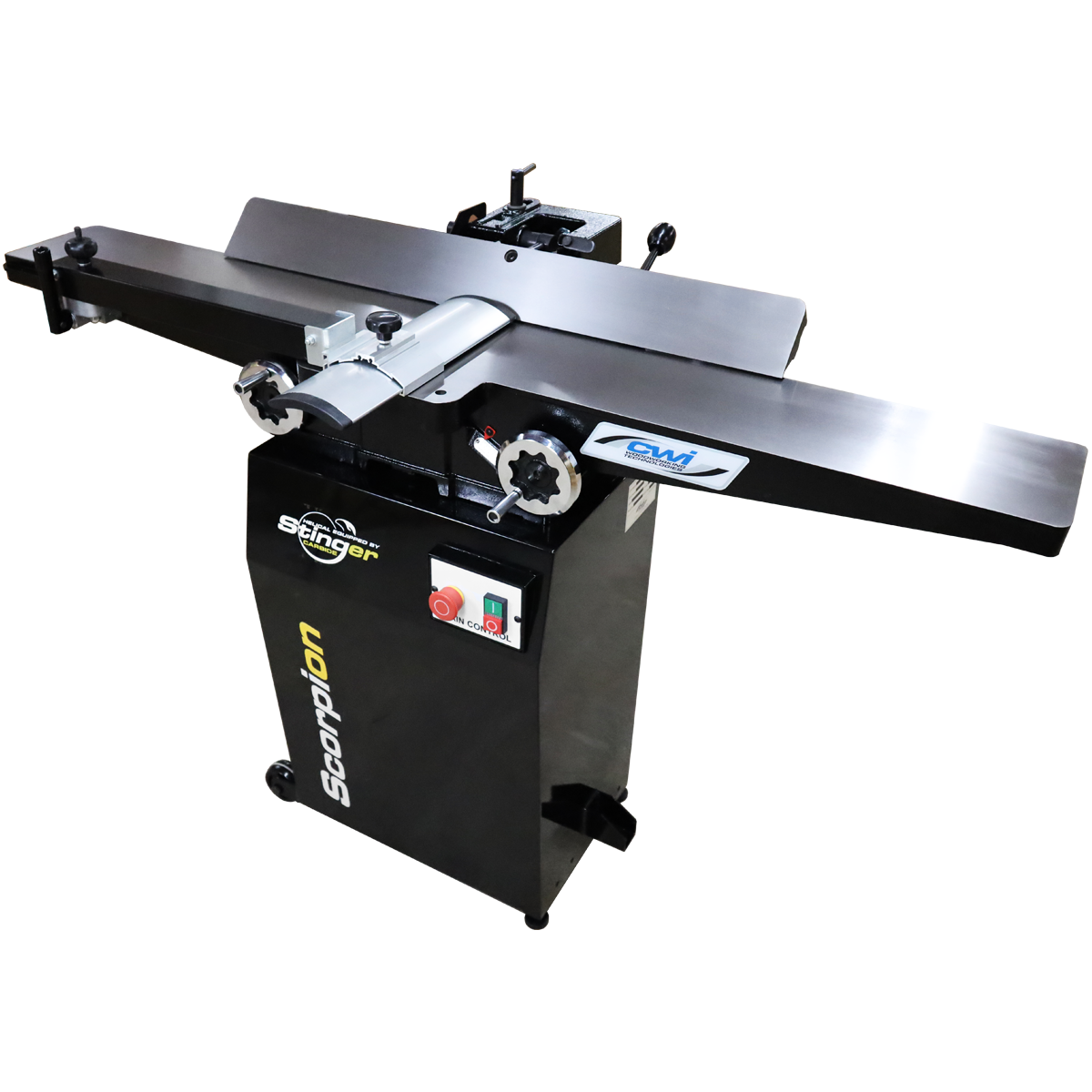

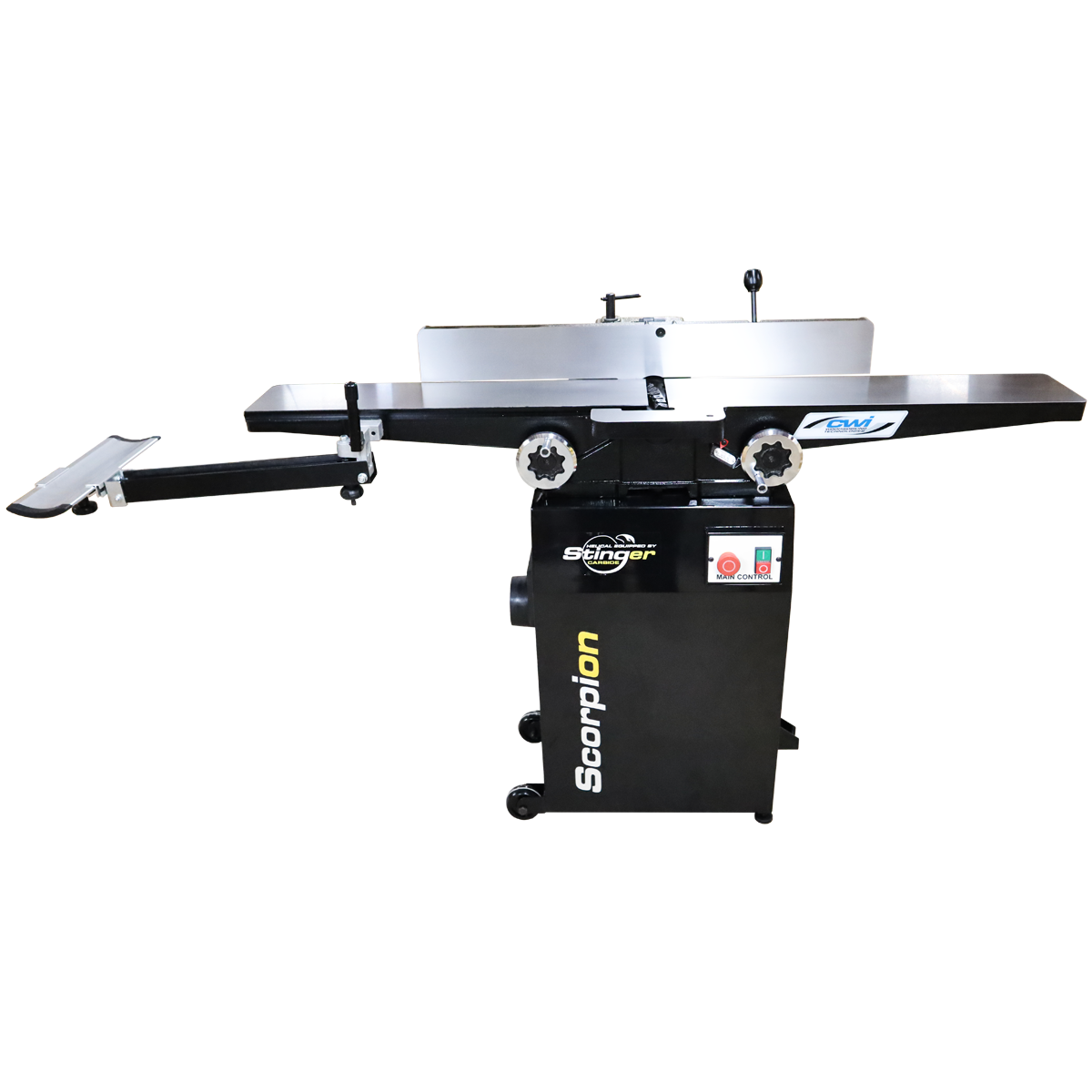

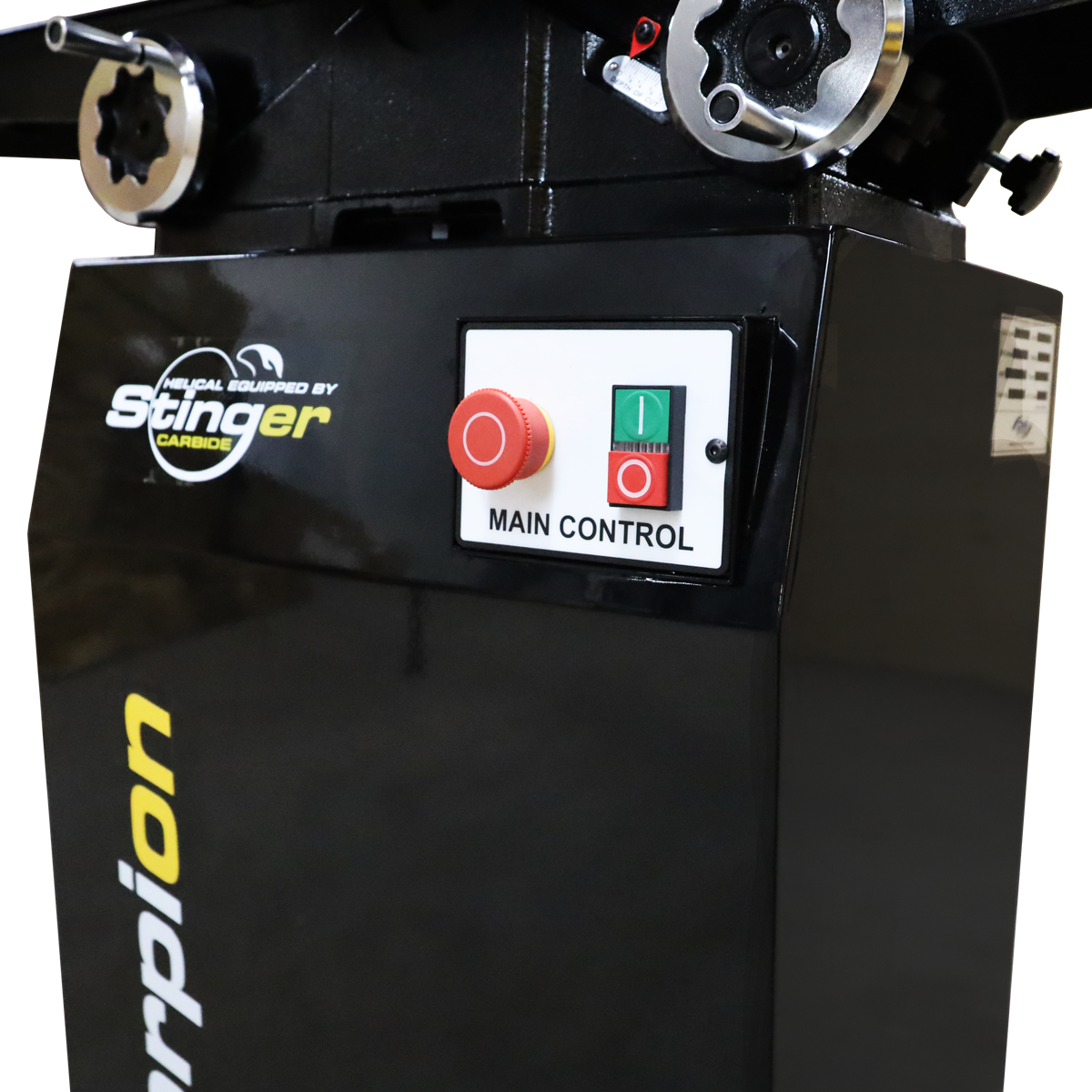

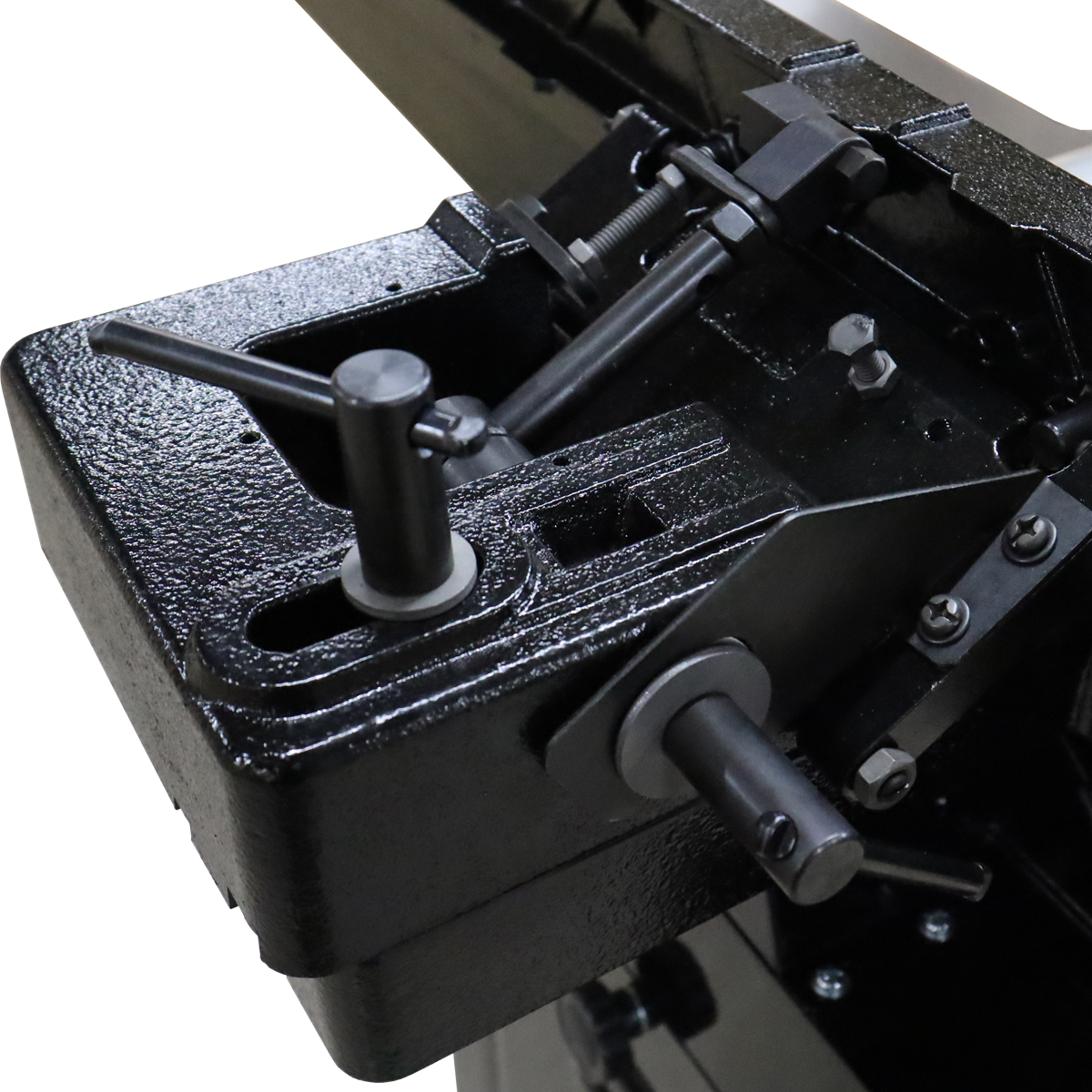

The robust cast iron machined fence is 4” tall and an amazing 32” long for excellent work piece support as it travels the length of the jointer bed. The fence has set stops at 135 degrees, 90 degrees and 45 degrees and as well can be set anywhere in between for angle work. It is supported by a massive cast iron fence mechanism to allow accurate and simple adjustments for both angles and width of cut. The J125HC has a powerful 14 amp (7 amp on 220 volt) 1 HP single phase motor and a magnetic safety switch with overload and under voltage protection. Included on the electrical panel, is the push button on/off switch as well as a mushroom style safety emergency disconnect switch. Also unique to the J125HC is the Euro style cutter head guard which is safer and easier to use than the old “pork chop” style spring loaded guards.



This Scorpion jointer is sure to be a fantastic addition to your workshop.



Specifications:

  • Euro Style Cutter Head Guard
  • Lever Style Mobility Kit
  • Stinger 5 Row Carbide helical Cutter head
  • Easy Adjust Front Facing Hand wheels
  • Heavy-Duty Cast-Iron Fence Assembly
  • Fence stops at 135, 90 and 45 degrees
  • Table size 7 1/4″ x 55″
  • Table height 30.5″
  • Maximum cutting width 6″
  • Maximum cutting depth 1/2″
  • Rabbeting capacity 1/2″
  • Cast Iron Fence size 4″ x 32″
  • Motor 1 HP, 115/230 V, 14/7 A
  • Magnetic Start/Stop Switch
  • Mushroom Style Emergency Disconnect
  • Cutter head speed 6000 rpm
  • Number of Carbide knives 30
  • Knife Size 15mm x 15mm x 2.5mm
  • Welded Steel Stand with Storage

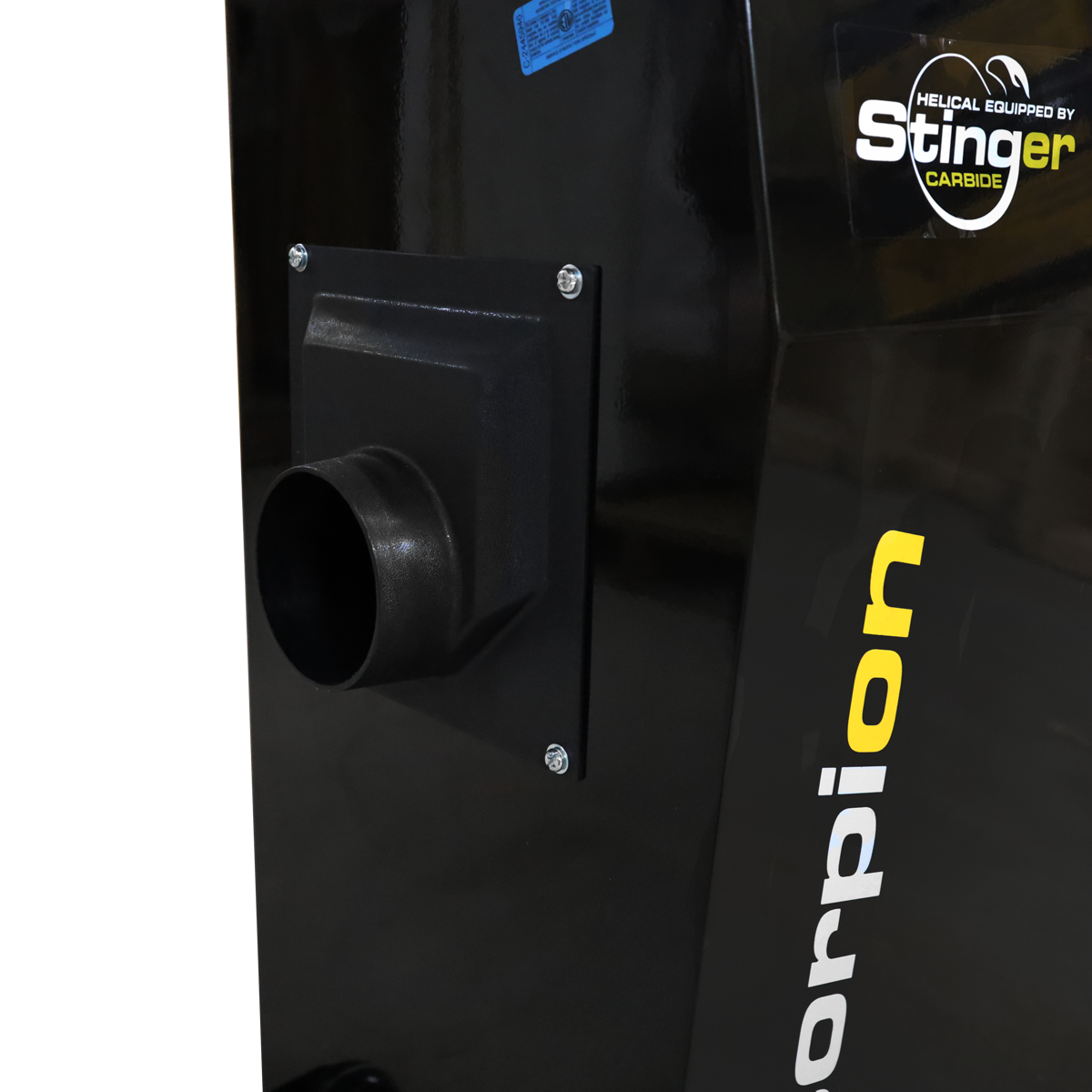

  • Dust Collection Chute with 4” Port
  • Floor Space 55″ x 20″ x 35”
  • Net Weight 210 lbs
  • Shipping Size (2 PCS) 58″ x 21.5″ x 16″ (80 kg / 176lbs) 26” x 15” x 25” (34 kg / 75lbs)
  • Shipping Weight 251 lbs (114 kg)

Additional information

Weight 114 kg
Dimensions 149 × 54 × 105 cm

Brand

Scorpion

Scorpion jointers, thickness planers and combination machines are built by CWI Woodworking Technologies to be best in class machinery with the features, performance and quality that serious woodworkers are looking for whether in the hobby, educational or industrial woodworking industries. You will find our machines to have more cast iron, better cutters, easier adjustments, longer tables and superior quality to all competitors.
