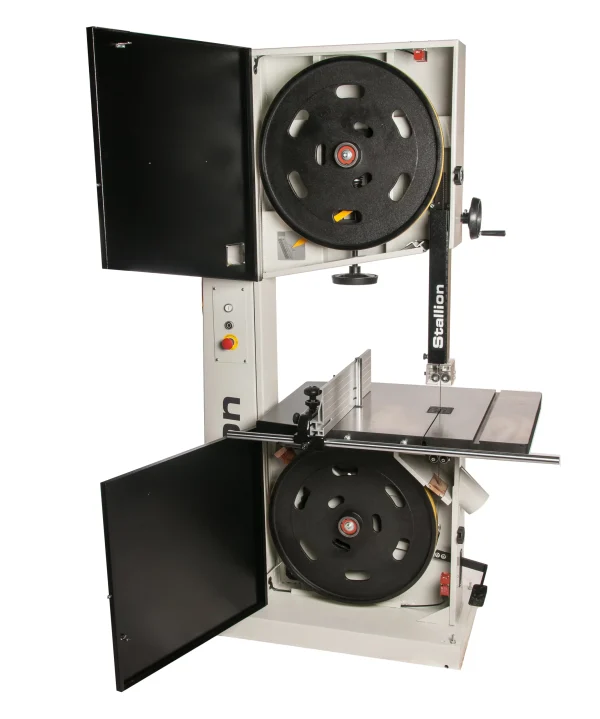

The Stallion CWI-B2414 24” HD Series band saw is a European designed bandsaw with features and benefits that will rival many saws at double the price.

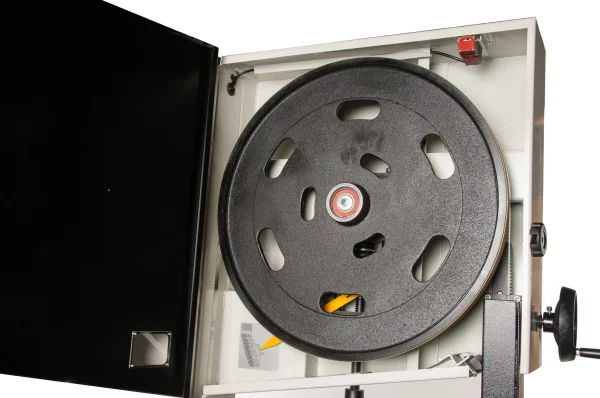

The CWI-B2414 offers 14” of resaw capacity, a heavy duty double welded steel frame, 5.5 HP three phase motor and solid cast iron disc (not spoked) 24” wheels expertly balanced on sealed for life heavy duty bearings. A large bristle brush is mounted on the lower wheel to help keep the tires clean and extending their life. The worktable area is a 27.5” x 24” heavy ribbed cast iron table which sits atop a heavy steel trunnion system with adjustment for up to 45 degree tilting of the table and 15 degree left. A 3/8” x ¾” miter guide slot is standard for use with most miter gauges. The heavy duty double ball bearing blade guides are robust and easy to adjust for any sawing needs from fine finish work, veneer cutting or heavy resawing. Bandsaw blade changes are eased with the help of a hinged blade guard above the bandsaw guides. The guides easily rise and fall with use of a large handwheel and a rack and pinion drive system.

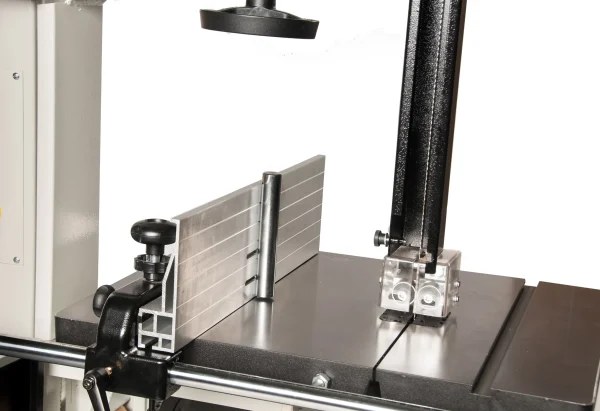

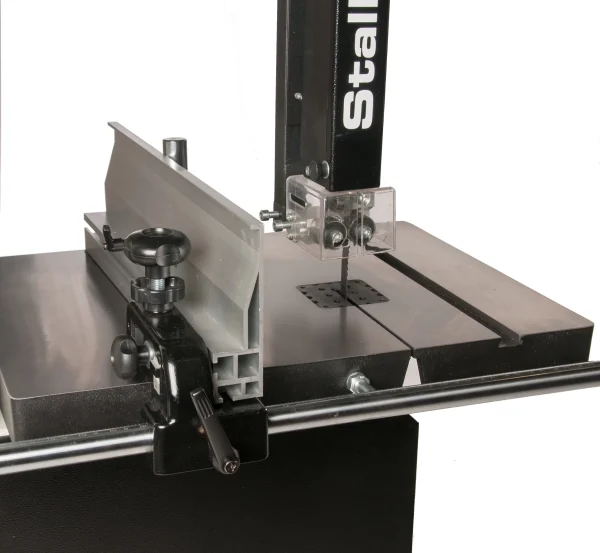

A Stallion “Drift Adjust” cast iron body with 6” tall aluminum rail bandsaw fence allows for simple tool less adjustments to compensate for blade drift. A resaw drift bar is also included on the fence. A blade tension indicator is standard for up to 35mm blade width.

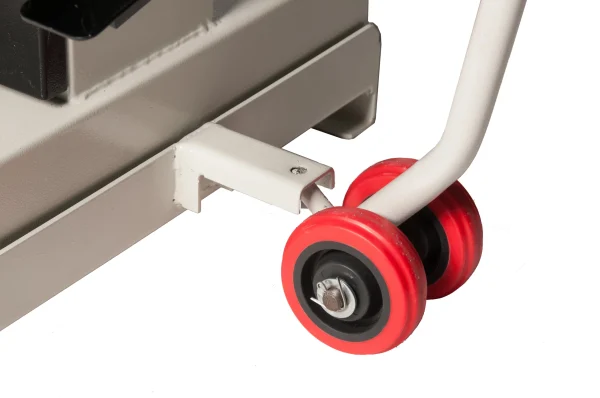

Safety features include magnetic safety switch with overload and under voltage protection and micro switch protected doors which will not allow the saw to start if the doors are open or if the door is opened during operation the saw will shut down. A foot brake to speed stopping times is also included and features a safety micro switch that shuts off the power when activated. Also a really nice feature is the LED light bar which lights up the entire work area with very bright light…..a really nice feature for older eyes. The saw also features a mobility kit as standard to make movement in the shop a breeze.

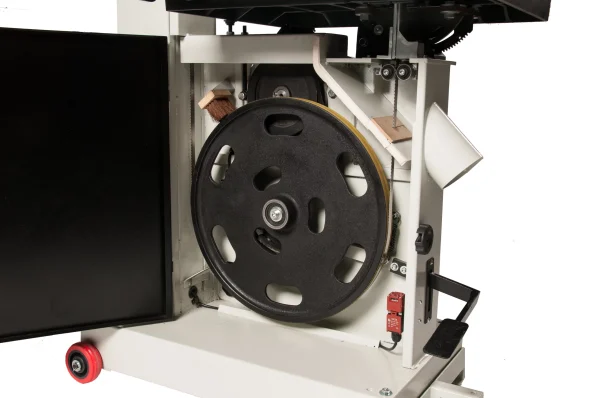

Dust collection on the Stallion HD band saw is easily performed with dual 4” dust inlets. The side inlet which sits just under the lower blade guides has a wooden insert to help capture most of the dust before entering the frame of the saw where the second 4” inlet is placed.

The Stallion HD Series of Band Saws are truly in a class of their own, built with the attitude, grace, strength, performance and beauty you would expect…. from a Stallion!

Specifications:

• 16 AMP 5.5 HP 220 Volt Three Phase Motor
• 176” Band Saw Blade (not included)
• Blade Capacity is 1/8” – 1.25” 176″
• Solid Cast Iron 24” Dia Wheels
• Resaw Height of 14” under Blade Guides
• Heavy Duty Double Ball Bearing Blade Guides
• Very Bright LED Light Bar Aluminates Work Area
• Magnetic Safety Switch w/overload and under voltage protection
• Micro Switch Protected Doors
• Foot Brake w/Micro Switch motor kill
• Stallion “Drift” adjustable Fence
• Blade Tension Indicator Gauge
• Easy Access Hinged Blade Guard
• Heavy Rack and Pinion Guide Height Adjustment
• Huge 27.5” x 24” Cast Iron Work Table with Miter Slot
• Robust Welded Steel Table Trunnion System
• Table Tilt to 45 degree right and 15 degree left
• Table Height 35”
• Two 4” Dust Inlets
• Mobility Kit Included
• CSA Certification
• Floor Space 35” x 47.5” x 79.5”
• Shipping Crate 44” x 30.5” x 84”
• 770 Pounds Shipping Weight
