Description

The Stallion CWI-F25R bandsaw resaw fence system was developed by CWI Woodworking Technologies for smoothness of operation and accuracy in the cut. The F25R can be used on all bandsaws with tables up to 21” wide.

The 25” long x 6” tall black anodized aluminum fence rides on a double ball bearing system for ease of movement on the 29” long front black anodized aluminum rail and can be easily adjusted to accommodate for bandsaw drift.  There is a  magnified lens on the fence to allow easy reading of the supplied self-adhesive measurement scale. The user can place the scale to read right or left up to 20” each way upon initial installation.

The rails of the F25R easily slide right or left to allow for different cutting measurements or for blade changes by simply unlocking two lock knobs underneath each rail. The rails each have two mounting brackets which need to be bolted to the bandsaw table. If holes are not already provided the user will need to provide two ¼” holes on both the front and back sides of the table upon installation to mount the fence to their bandsaw.

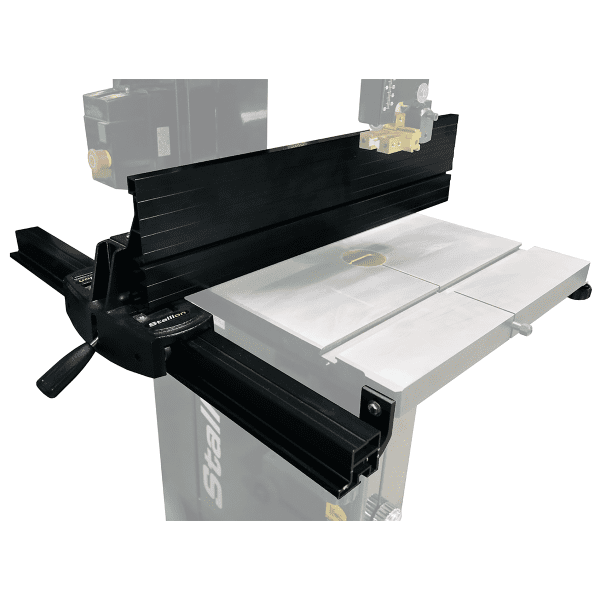

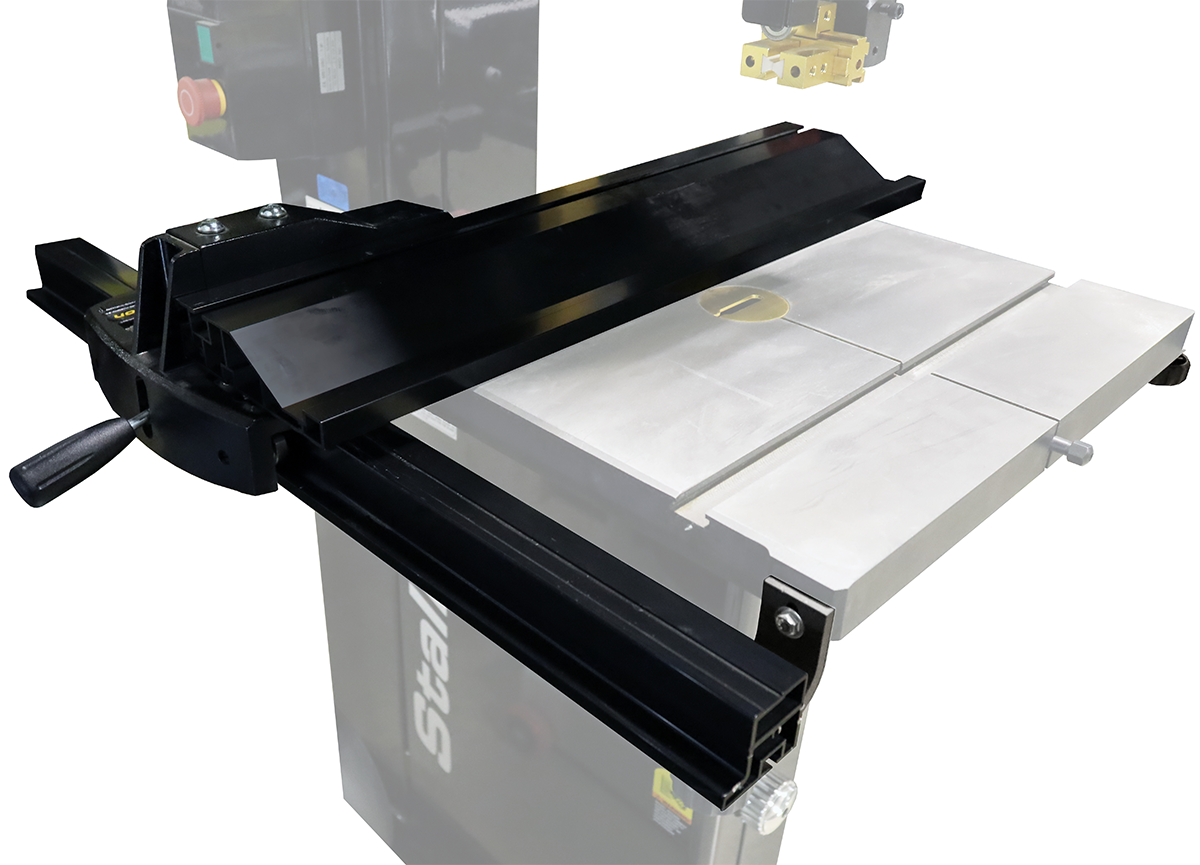

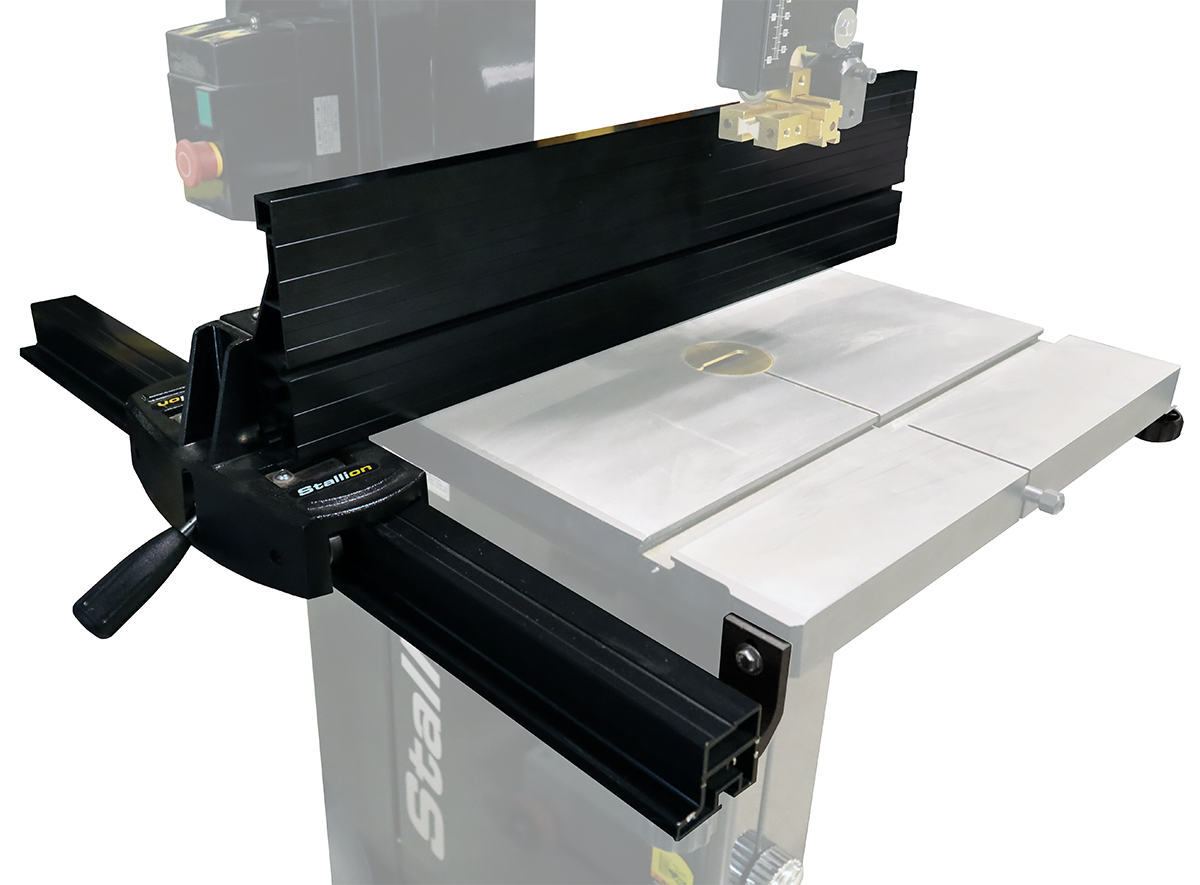

The fence itself can be used in two positions. In the vertical position for tall resaw work as well as in the horizontal position for use with extra thin stock. There is a t-slot track on the face to allow mounting of fence boards, or other accessories the user may want to use.
