Tormek Drill Bit Sharpening Attachment

  • DBS-22 Tormek Drill Bit Sharpening Attachment

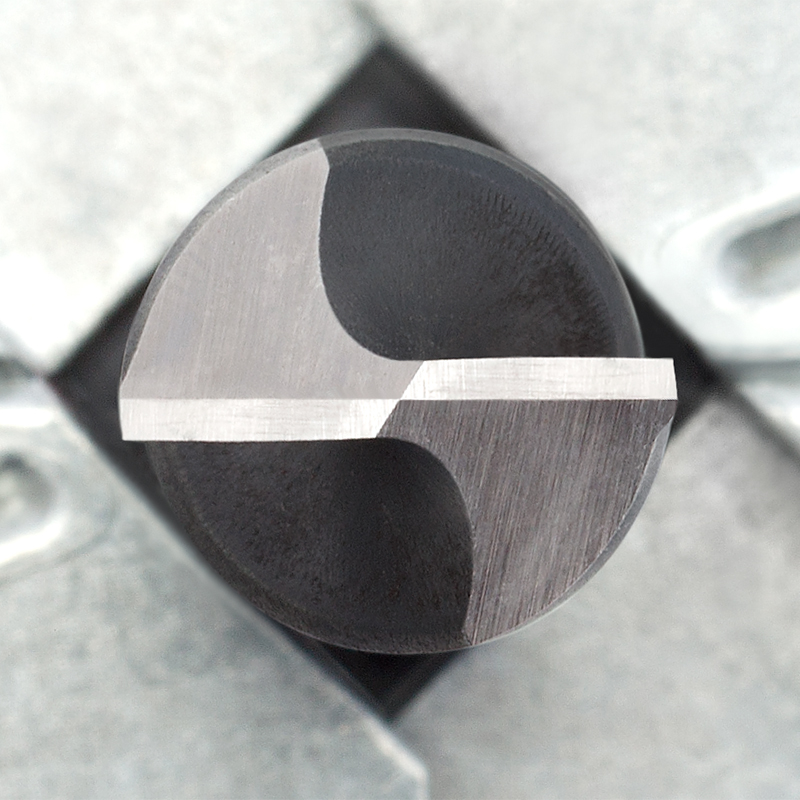

  • DBS-22_close up_800x800

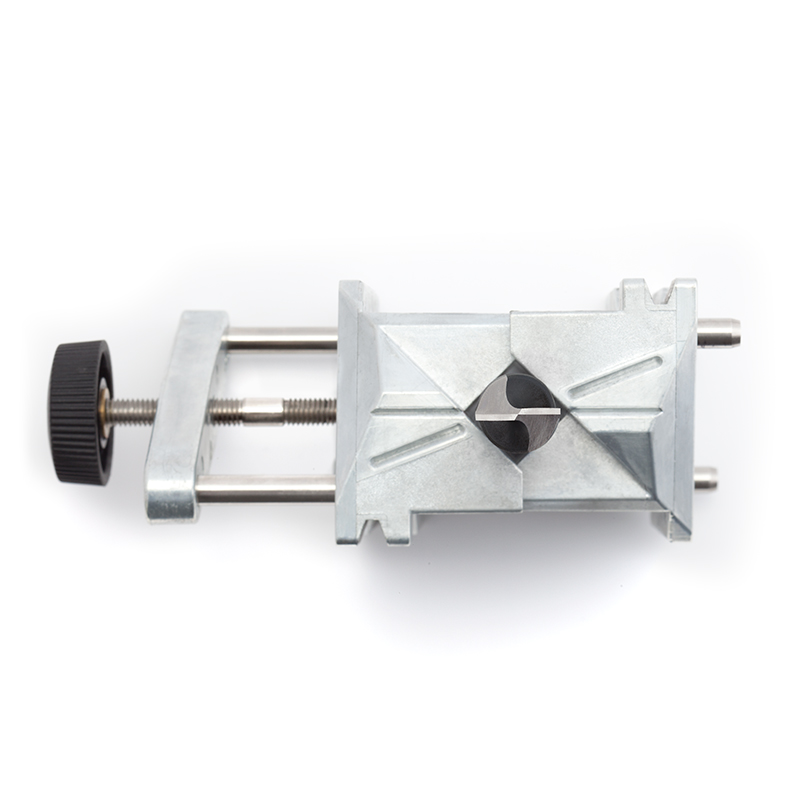

  • DBS-22_drill in jigg_800x800

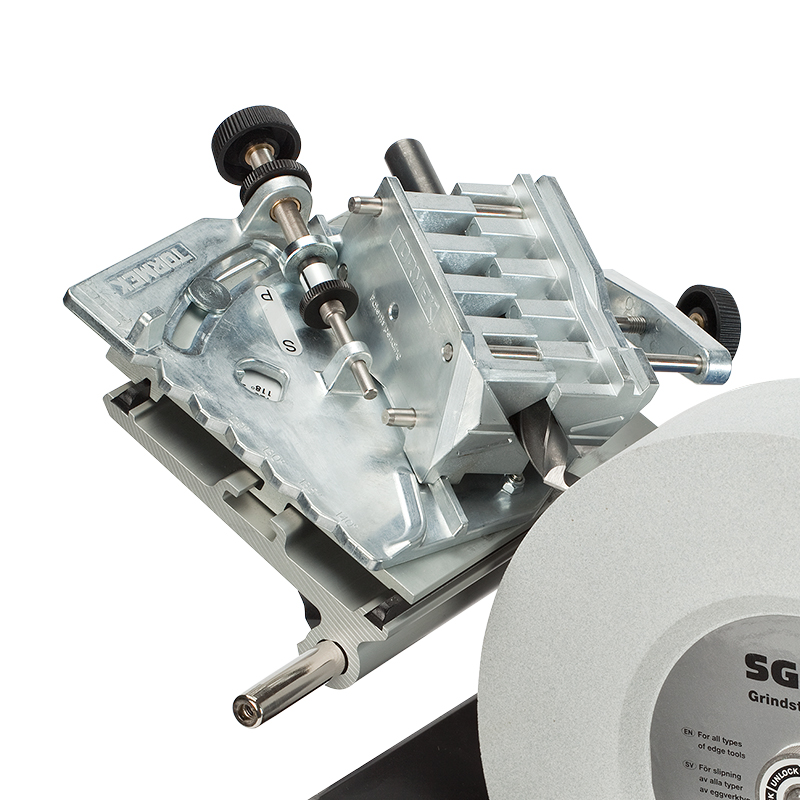

  • DBS-22_on machine_800x800
  • DBS-22 Tormek Drill Bit Sharpening Attachment
  • DBS-22_close up_800x800
  • DBS-22_drill in jigg_800x800
  • DBS-22_on machine_800x800

Tormek Drill Bit Sharpening Attachment

$469.95

Out of stock

The DBS-22 Drill Bit Sharpening Attachment allows you to sharpen your drill bits from 3 mm (1/8″) to 22 mm (7/8″) in diameter with maximum precision and to give a four-facet point for best performance.

The optimum tip and lip relief angle can be set for each drilling operation, taking into account the drill bit size and material. You can also sharpen broken bits back to the perfect shape.

Why DBS-22 Drill Bit Sharpening Attachment?

  • Sharpens a four-facet point that drills more efficiently and lasts longer.
  • Sharpens drill bits with outstanding precision.
  • Extends drill bit service life more than four times over compared to traditional S-tip drill bits.
  • Works best with Tormek T-8, as well as older models.
Four-facet point that lasts longer

The patented DBS-22 Drill Bit Sharpening Attachment is used to create a four-facet point that provides great cutting characteristics as the cross-cut of the drill bit is pointed instead of being almost flat, as on many other drill bits. A four-facet point won’t wander and requires significantly less drilling pressure compared to a conventional cone point drill.

A precision-sharpened four-facet point also reduces heat build-up, giving a very long service life for the drill bit. Independent tests show that drill bits sharpened using Tormek equipment last more than four times longer than new conventional drill bits.

Controlled sharpening

The risk of overheating and microcracking or loss of hardening of the steel is eliminated by working with the natural laws and cooling the edge continuously. You have full control at all times and can see how sharpening is progressing. A magnifying glass is included for smaller drill bits to help you line up the bit in the jig and see the results of your sharpening.
