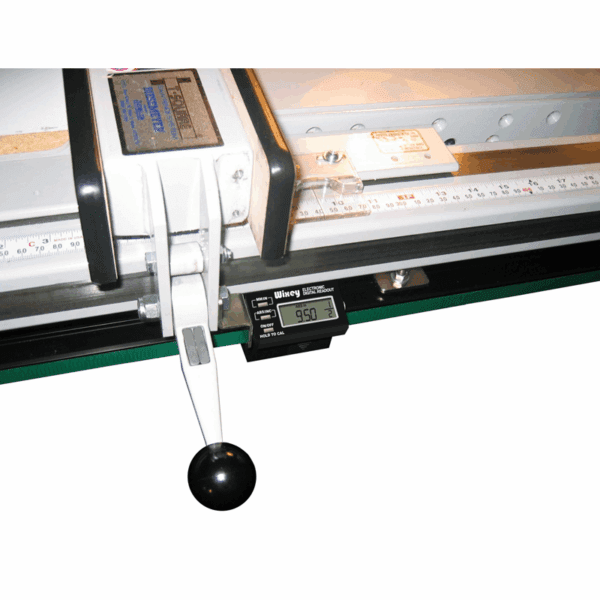

The Wixey Saw Fence Model WR700 fits most high end fence systems and measures up to 60 inches long. It easily mounts to Beisemeyer, Powermatic, Jet, HTC and other T-Square fences as well as Delta Unifence; and Dewalt, Vega and other round rail fences. The innovative readout magnetic attachment system allows you to remove and replace your rip fence as quickly as ever without losing calibration.

Easy Set Up:

• It is easy to attach the Wixey Saw Fence Readout to your existing table saw fence. It comes with simple mounting brackets and detailed instructions that allow you to mount this on many models. It comes complete with a drill bit and 4 self tapping screws to mount the measuring track to the bottom of your fence

  Precise Measurements:

• The large easy to read display reads in inches with fractions or millimeters. The fractions are displayed using “Precise Fraction Technology” which gives you 4 times the accuracy of other fraction readouts.

  Easy to Calibrate:

• Just move the fence so that it lightly contacts the blade, hold the calibrate button to zero the readout, and the WR700 will accurately display the distance from the fence to the blade

  Easy to Use:

• The innovative readout magnetic attachment method allows you to remove the fence in a flash, perform operations without the fence, and replace it without losing calibration or time.

  Measuring Length:

• 60 in. (1500 mm)

  Resolution:

• Decimal = .005 in.
• Fraction = 1/32 in.
• Metric = .1 mm

  Accuracy:

• Decimal = +/- .002 in. per foot
• Fraction = +/- 1/500 in. per foot
• Metric = +/- .13 mm
• Battery: 6 months life; type CR 2032

  Functions:

• Constant memory retains calibration even when OFF
• Incremental measuring mode
• Absolute measuring mode
• Millimeter, Inch and Fraction readout
• Auto shut off
