The DustFX WorkShop series of portable air cleaning equipment is designed for use by woodworkers who truly care about the environment they work in.

When you browse through the available DustFX machinery and accessories you will find benefits like balance machined aluminum impellers, high performance “Hepa” filtration, easy portability, cyclonic air movement and other features that make DustFX superior to any other brand of portable dust collection. DustFX is “your lungs friend”.

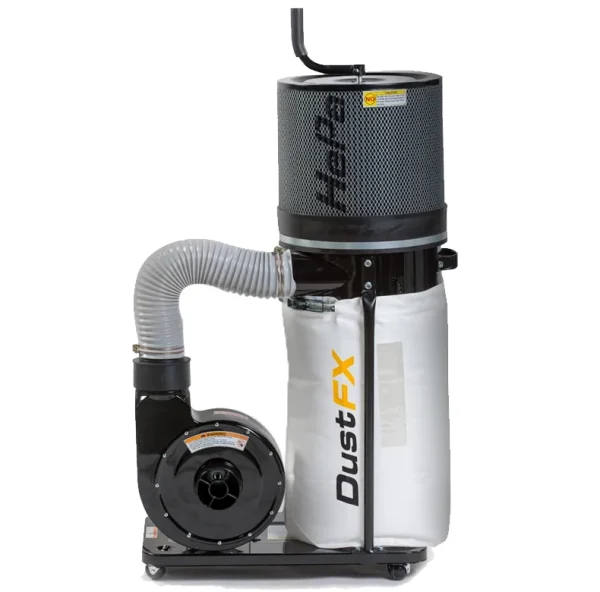

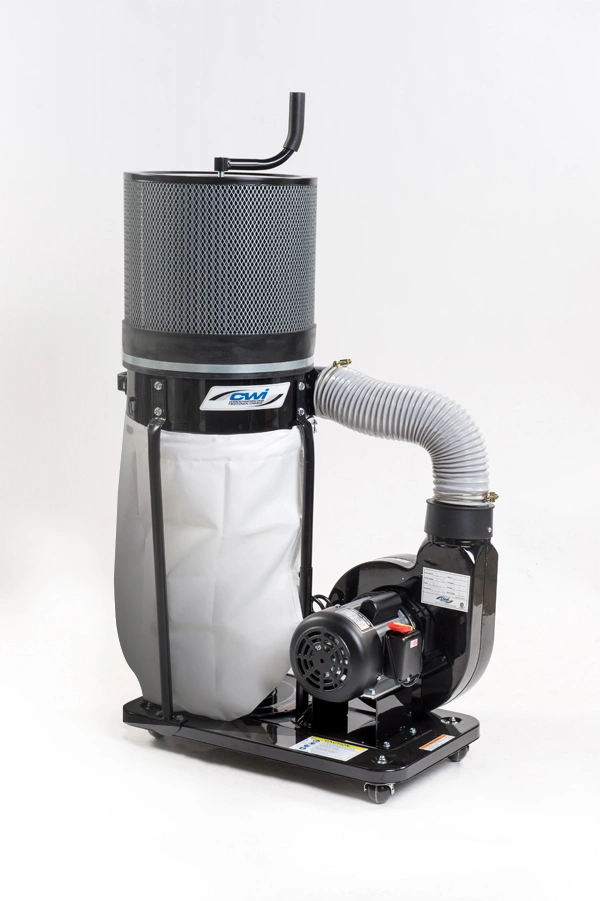

The CWI-DCP005H is a 700 cfm small portable collector with a 1 HP/12 amp 110 volt motor with a removable safety start switch. This machine is loaded with high performance features starting with our “Hepa” manual clean canister filtration. Advanced performance Hepa filtration will filter out 99.6% of all dust particles .3 to .5 micron and 100% of all dust particles 1 micron and larger. To clean the canister simply move the cleaning handle a few rotations upon completion of each use. We also utilize a lower reusable cloth bag with a viewing window to monitor dust collection levels. It seems most competitors in today’s market supply machines with a replaceable plastic lower bag. Customers very quickly learn that these plastic bags are very expensive, damage easily, are difficult to install/remove and just don’t last. Both our top Hepa canister and bottom DustFX cloth bag use a quick release spring tension aluminum bag clamp. The bag clamp slides though a fully sewn clamp holder in the bag itself to make a perfect dust seal as well as making removal/replacement of the bag a breeze.

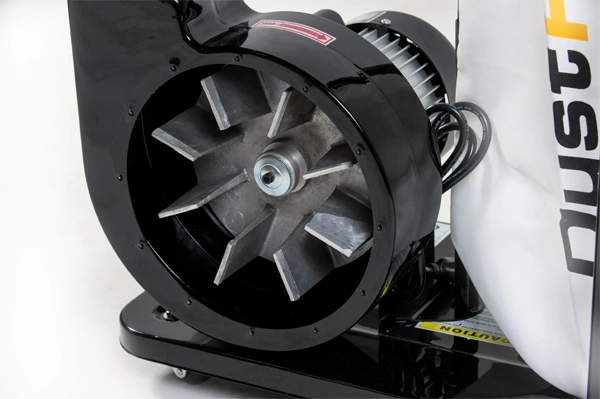

Another major advantage to DustFX dust collectors is the use of a balance machined cast aluminum impeller for improved performance. Not only does aluminum not produce sparks from accidently sucked up screws or other metal objects, but also because of the machining process the cast aluminum impeller runs smoother and quieter. The CWI-DCP005H utilizes a 9” fin diameter spacing with 3” long fins to create excellence in performance with a 4” dust inlet which features a screen to block large pieces of wood from damaging the impeller. Sound level is only 70db at 10 feet from the machine. For portability the machine features four multi-directional casters to make movement around the shop with ease. DustFX not only talks about their quality and advanced performance they also back it up with a five year home use warranty.


  • Balance Machined Cast Aluminum Impeller
  • Explosion Proof Impeller Design
  • Reusable Cloth Lower Collection Bag w/Viewer Window
  • Dust Capacity of 65 Litre

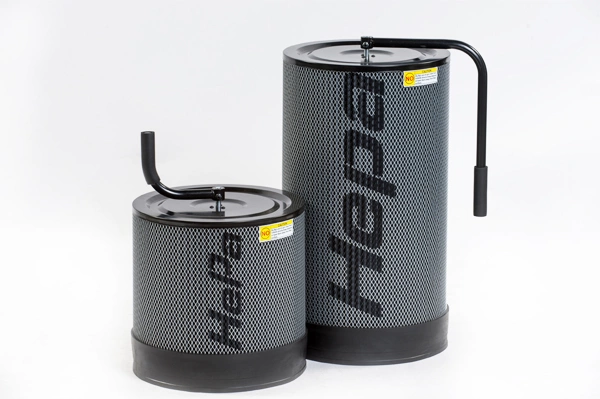

  • High Performance Hepa Manual Clean Canister Filter 14.5” Dia.
  • Filters 99.6% of .3 micron and 100% of 1 Micron and larger
  • Filter Surface Area = 1.31 sq. meters
  • Quick Release Aluminum Bag Strap Clamps w/Full Sewn Clamp Pockets
  • Plastic Bag Holder Clips for Optional Plastic Lower Dust Bags
  • Multi-Directional Casters for Ease of Movement
  • 700 CFM
  • Sound Level @10’ is 70db
  • 5.6” Water Lift
  • 4” Inlet Diameter
  • Impeller Safety Shield for large Debris
  • TEFC Industrial Duty Cycle 1 HP Motor
  • 12 Amp 110/1/60
  • CSA Electrics with Removable Safety Switch
  • Floor Space 660mm x 380mm x 1280mm
  • Machine Shipping Dimensions 675mm x 410mm x 455mm (26.6in x 16.15in x 18in)
  • Filter Shipping Dimensions 435mm x 435mm x 445mm (17.15in x 17.15in x 17.6in)
  • 74 Pounds Shipping Weight
Weight 69.5 kg
