Description

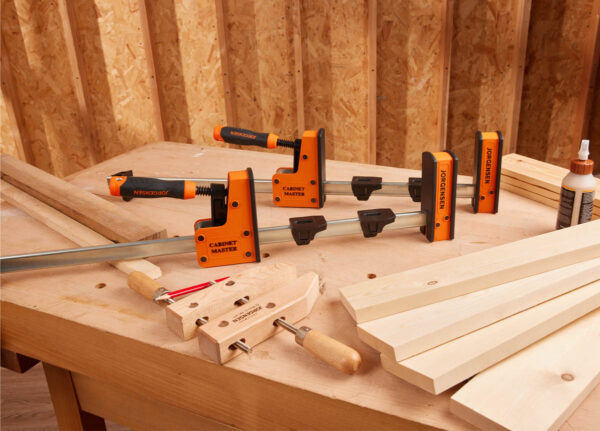

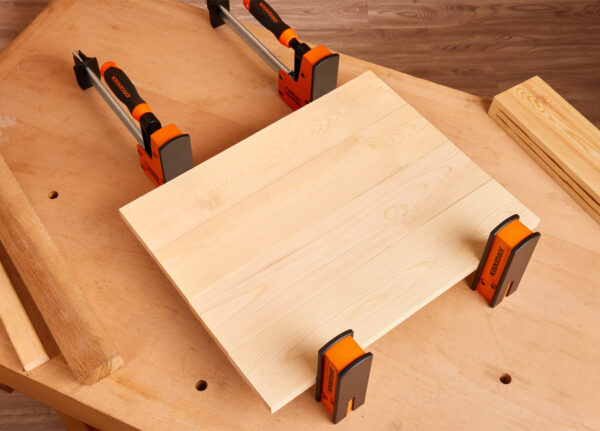

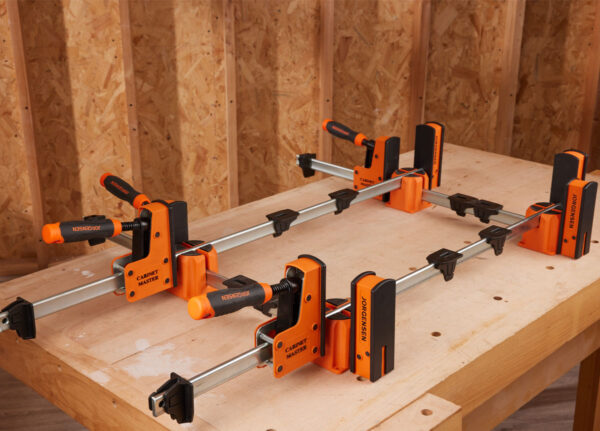

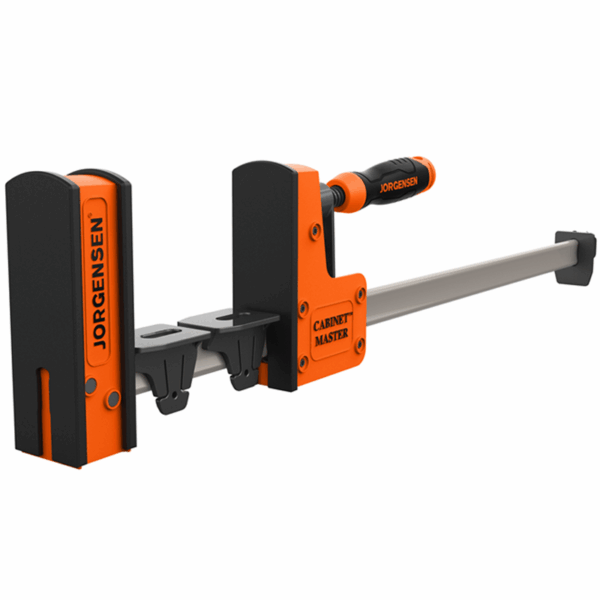

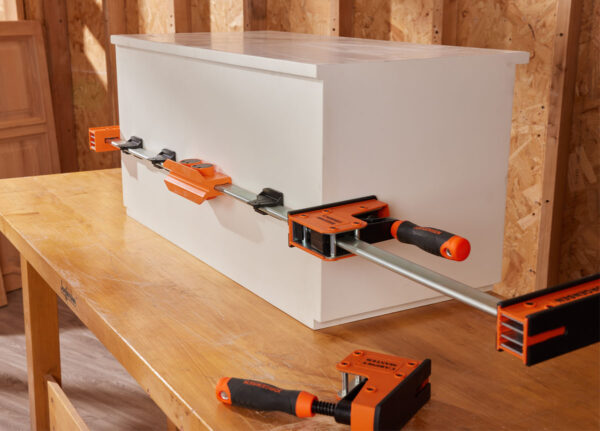

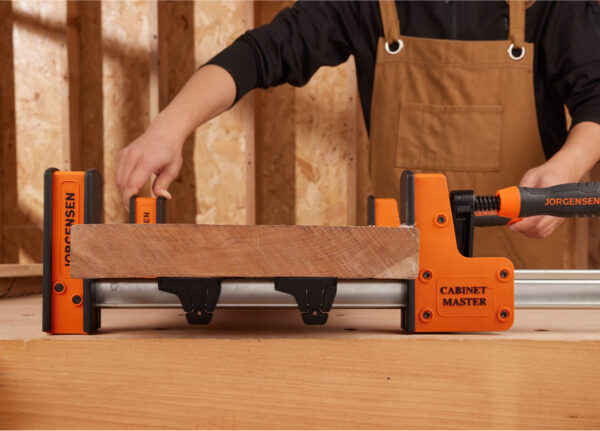

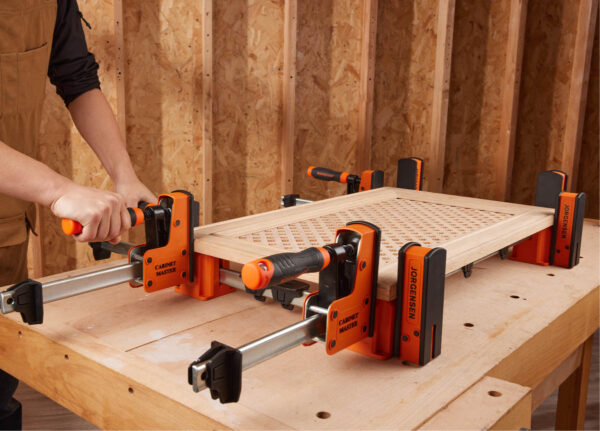

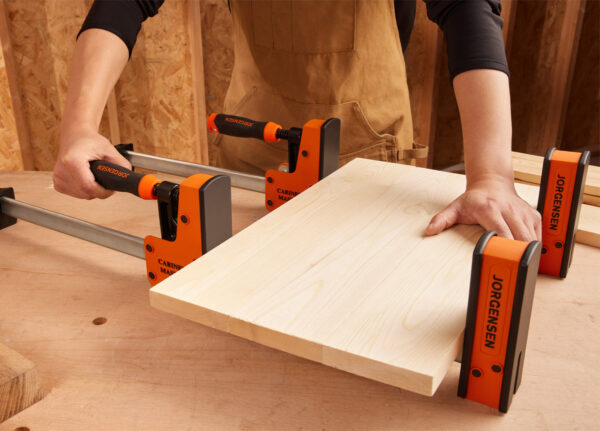

The Jorgensen Cabinet Master 90° parallel jaw bar clamp is a cabinetmaker’s best friend. Its large jaws distribute clamping pressure over wide areas and stay parallel to assure square corners and prevent workpieces from bowing or lifting. This makes it the perfect clamp for flat‑panel, box, cabinet, frame, and panel‑door assemblies – or any project that requires squareness or evenly applied pressure. A built‑in clamp stand allows for one‑handed use and quicker sliding‑head adjustment.
The new Pro Series of Cabinet Master Clamps feature five major upgrades.
+46% Clamping Capacity – The improved clamping mechanism creates more force, up to 2200lbs
Improved Steel Thread – The handle thread is now stronger and can exert more clamping power

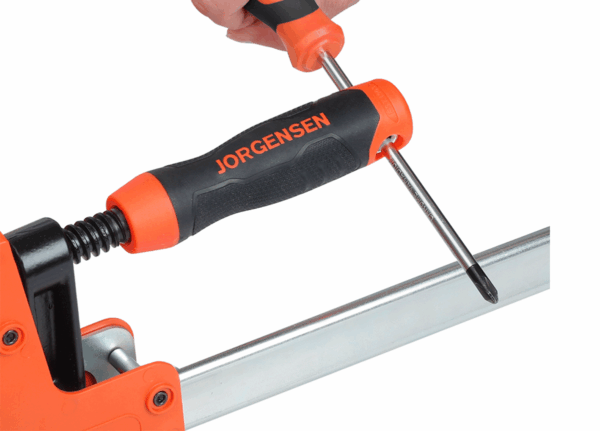

Improved Handle Grip – The uniquely contoured grip allows for greater torque by hand.

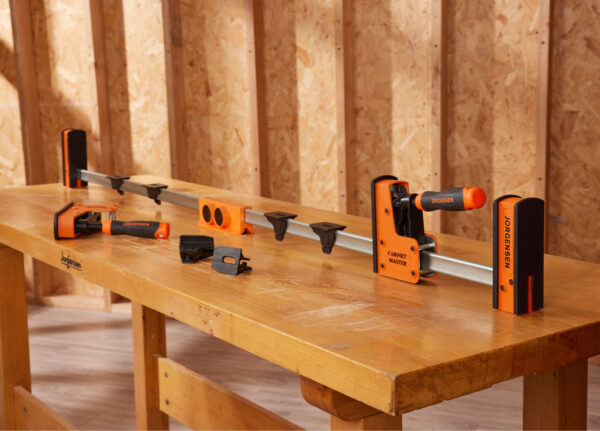

Improved 2-in-1 Clamp Stand – The new Clamp Stand can also be used as a glue separator
New Soft-Landing System – The sliding jaw will not free fall when used or carried vertically, preventing injury from a rapid fall of the sliding jaw.
| Product # | Max Opening | Reach | Clamping Force | Bar |
|---|---|---|---|---|
| #8112 | 12″ | 3 7⁄8“ | 2,200 lb. | 1 3⁄16” × 3⁄8“ |
| #8118 | 18″ | 3 7⁄8“ | 2,200 lb. | 1 3⁄16” × 3⁄8“ |
| #8124 | 24″ | 3 7⁄8“ | 2,200 lb. | 1 3⁄16” × 3⁄8“ |
| #8136 | 36″ | 3 7⁄8“ | 2,200 lb. | 1 3⁄16” × 3⁄8“ |
| #8150 | 50″ | 3 7⁄8“ | 2,200 lb. | 1 3⁄16” × 3⁄8“ |
| #8160 | 60″ | 3 7⁄8“ | 2,200 lb. | 1 3⁄16” × 3⁄8“ |
| #8172 | 72″ | 3 7⁄8“ | 2,200 lb. | 1 3⁄16” × 3⁄8“ |
