Rivolver HD 4.5″ 4-Jaw Lathe Chuck & Jaw Kit

$399.95

This Rivolver heavy-duty 4-jaw wood lathe chuck kit includes the accessories you will need to handle larger woodturning projects and enhance the performance of your wood lathe.

In stock

Pay Over Time

SKU: CWI-WLC4.5-KT Categories: , Brand:

Description

This Rivolver heavy-duty 4-jaw wood lathe chuck kit will provide extra muscle for those larger woodturning projects.

With its case-hardened nickel-plated body and 4.5” diameter it will handle those larger projects with ease. The kit includes the accessories you will need to handle larger woodturning projects and enhance the performance of your wood lathe. The kit includes the Rivolver 4.5″ 4-jaw chuck with 1 1/4″ – 8 TPI threads (adaptors for other sizes available) as well as the following accessories:

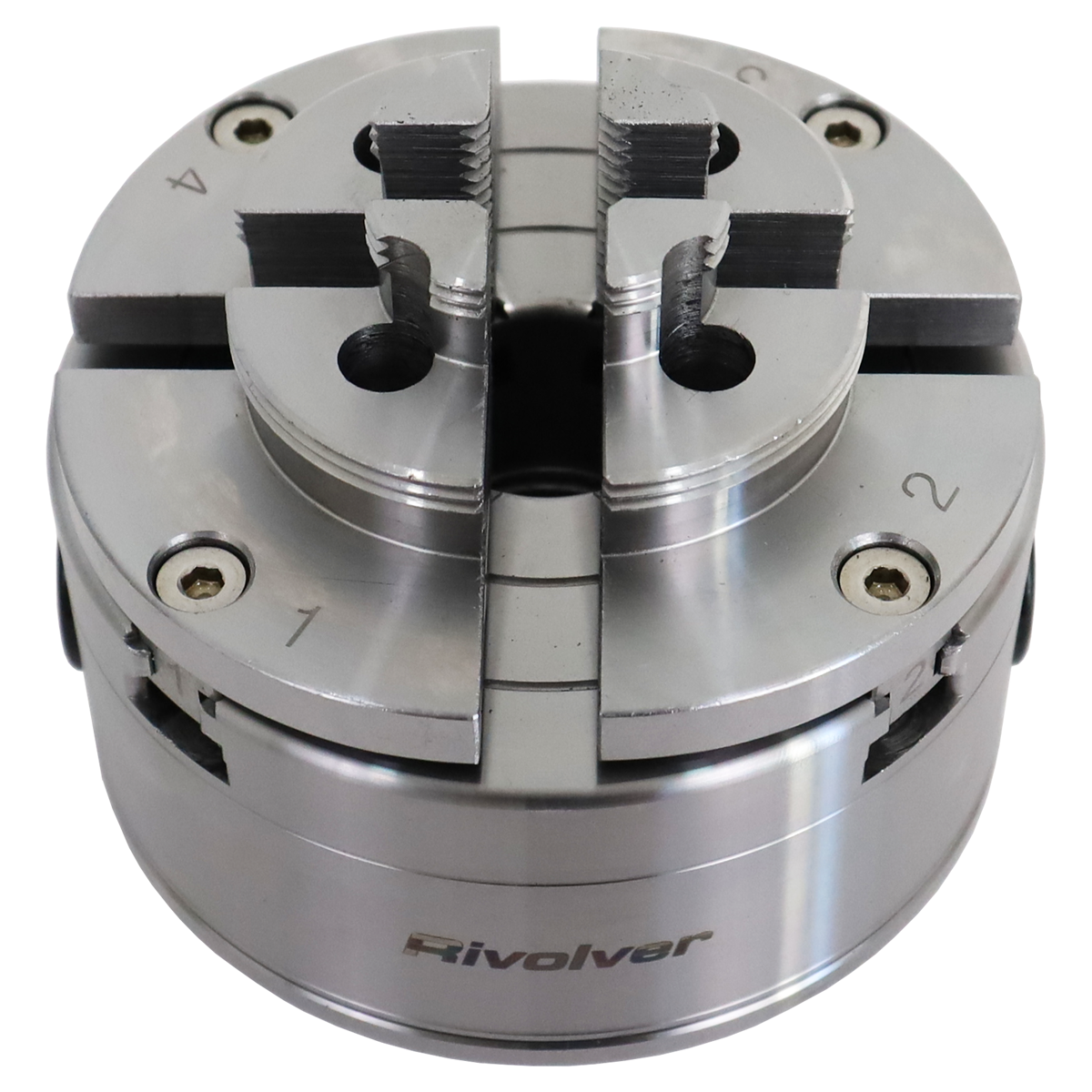

  • Step Jaws – have a serrated edge both internally and externally. They give great flexibility by combining standard sized dovetail jaws and pin jaws

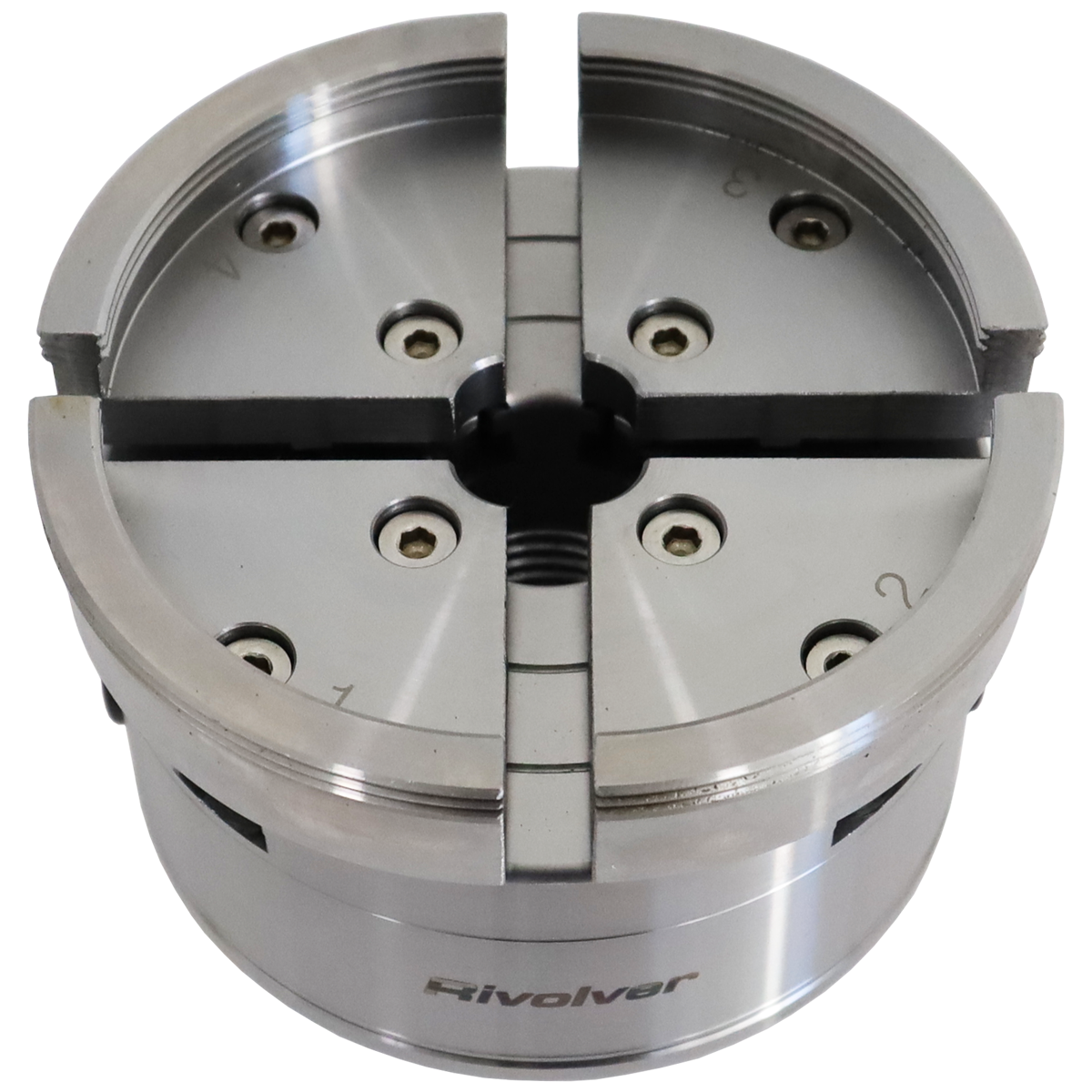

  • Wide Jaws – have a serrated edge both internally and externally and can grip much larger pieces than the standard jaws.
  • Pin Jaws – allow smaller pieces to held than the dovetail jaws. The inside is smooth and parallel, the outside is serrated for maximum grip.

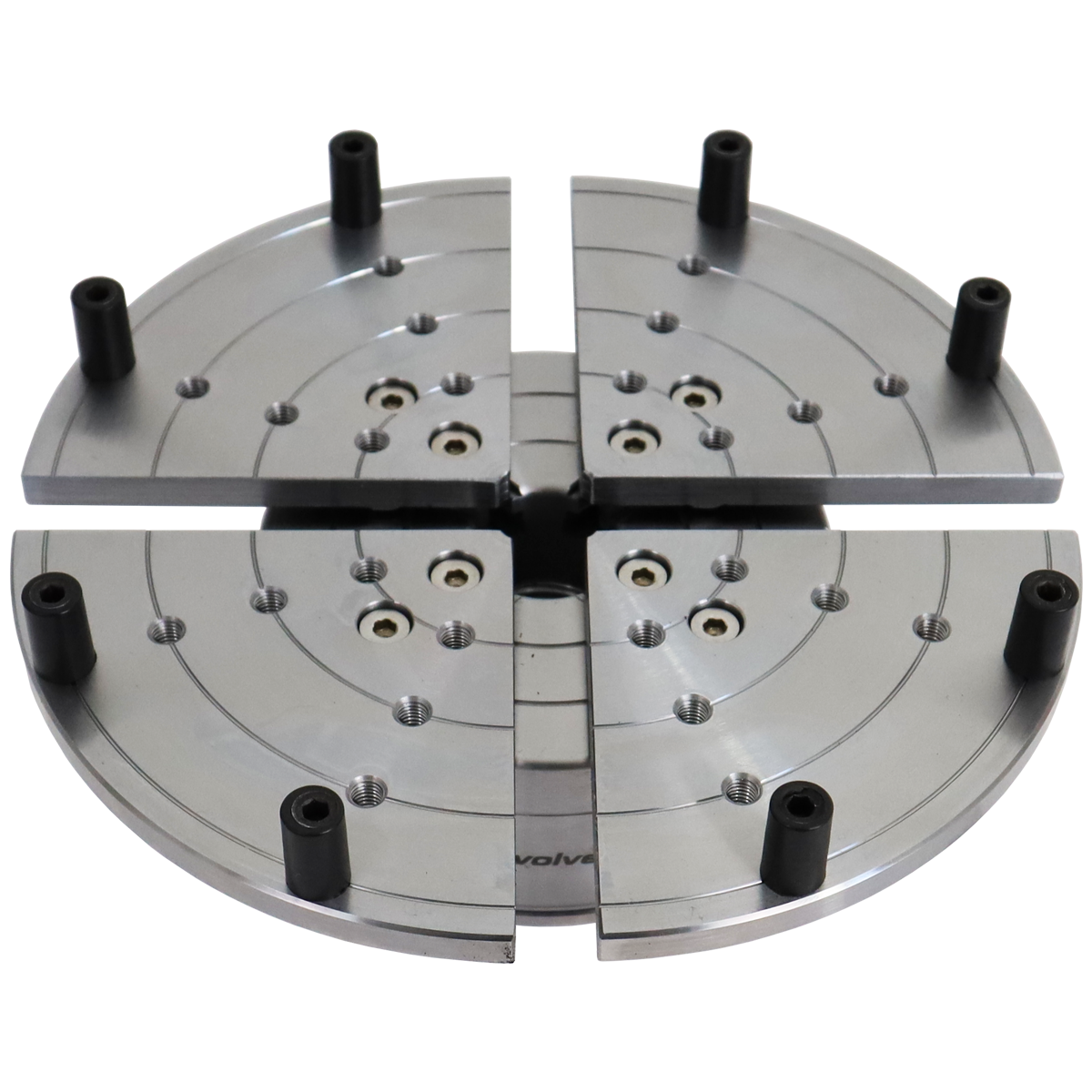

  • 7.5″ Flat Jaws – are most commonly used for remounting finished bowls to re-shape the outside or to remove unwanted marks. Comes with 2 sets of 8 rubber coated fittings, 13mm & 17mm long to hold the work .
  • Dovetail Jaws – can grip the workpiece both internally or externally depending on the style and shape of the piece.

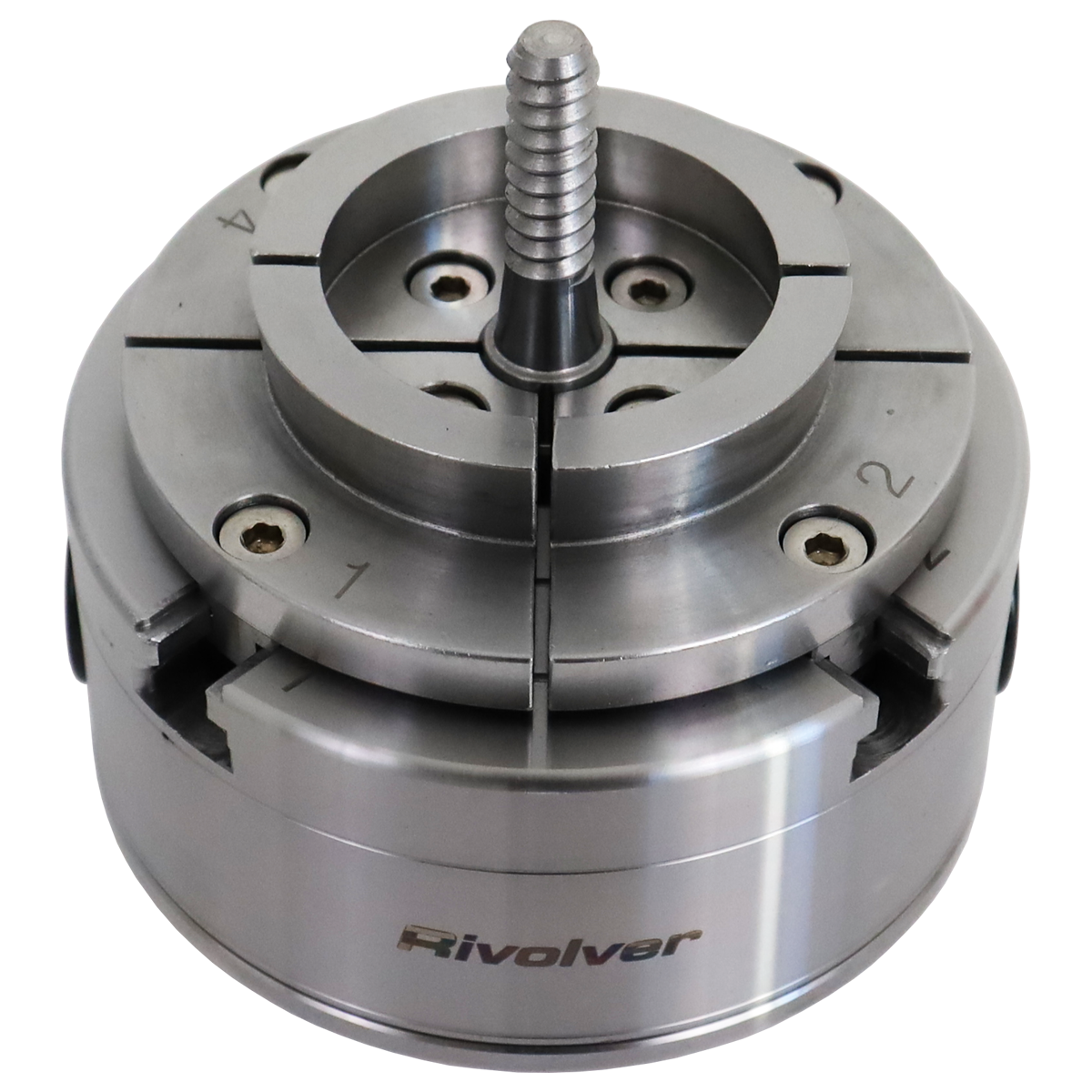

  • Woodworm Screw – for temporary mounting of bowls

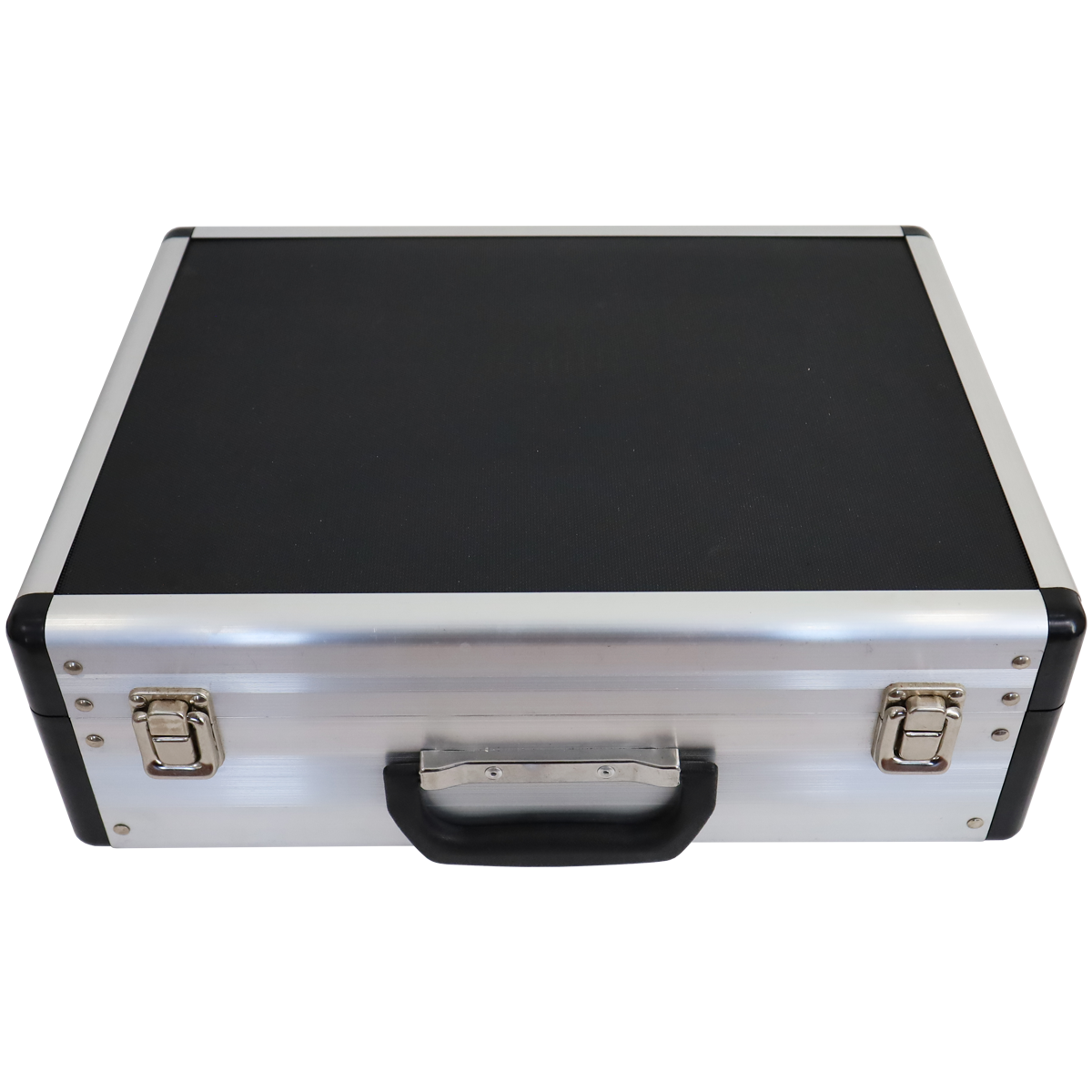

  • Included Aluminum Carry Case

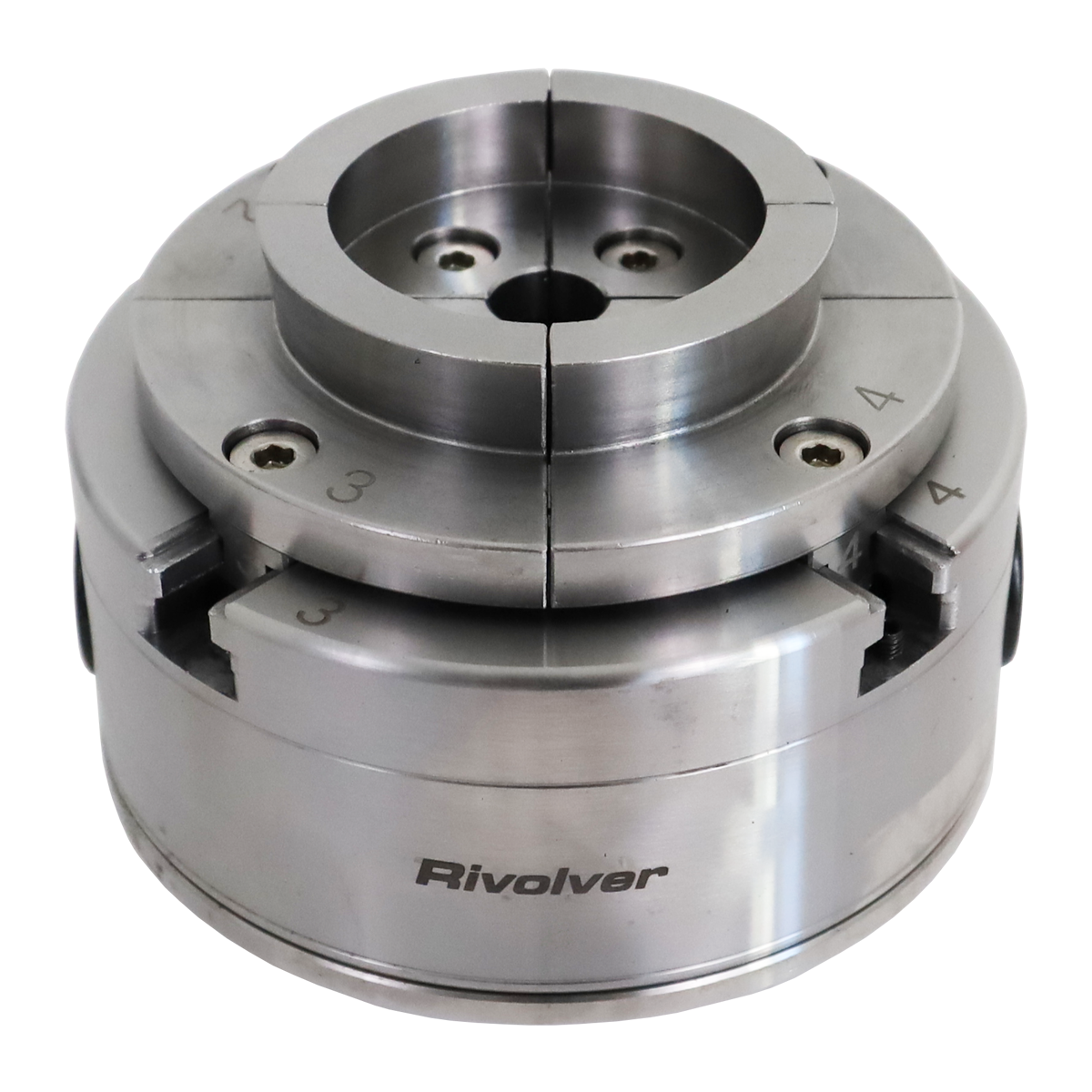

The Rivolver 4.5″ four jaw wood lathe chuck has a nickel-plated body, case-hardened and coated with a dry, long-lasting lubricant. Precisely made, the chuck body typically has less than 0.001″ of runout and less than 0.005″ with the jaws mounted. The WLC4.5 is standard with 1.25″ x 8 tpi threads but adaptors are available for other thread sizes.



See the list for Popular Lathe Brands and headstock thread size:

  • Rivolver WL650, WL825: 1 1/4″ x 8tpi
  • General 260, 25-650: 1 1/4″ x 8 tpi
  • Laguna 15″ and larger: 1 1/4″ x 8tpi
  • Powermatic 4224B, 2020B, 3520C: 1 1/4″ x 8tpi
  • Craftex CX802: 1 1/4″ x 8tpi
  • Rikon 70-3040: 1 1/4″ x 8tpi
