Description

Experience Precision and Power with the Stallion CWI-B1005 10″ Bench-Top Band Saw

Introducing the all new Stallion CWI-B1005 10″ Bench-Top Band Saw – the ultimate tool for woodworkers seeking precision, power, and efficiency. Perfect for smaller projects or shops with limited space, this band saw combines robust performance with user-friendly features to deliver exceptional results every time.

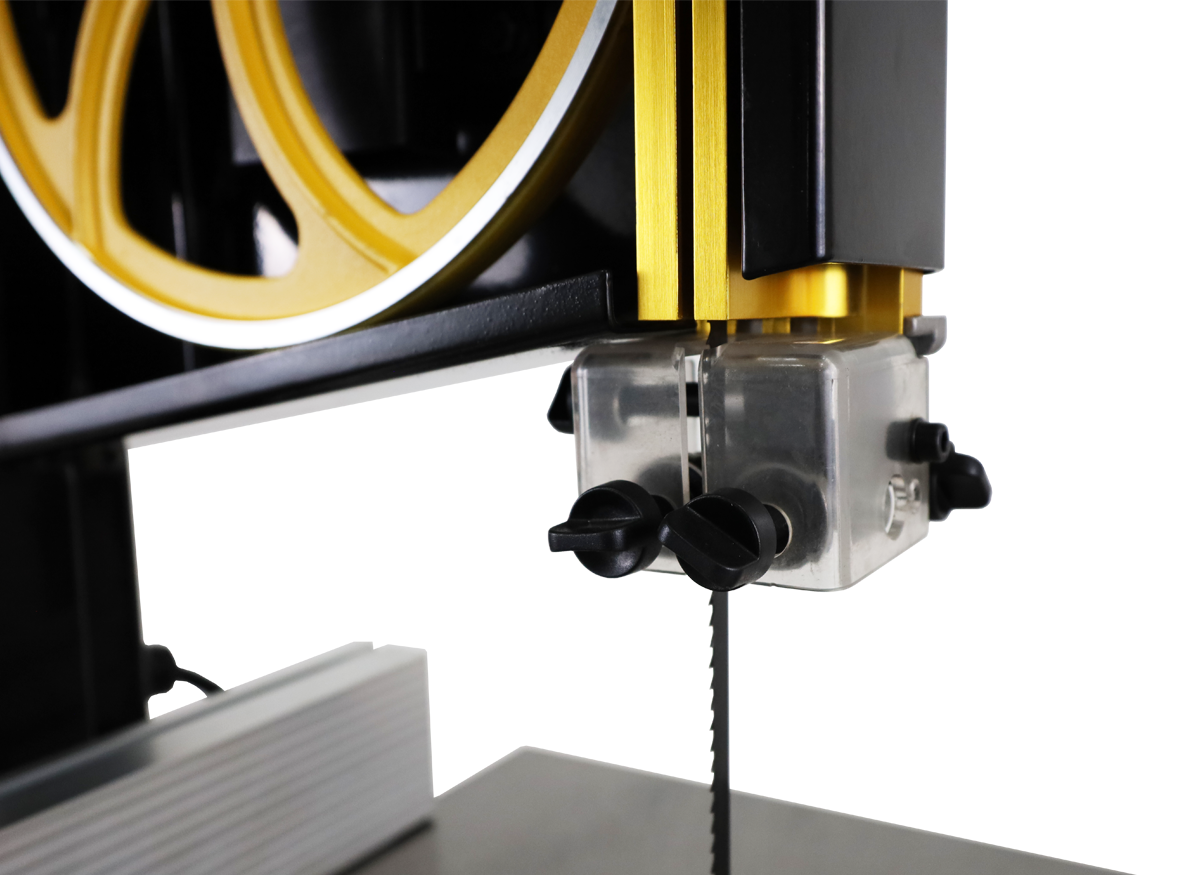

The Stallion CWI-B1005 boasts a spring-loaded, tool-less guide system that ensures accurate cuts and smooth operation with quick adjustments. The quick-release blade tension lever saves time by allowing fast blade changes and tension modifications. With dual blade speeds of 1,515 or 3,250 feet per minute, you can match the cutting requirements of various materials seamlessly. Powered by a strong 1/2 HP motor, this saw delivers the necessary power for a wide range of cutting tasks, providing clean and precise results every time.

This saw has a generous cutting capacity for a bench top machine, offering a cutting height of 5 inches and a work piece width of 9-5/8 inches, allows you to handle larger pieces effortlessly. The 2.5” dust port allows keeping your workspace clean and safe when hooked up to a vacuum source. The Stallion CWI-B1005 is constructed with welded steel frame, sturdy door hinges and a heavy-duty tilting cast iron table that ranges from -5 to 45 degrees, making this band saw built for durability and stability, ensuring years of reliable use.

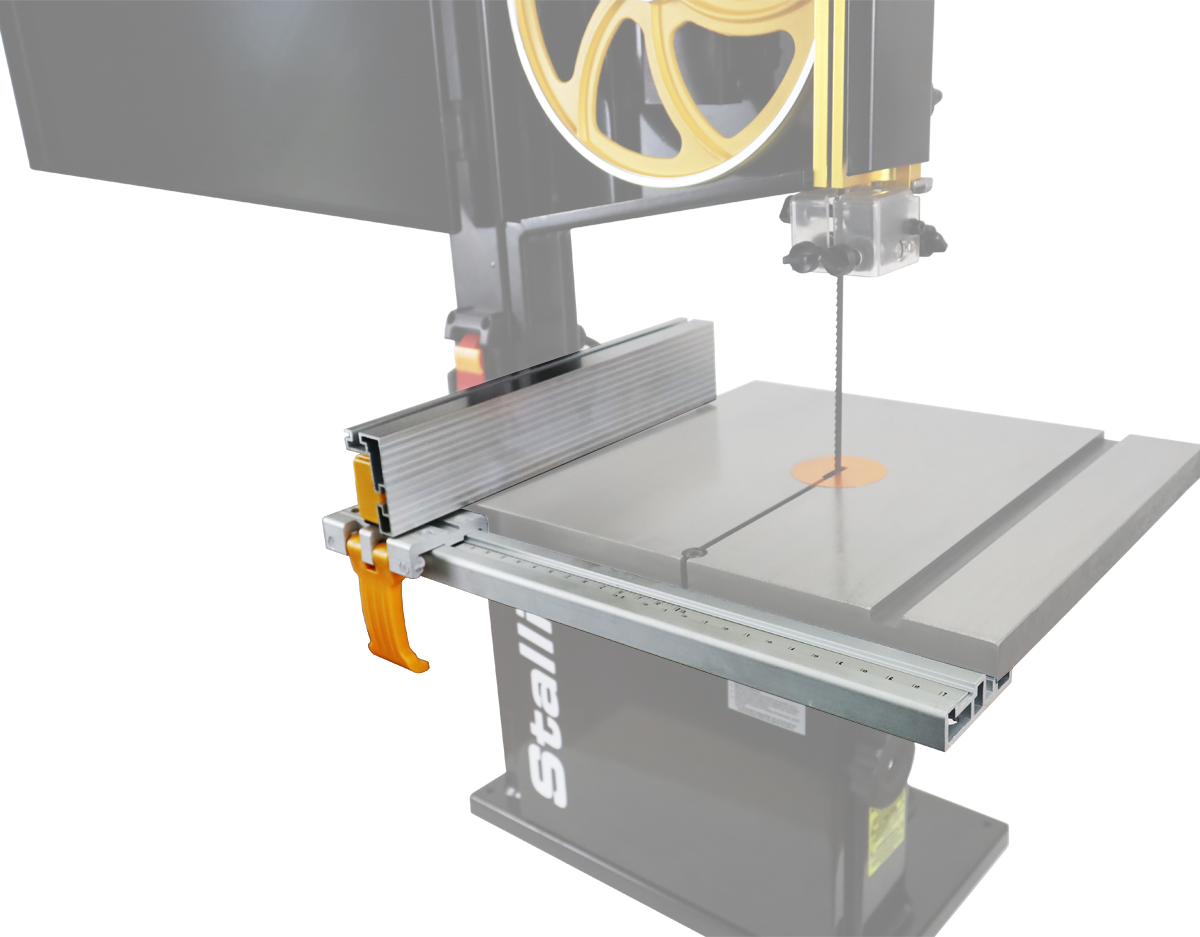

Additionally, the adjustable fence carrier and smooth-sliding rip fence system facilitate accurate rip cuts, while user-friendly cutting adjustments make setup and operation straightforward and hassle-free. The quick release blade tension makes quick work of changing blades or relaxing the blade when not in use. This combination of features makes the Stallion CWI-B1005 an ideal choice for both detailed craftsmanship and smaller woodworking projects.

The Stallion CWI-B1005 10″ Bench-Top Band Saw is designed for woodworkers who demand high performance in a compact form, taking up less space in your shop. Whether you’re crafting detailed pieces or working on more major projects, this band saw will provide the versatility and precision needed to bring your creative visions to life. Invest in the Stallion CWI-B1005 and experience the perfect blend of power, convenience, and durability in a small shop package.

Specifications:

• Motor Horsepower: 1/2 HP
• Motor Amps: 5.5
• Motor Volts: 115V, 60Hz
• Blade Speed: (2) 1,515/ 3,280 ft/min
• Welded Steel Construction
• Cast Aluminum 10” Wheels
• Cutting Capacity Height: 5”
• Cutting Capacity Width: 9-5/8”
• Blade Width: 1/8” – 1/2”
• Blade Length: 70-1/2”
• Quick Release Blade Tension Lever: Yes
• Table Size: 13-3/4” x 12-1/2”
• Table Left Tilt: 5°
• Table Right Tilt: 45°
• Table Miter Gauge: 5/8” x 1/4”
• Table Height to Base: 14-1/2”
• Table Fence Size: 12-1/4” x 2-3/8”
• Blade Guide Type: Tool-less
• Overall Height: 34-1/4”
• Overall Width: 21”
• Overall Depth: 16-1/4”
• Overall Base Size: 15-7/8” x 9-3/8”
• Dust Port: 2-1/2” O.D., 2-5/16” I.D.
• Overall Net Weight: 77.5 lbs.
• Shipping Dimensions: 35.5″ x 14.5″ x 18.5″
• Shipping Weight: 86 lbs
