Description

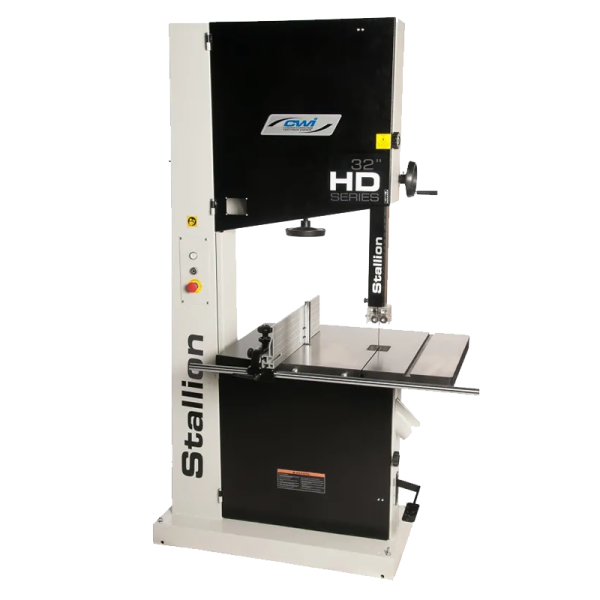

The Stallion CWI-B3220 32” HD Series band saw is a European designed bandsaw with features and benefits that will rival many saws at double the price.
The CWI-B3218 offers 20” of resaw capacity, a heavy duty double welded steel frame, 7.5 HP three phase motor and solid cast iron disc (not spoked) 32” wheels expertly balanced on sealed for life heavy duty bearings. A large bristle brush is mounted on the lower wheel to help keep the tires clean and extending their life. The worktable area is a 27.5” x 40” heavy ribbed cast iron table (27.5” x 33” Main cast table and 27.5” x 7” Auxiliary cast table) which sits atop a heavy steel trunnion system with adjustment for up to 45 degree tilting of the table. A 3/8” x ¾” miter guide slot is standard for use with most miter gauges. The heavy duty double ball bearing blade guides are robust and easy to adjust for any sawing needs from fine finish work, veneer cutting or heavy resawing. Bandsaw blade changes are eased with the help of a hinged blade guard above the bandsaw guides. The guides easily rise and fall with use of a large handwheel and a rack and pinion drive system.
A Stallion “Drift Adjust” cast iron body with 6” tall aluminum rail bandsaw fence allows for simple tool less adjustments to compensate for blade drift. A resaw drift bar is also included on the fence. A blade tension indicator is standard for up to 35mm blade width.
Safety features include magnetic safety switch with overload and under voltage protection and micro switch protected doors which will not allow the saw to start if the doors are open or if the door is opened during operation the saw will shut down. A foot brake to speed stopping times is also included and features a safety micro switch that shuts off the power when activated. Also a really nice feature is the LED light bar which lights up the entire work area with very bright light…..a really nice feature for older eyes.
Dust collection on the Stallion HD band saw is easily performed with dual 4” dust inlets. The side inlet which sits just under the lower blade guides has a wooden insert to help capture most of the dust before entering the frame of the saw where the second 4” inlet is placed.
The Stallion HD Series of Band Saws are truly in a class of their own, built with the attitude, grace, strength, performance and beauty you would expect…. from a Stallion!
- 7.5 HP 220/3/60HZ Motor
- 224.5” Band Saw Blade (not included)
- Blade Capacity is 3/8” – 1.25”
- Solid Cast Iron 32” Diameter Wheels
- Resaw Height of 20” under Blade Guides
- 31” Max Cutting Width
- Heavy Duty Double Ball Bearing Blade Guides
- Very Bright LED Light Bar Aluminates Work Area
- Magnetic Safety Switch w/overload and under voltage protection
- Micro Switch Protected Doors
- Foot Brake w/Micro Switch motor kill
- Stallion “Drift” adjustable Fence
- Blade Tension Indicator Gauge
- Easy Access Hinged Blade Guard
- Heavy Rack and Pinion Guide Height Adjustment
- Huge 27.5” x 40” Cast Iron Table (Includes: 27.5” x 33” Main Cast Table & 27.5” x 7” Auxiliary Cast Table)
- Robust Welded Steel Table Trunnion System
- Table Tilt 0-45 Deg.
- Table Height 40”
- Two 4” Dust Inlets
- CSA Certification
- Shipping Size 57” x 35.5” x 101”
- Net Weight 450kg
- Shipping Weight 470kg
