• Tormek Axe Jig
  • Tormek Axe Jig SVA-170

Tormek Axe Jig

$31.95

In stock

Pay Over Time

Shop Tormek Sharpening Systems at Canadian Woodworker

Description

The Tormek Axe Jig sharpens axes with a round or curved edge.

The tool allows you to set the best sharpening angle for your axe for easy and precise sharpening. The grinding wheel on the Tormek Axe Jig pushes the axe against the rubber stop of the jig which increases the force your hand applies. This allows your to apply the right amount of pressure without any hand cramps.

Why SVA-170 Axe Jig?

  • Make your axes razor-sharp with an edge that lasts longer.
  • Easy and precise sharpening.
  • Works with both Tormek T-4 and Tormek T-8, as well as older models.
  • Works with most types of axes.
Straight or curved edges that last

Outdoor axes and carving axes usually have a curved edge, while cleavers and carpenter’s axes may have an almost straight edge. The axe is fixed to the rubber stop of the jig so you can easily follow the shape of the edge, regardless of whether it’s straight or rounded.

When dry grinding on a fast rotating bench grinder, there’s a risk of burning the edge and wrecking the axe. There’s no such risk with the Tormek sharpening system as it rotates at a low rpm and the water cools the edge continuously.

Set the sharpening angle by usage

Choose the best sharpening angle for your axe. The edge angle for an all-round axe for sports and leisure use is bigger than for a carving axe. A splitting maul requires an even bigger edge angle.

Carving axes can be sharpened asymmetrically, with a larger bevel on the left-hand side (if you’re right-handed). That will make the axe cut more easily because the cutting force is closer to the direction of cutting.

No more hand cramps

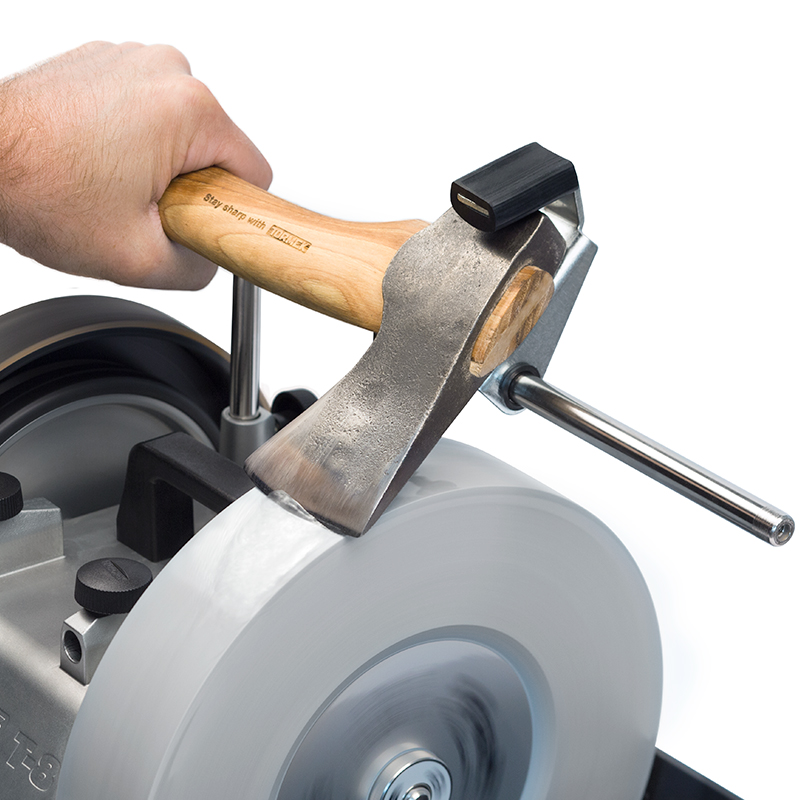

The rotation of the grinding wheel pushes the axe up so that it’s fixed against the rubber stop of the jig and amplifies the force of your hand. This automatically applies just the right amount of pressure against the grinding wheel. And your edge won’t cut into the grinding wheel, either – this can easily happen when you’re sharpening freehand against the rotation direction.

Additional information

Weight 0.2 kg
Dimensions 20 × 20 × 10 cm

Brand

Tormek

Well-grounded in the Swedish tradition of advanced innovation, functionality and quality, Tormek has developed a unique sharpening system that has come to set a standard in modern edge tool sharpening. Shop Tormek Sharpening Machines online at Canadian Woodworker! Questions? Call us at 1-800-665-2244.
