Bullett 15” Floor Model “Esc” Drill Press

Description

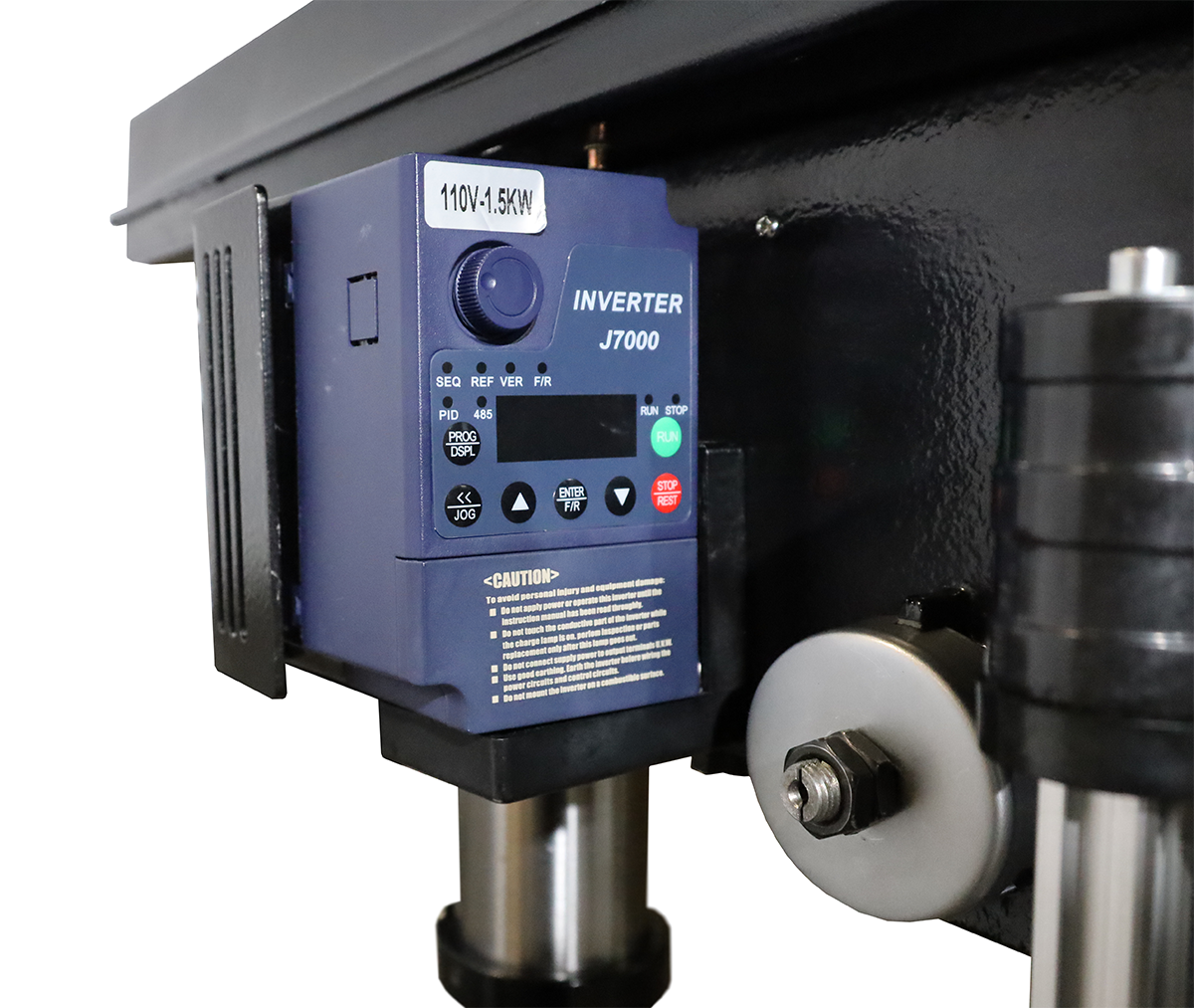

The Bullett CWI-DP176-VFD is equipped with a TEFC 1 HP 110v single-phase enclosed induction motor, delivering consistent and reliable power for demanding tasks. The Variable Frequency Drive (VFD) inverter provides precise speed control with a range up to 3000rpm, allowing you to adjust the speed to suit different materials and drilling requirements without any loss of torque.



Constructed with heavy-duty cast-iron, both the table and base offer outstanding stability and durability. The table includes a rack-lift mechanism for easy height adjustments and can tilt up to 45 degrees and rotate a full 360 degrees, providing maximum flexibility for various drilling angles and positions. The substantial weight of 68kg (150 lbs) ensures stability and minimizes vibration during operation, contributing to precise and clean drilling results.



An integrated LED light is incorporated into the head of the drill press, ensuring your workspace is well-lit for better visibility and accuracy. This light is integrated into the machine and does not require a separate battery. The built-in dual intersecting adjustable laser guides enhance precision by clearly indicating the drill point, helping you achieve perfect drill placements every time.



The 5/8” steel chuck, with a #2 Morse taper, secures drill bits firmly and allows for efficient drilling. The machine features an 80mm drilling depth stroke with a solid positive depth stop mechanism for precise depth control.



Safety is a priority with the swing-away see-through plastic chuck guard, which provides protection and easily moves out of the way for quick bit changes. The Magnetic Safety Off Switch adds an extra layer of security, allowing for quick power shutoff in emergencies.



The Bullett CWI-DP176-VFD 15” Floor Model “Esc” Drill Press is ideal for a wide range of applications. Its variable speed control, flexible table adjustments, and precision guides make it perfect for achieving accurate and consistent results in any project.



Enhance your workshop’s capabilities with the Bullett CWI-DP176-VFD 15” Floor Model “Esc” Drill Press. Combining powerful performance, durable construction, and advanced features, this drill press is an essential tool for anyone seeking precision, reliability, and versatility in their drilling operations.



Specifications:

• Motor: TEFC 1 HP 110v Single Phase Enclosed Induction Motor
• Speed Control: Variable Frequency Drive Inverter
• Speed Range: Up to 3000rpm
• Table Material: Heavy-duty cast-iron with rack-lift mechanism
• Table Tilt: Up to 45 Degrees
• Table Rotation: 360 Degrees
• Base Material: Heavy-duty cast-iron
• Illumination: LED light incorporated into the head
• Guides: Built-in dual intersecting adjustable laser guides
• Chuck Size: 5/8” steel chuck
• Spindle Taper: #2 Morse taper
• Drilling Depth Stroke: 80mm
• Safety Features: Swing-Away see-through plastic chuck guard, Magnetic Safety Off Switch
• Overall Height: 63″
• Weight: 68kg / 150 lbs
