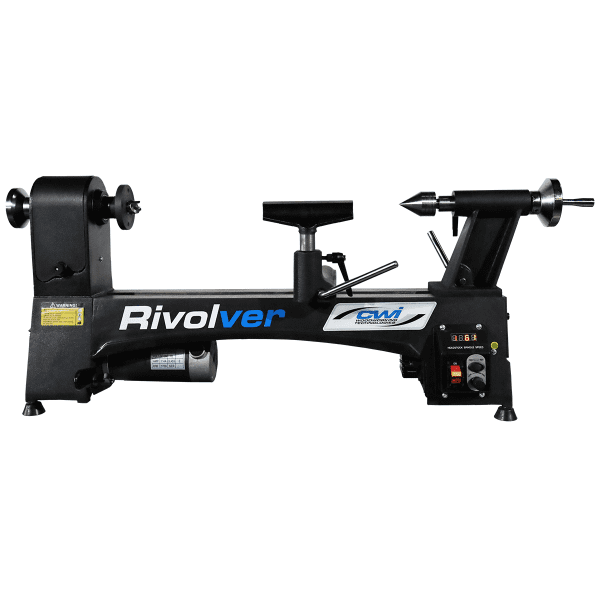

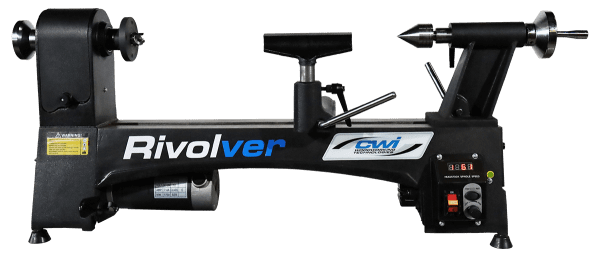

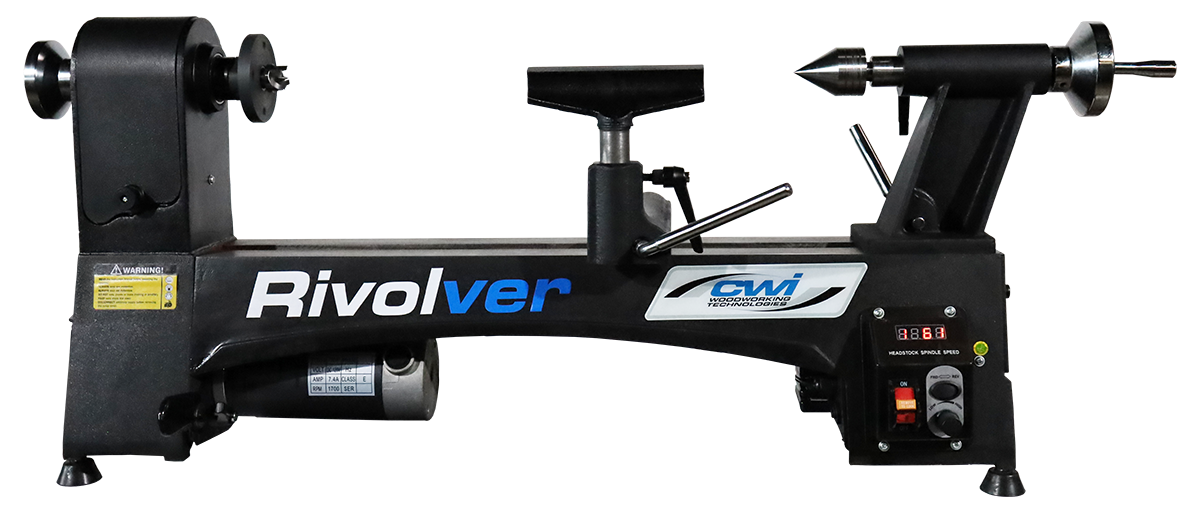

The Rivolver CWI-WL225 is an intermediate sized bench top wood lathe with excellent power and value in a 12” x 20” wood turning capacity. This compact yet sturdy wood lathe is designed to elevate your woodturning projects to new heights with bigger power and capacities. Crafted with precision engineering and packed with great features, this lathe is perfect for both novice and seasoned turners looking to work on small and intermediate spindle and bowl work.

The CWI-WL225 is perfect for turning pens, goblets, small spindles, candle holders, bowls, and small vases. This advanced cast iron machine, at 77 pounds, is still quite portable but also allows bigger projects to be accomplished. Still a great lathe for taking on the road to your favorite holiday destinations or for permanent set up in your home shop.

Features

750-Watt 110 Volt Variable Speed Motor

The Rivolver CWI-WL225 is powered by a 7.4-amp, 750-watt (1 HP) DC motor, with two speed ranges infinitely variable from 250 to 1300 rpm and 450 to 3450 rpm. There is a convenient forward and reverse switch to allow the user to reverse the rotation of the spindle for sanding operations and special cuts.

Enhanced Control Systems

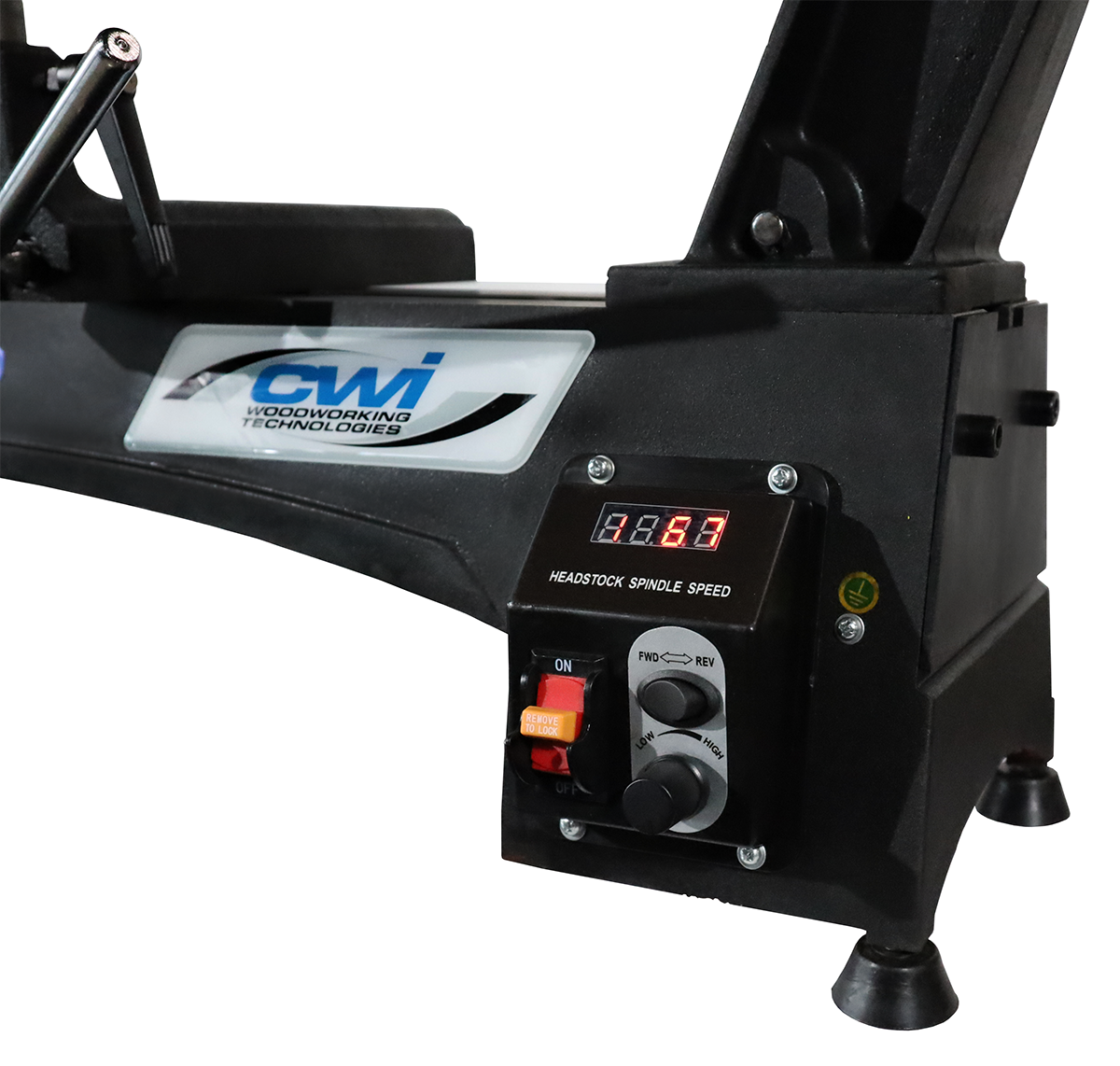

The smartly designed PCB controller on this lathe allows for stop/start functions, simple, smooth variable speed adjustments as well as forward reverse functions with the flip of a switch and a digital speed read out to always know the speed you need.

Compact Design

With a swing over the bed of 12” and a generous distance for a compact lathe of 20” max spindle length, this lathe offers more possibilities in a larger range of projects to be accomplished.

Versatile Drive System

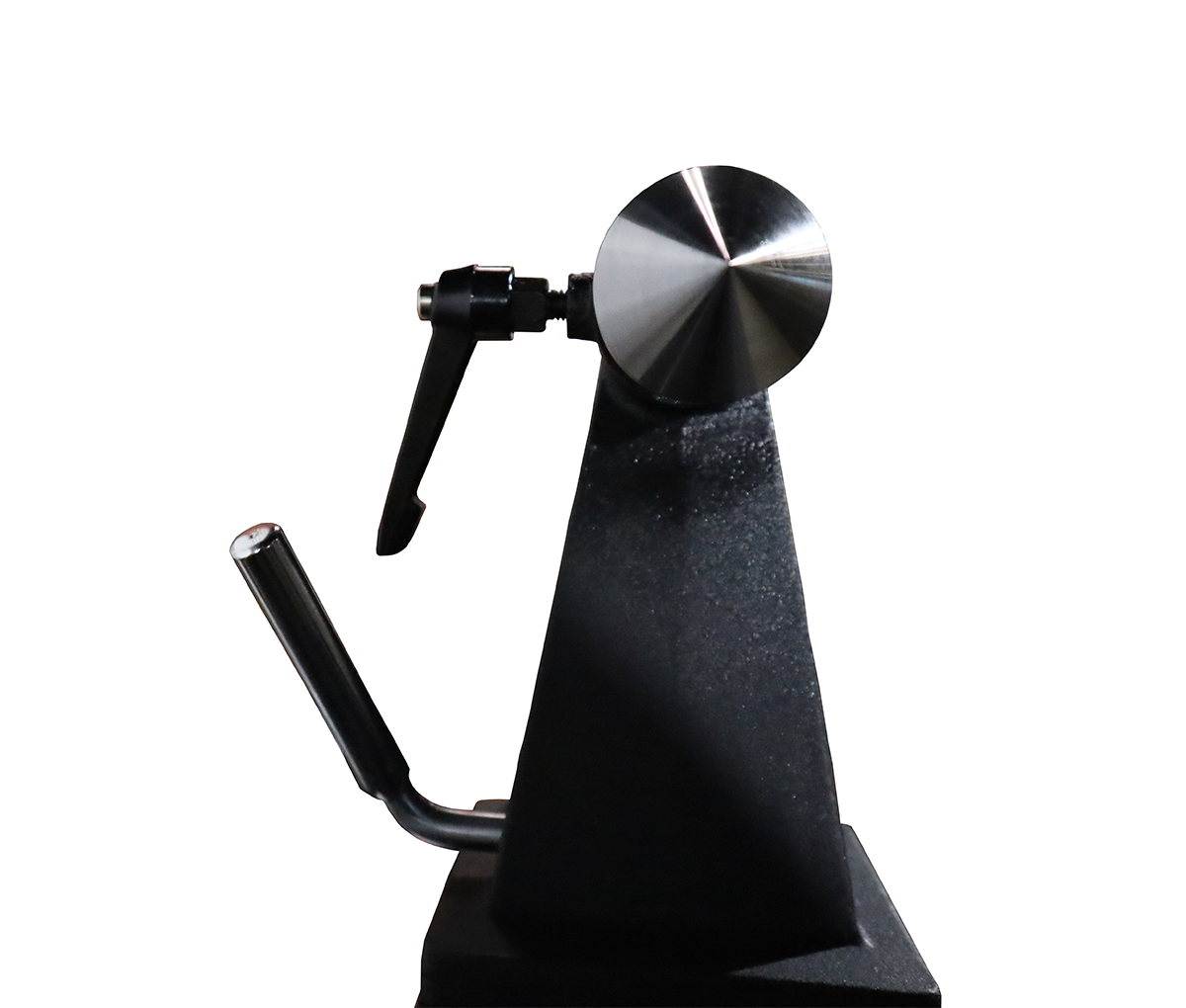

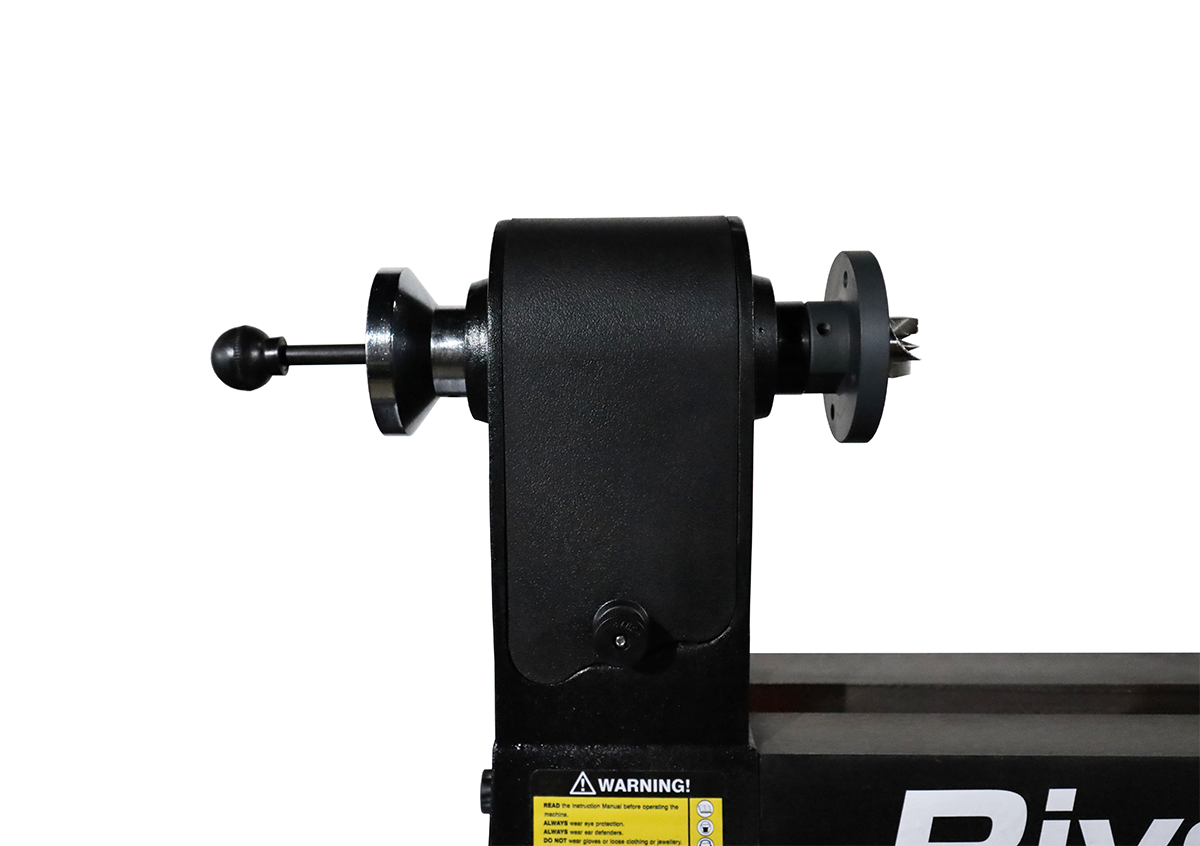

The headstock on the CWI-WL225 is a standard 1” x 8 TPI external thread with a #2 morse taper spindle inside. These standard sizes easily allow for many standard faceplates, chucks, and centers.  The tailstock also allows for #2 morse taper accessories. Included on both headstock and tailstock are convenient metal handwheels for simple tooling changes and mounting of the work piece.

Included Accessories

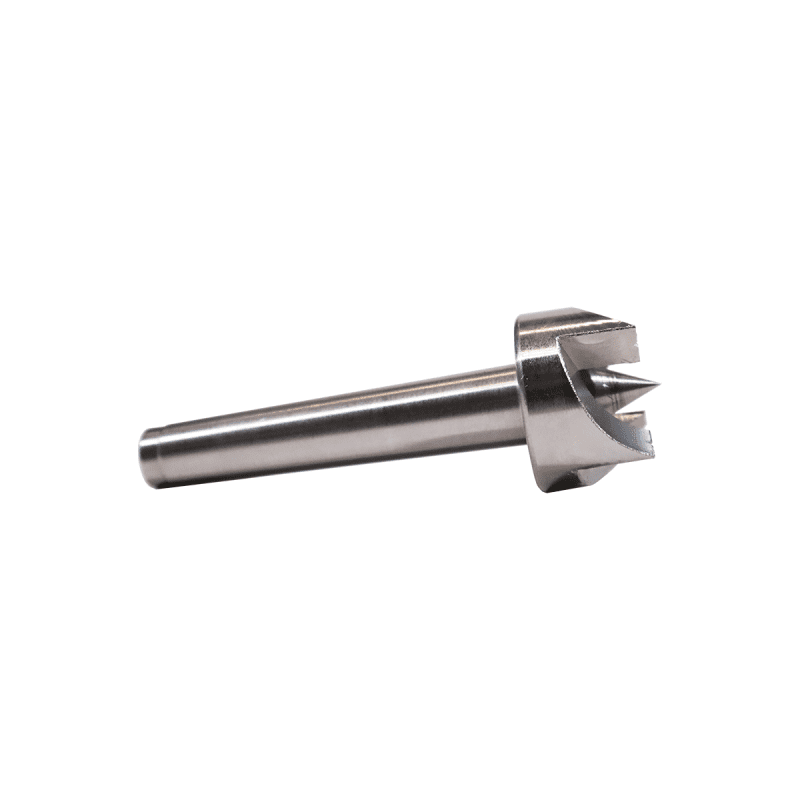

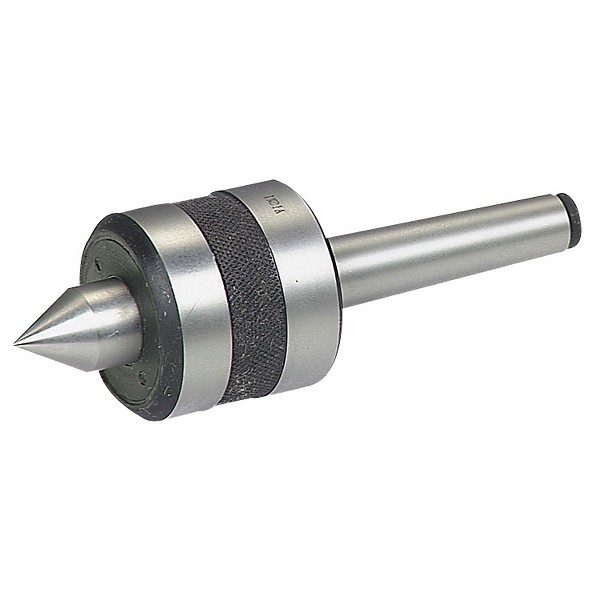

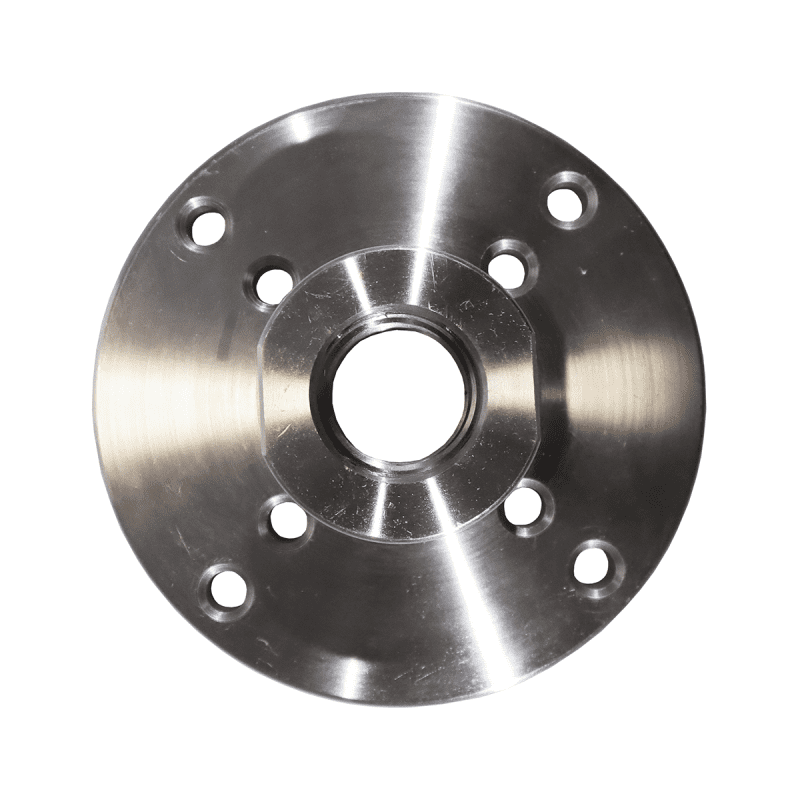

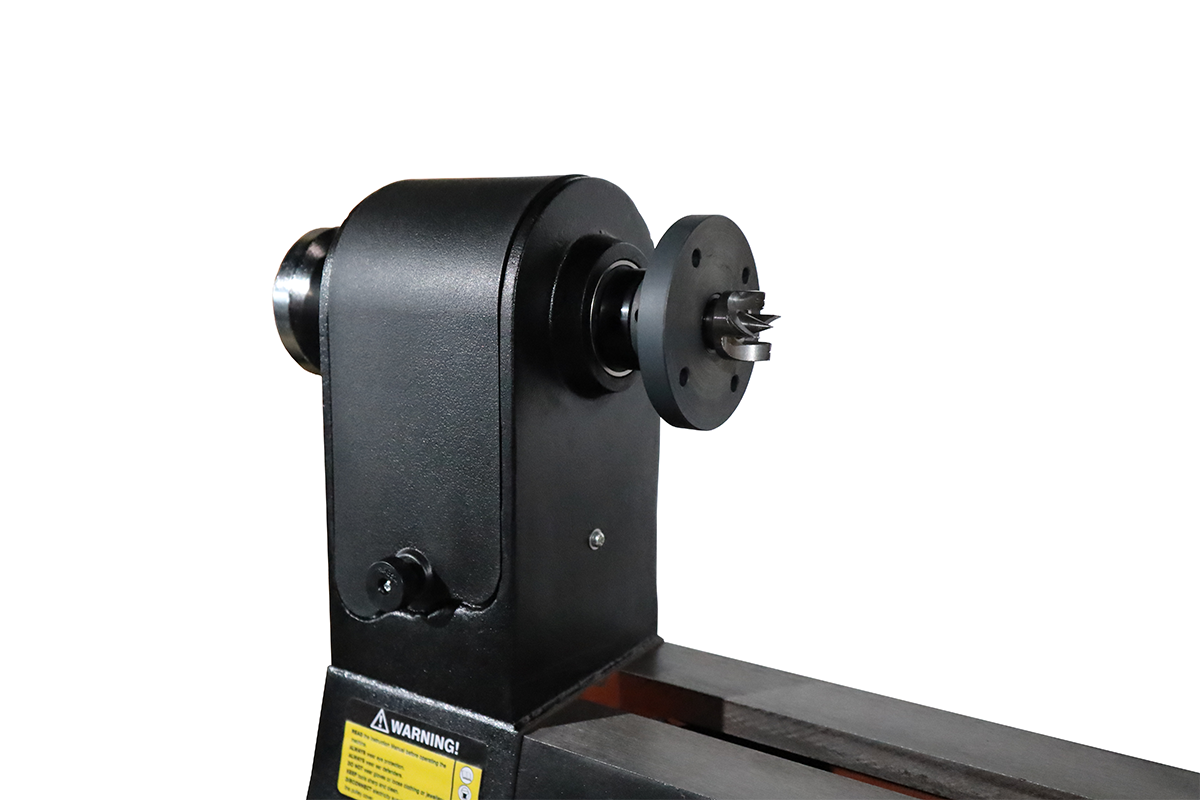

The Rivolver CWI-WL225 comes complete with a 3” faceplate, #2 Morse Taper four prong drive spindle, precision ball bearing driven center and a heavy duty 6” tool rest with 1” post.

Options

Also available for this lathe are the Rivolver four jaw woodturning chucks. For this model we recommend our CWI-WLC2.75 four jaw chuck or the full woodturners kit, CWI-WLC2.75-KT, which includes the chuck and many accessories for most any project you might consider on this lathe.

The Rivolver CWI-WL225 Intermediate Bench Top Wood Lathe is truly a versatile machine in a small package which will allow the user to tackle many creative projects. The performance is amazingly smooth and accurate and a pleasure to use for any woodturner.

Specifications:

• DC Motor 750 Watt (1 HP) 110 Volt 7.4 Amp
• Variable Speed in Two Ranges 250-1300/ 450-3450 RPM
• Electronic Digital Speed Read Out
• Forward and Reverse Rotations
• Cast Iron Headstock
• Metal Handwheels on both Headstock and Tailstock
• Spindle Thread 1” x 8 TPI
• Morse Taper Spindle #2 Headstock
• Cast Iron Tool Rest and Tailstock
• Morse Taper Spindle #2 Tailstock
• Swing Over Bed 12″
• Distance Between Centers 20″
• Spindle Thread 1” x 8 TPI

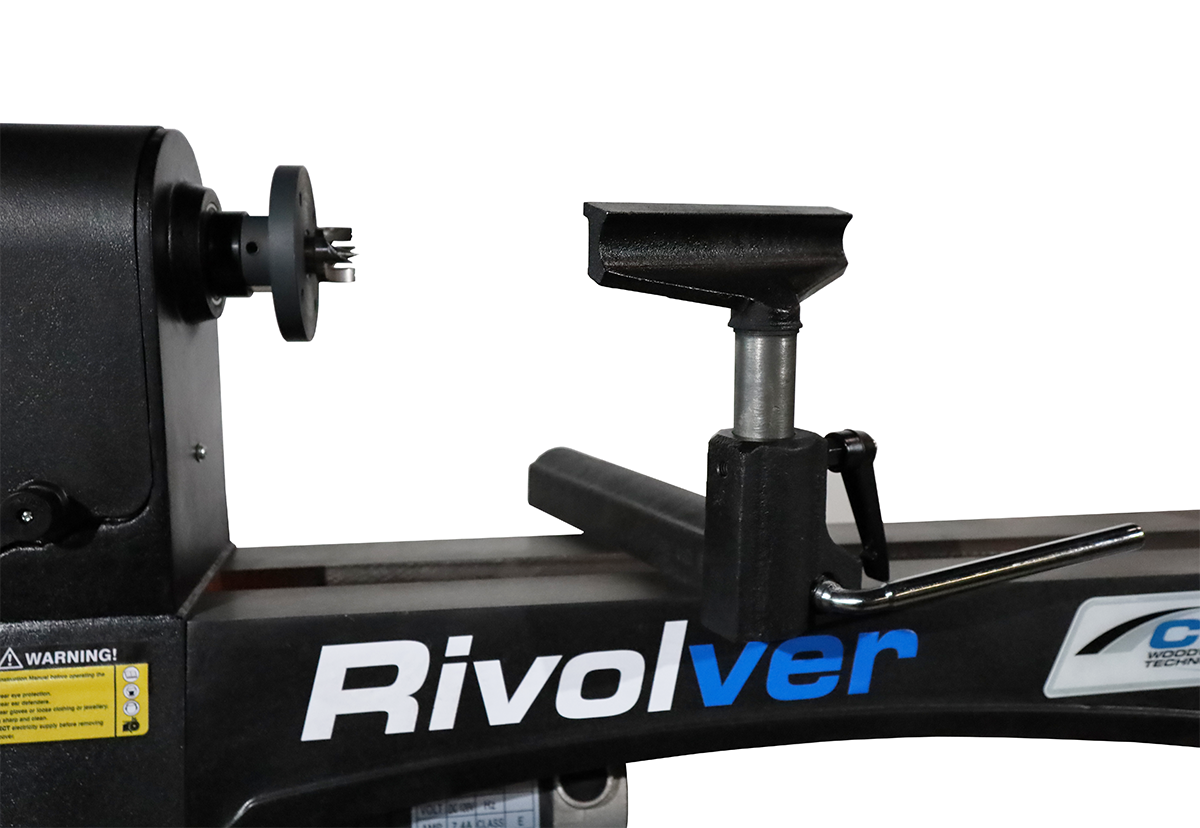

• Cast Tool Rest 6” with 1” Post
• Face plate 3”
• Four Prong Drive Center #2 MT

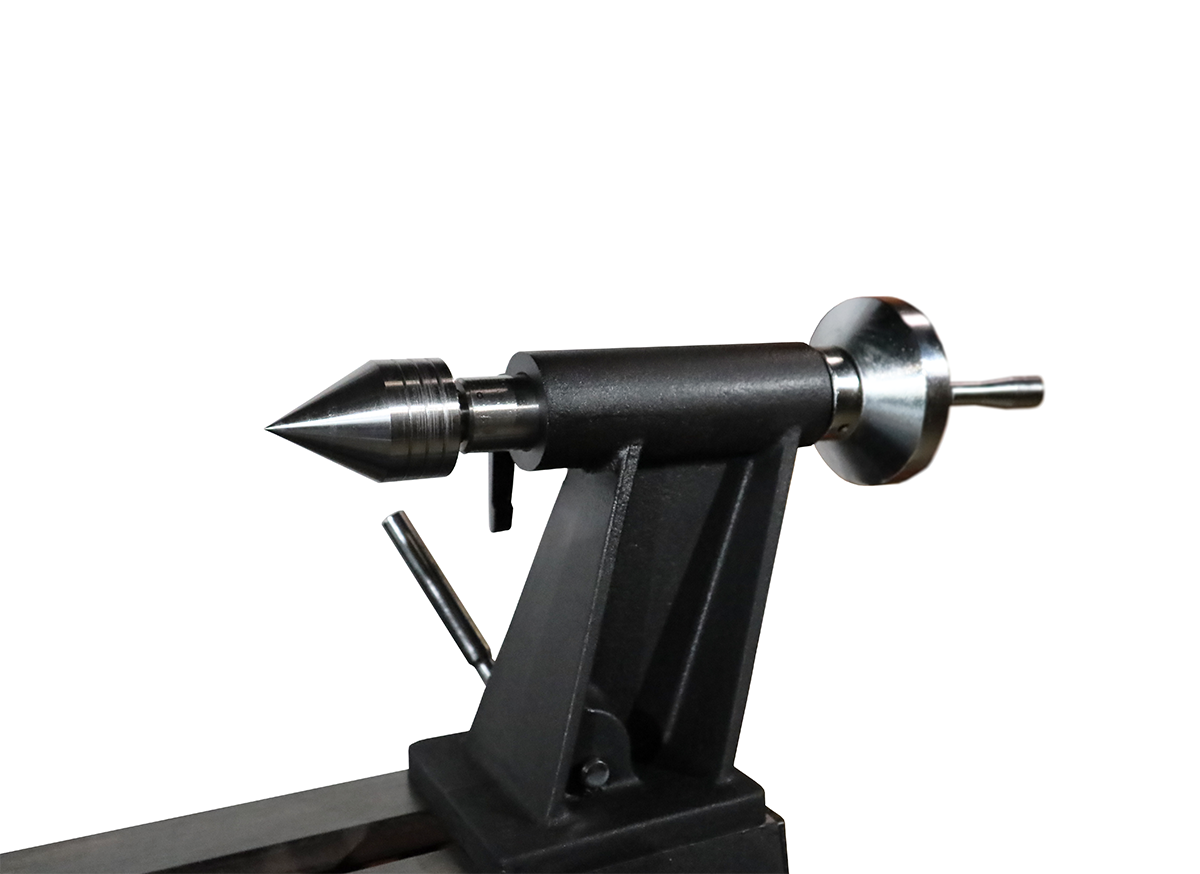

• Precision Ball Bearing Live Center #2 MT
• Bench Space 39″ x 12″ x 16”
• Shipping Size 36″ x 18″ x 12″
• Machine Weight 77 lbs (35 kg)
• Shipping Weight 82 lbs (37 kg)
