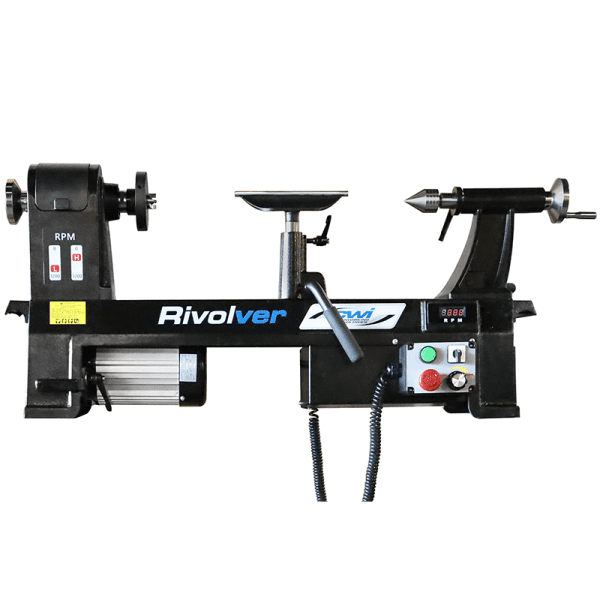

Rivolver 14″ x 20″ Vari-Speed Wood Lathe

Original price was: $1,299.95.Current price is: $1,199.95.

The CWI-WL325 is perfect for turning pens, goblets, small spindles, candle holders, bowls, vases, and even long spindles with the optional 24” bed extension. This very advanced cast iron machine, at 121 pounds, is a small work horse allowing users to reach the next level in turning smaller projects. Perfect for permanent set up in your home shop on a homemade work bench or even as a floor model with our optional Rivolver stand.

UPC: 754000097996 SKU: CWI-WL325-220 Categories: , , Tag:
Shop Rivolver Woodturning Tools and Wood Lathes at Canadian Woodworker

Description

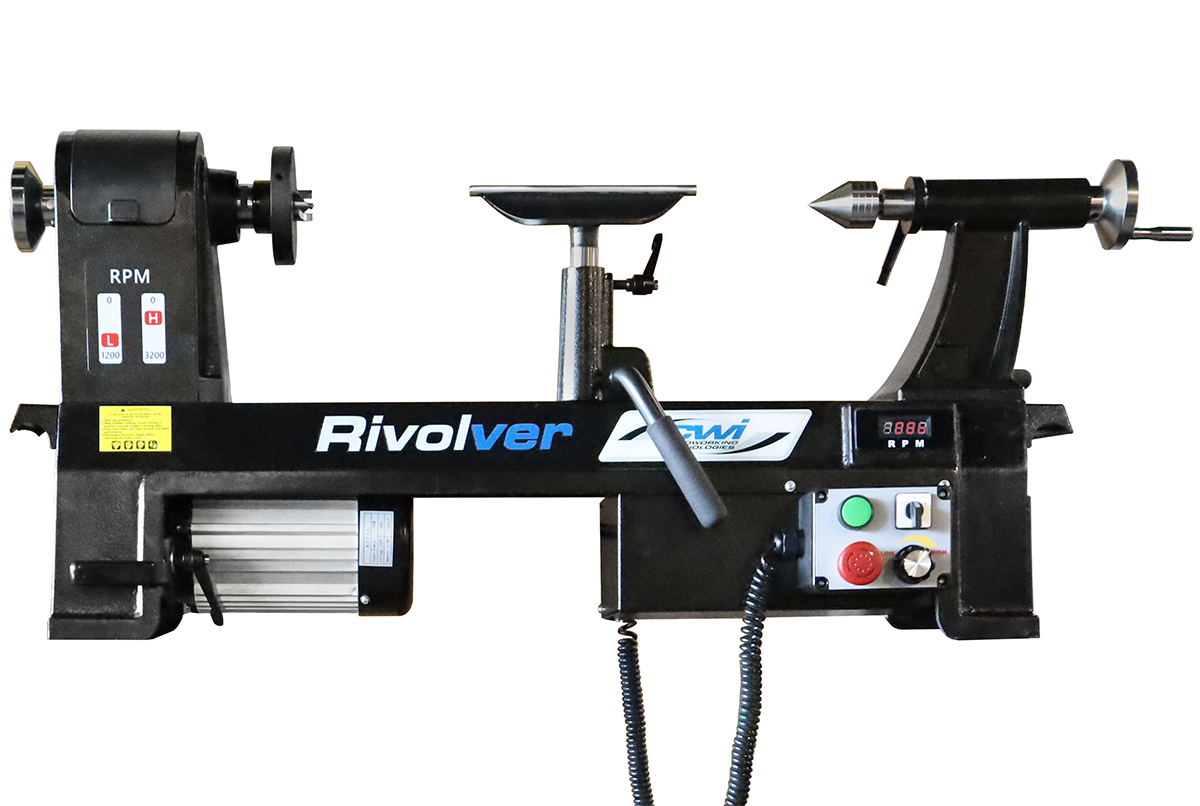

The Rivolver CWI-WL325 is the ultimate bench top wood lathe with excellent power, convenient options, very advanced features, all in an upsized 14” x 20” wood turning capacity. This compact yet very heavy-duty wood lathe is designed to take your woodturning projects to new heights with bigger power and capacities but also more convenience. Crafted with precision engineering and packed with very advanced features, this lathe is perfect for both novice and seasoned turners looking for a machine to allow them to be all they want to be with creative turning on a bench top sized machine.

The CWI-WL325 is perfect for turning pens, goblets, small spindles, candle holders, bowls, vases, and even long spindles with the optional 24” bed extension. This very advanced cast iron machine, at 121 pounds, is a small work horse allowing users to reach the next level in turning smaller projects. Perfect for permanent set up in your home shop on a homemade work bench or even as a floor model with our optional Rivolver stand.

Features
750-Watt 220 Volt Motor

The Rivolver CWI-WL325 is actually powered by a 4.8-amp, 750 watt (1 HP) three phase industrial motor controlled by an advanced computerized inverter system that converts the three-phase power motor to run on single-phase power, while also providing variable speed and extremely strong torque control. The CWI-WL335 offers two speed ranges, infinitely variable from 0 to 1200 rpm and 0 to 3200 rpm, all without losing torque. This means even at the lowest speeds this lathe still provides tremendous control and power.

Enhanced Control Systems

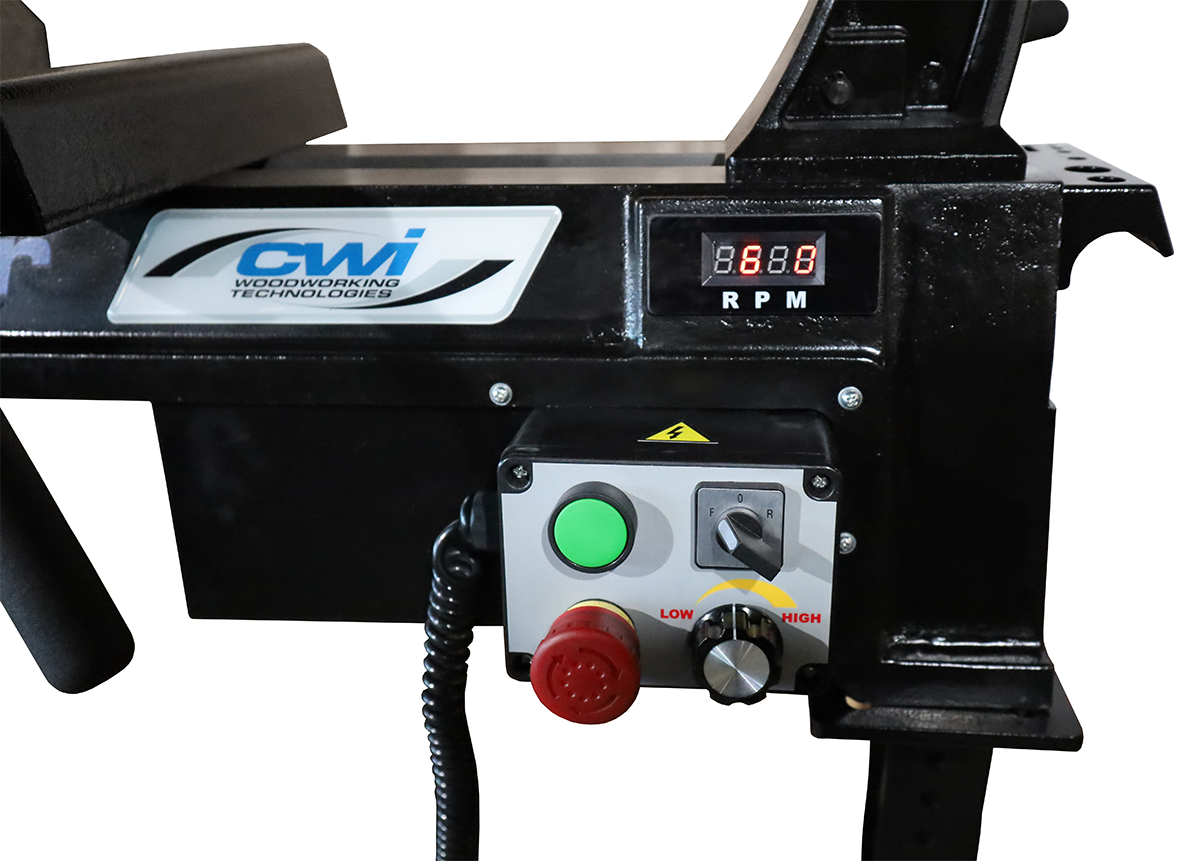

The Rivolver CWI-WL325 offers a very advanced portable controller which allows for stop/start functions, simple, smooth variable speed adjustments as well as forward reverse functions with the flip of a switch. The controller is tied into the power box of the machine with a long flexible cord and a magnetic backing to allow the user to place the control in any convenient position while operating the machine, for fast simple adjustments at the tip of your fingers. Great for working on the front or back sides of the machine for special operations. There is also a digital speed read out to always know the speed you need.

Simple Speed Changes

The CWI-WL325 utilizes a flat ribbed poly belt to transfer all that power to the spindle of the machine. To change between speeds simply unlock the robust adjustment handle and release the tension on the belt to move it to the second set of precision pulley sizes.

Indexing

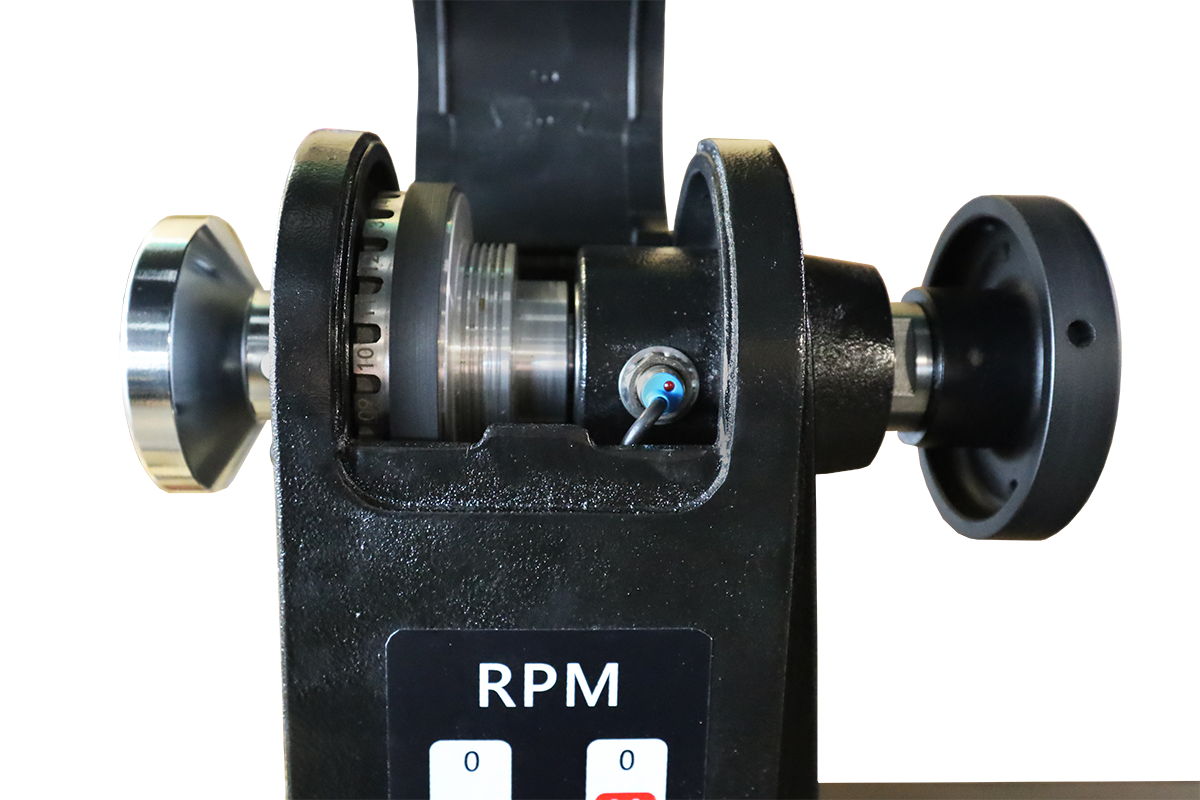

The CWI-WL325 also features a robust and accurate indexing pully on the spindle assembly for specialized projects like fluting. Simply twist the spring-loaded locking spindle to allow it to set into the indexing pulley at any one of the 24 indexing positions.

Compact Design

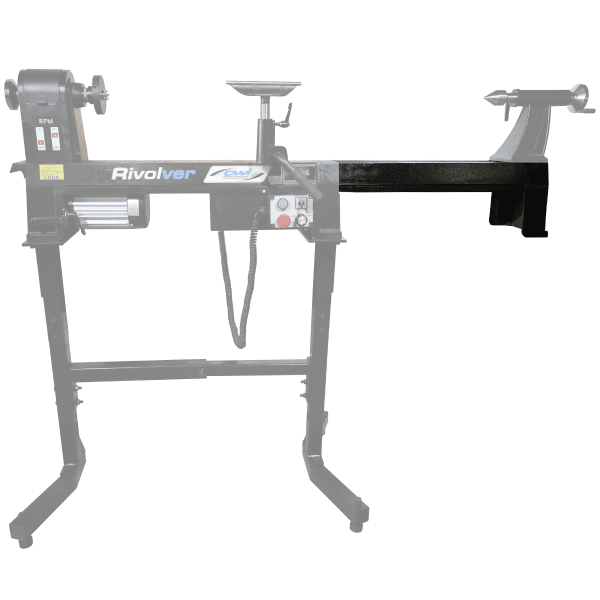

With a swing over the bed of 14” and a generous distance for a compact lathe of 20” max spindle length, this lathe offers more possibilities in a larger range of projects to be accomplished. Don’t be fooled though by its compact size. At 121 pounds this robust bench top lathe will handle all you can give it. For more capacity a 24” cast iron bed extension is also available to increase spindle length to 44”.

Versatile Drive System

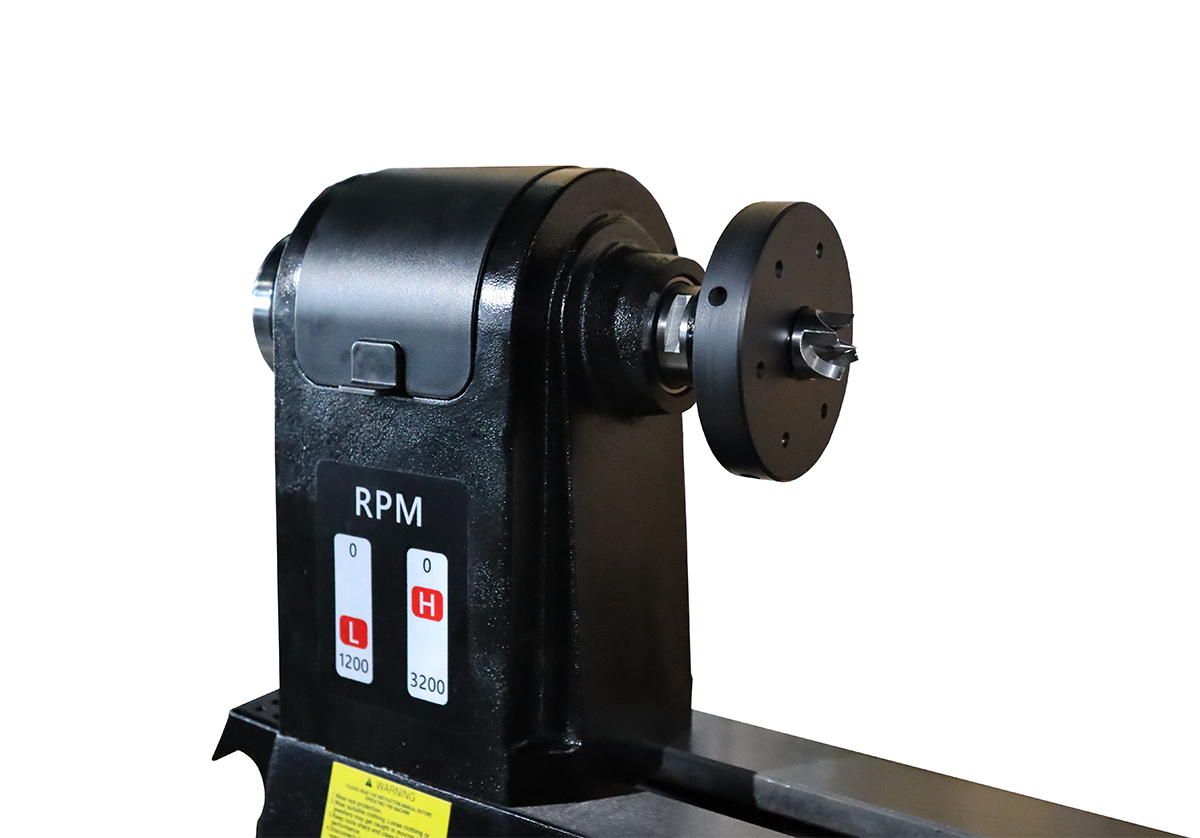

The headstock on the CWI-WL325 is a standard 1” x 8 TPI external thread with a #2 morse taper spindle inside. These standard sizes easily allow for many standard faceplates, chucks, and centers.  The tailstock also allows for #2 morse taper accessories. Included on both headstock and tailstock are convenient metal handwheels for simple tooling changes and mounting of the work piece.

Included Accessories

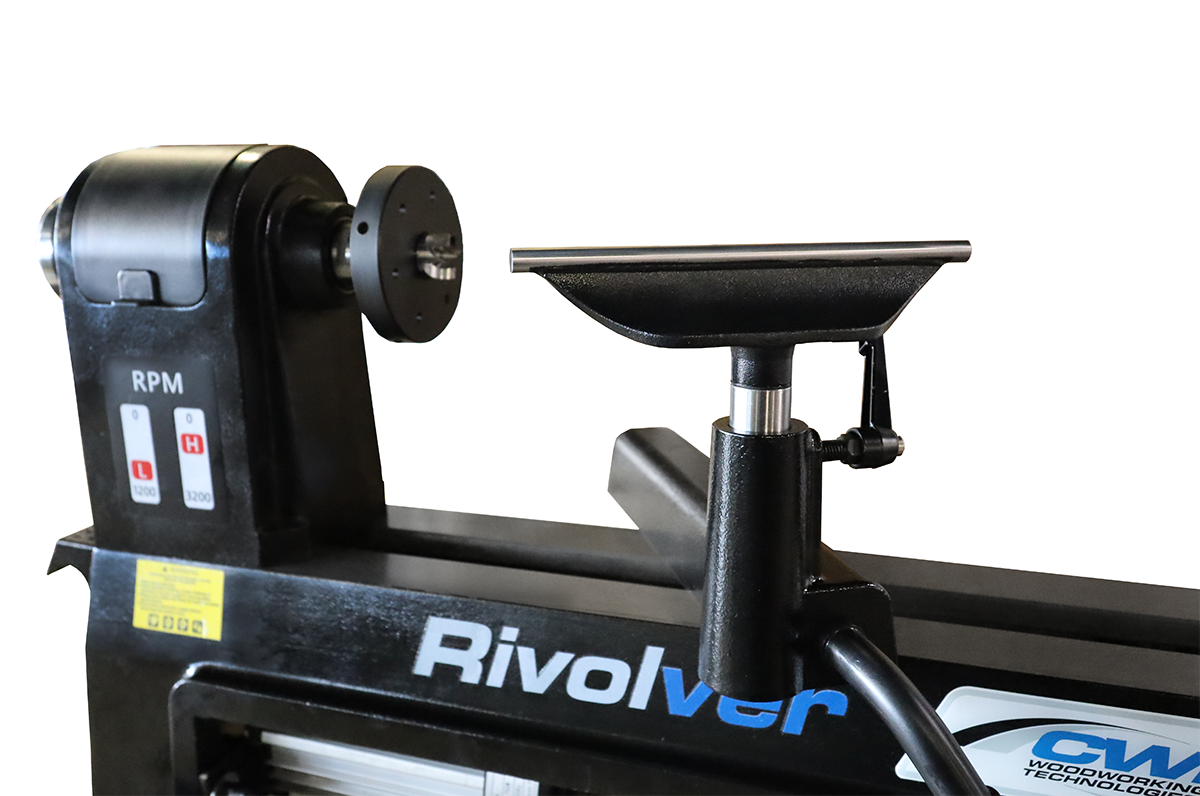

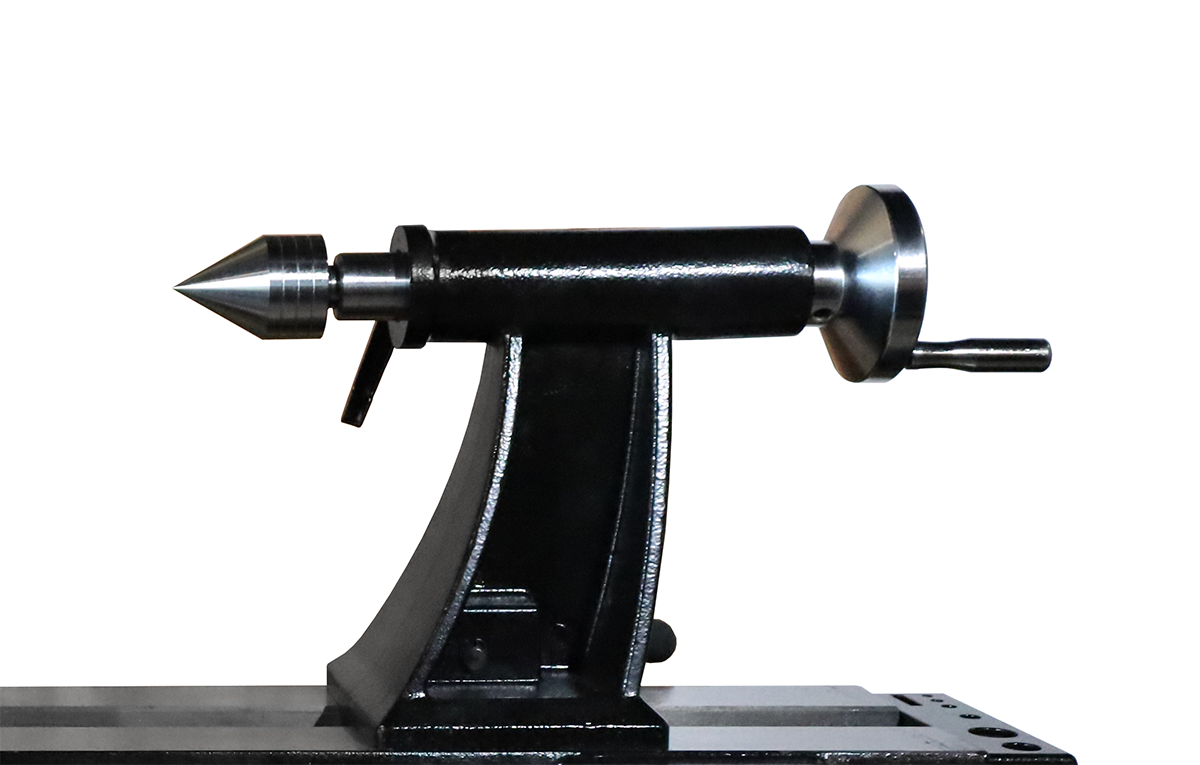

The Rivolver CWI-WL325 comes complete with a 4” faceplate, #2 Morse Taper four prong drive spindle, precision ball bearing driven center and a heavy duty 8” tool rest with 1” post. The tool rest is specially designed with a hardened steel rod laser welded to the cast iron rest for extreme life expectancy and smoothness of use. The 1” precision ground steel post is actually threaded into the cast iron rest with an M10 thread making the post replaceable. Rivolver offers these special designed tool rests in optional 4” to 12” sizes and posts in 1” or 5/8” diameter to fit many different wood lathes on the market today.

Options

There are several Rivolver options available for this lathe including four jaw woodturning chucks, adjustable stand, 24” cast iron bed extension, 3”-6” face plate sizes, drill chucks both keyed and keyless and 4” to 12” precision tool rests. For this model we recommend our CWI-WLC2.75 four jaw chuck or the full woodturners kit, CWI-WLC2.75-KT, which includes the chuck and many accessories for most any project you might consider on this lathe.

The Rivolver CWI-WL325 Ultimate Duty Bench Top Wood Lathe is truly a versatile machine in a small package which will allow the user to tackle many creative projects. More features, more performance, more options and amazingly smooth. A pleasure to use for any woodturner.

Specifications:

  • Motor 750 Watt (1 HP) 220 Volt 4.8 Amp Single Phase with Computerized Control
  • High Torque Variable Speed in Two Ranges 0-1200/ 0-3200 RPM
  • Electronic Digital Speed Read Out
  • Moveable Magnetic Controller for Operator Convenience
  • Forward and Reverse Rotations
  • Cast Iron Headstock with 24 Position Indexing
  • Metal Handwheels on both Headstock and Tailstock
  • Spindle Thread 1” x 8 TPI
  • Morse Taper Spindle #2 Headstock

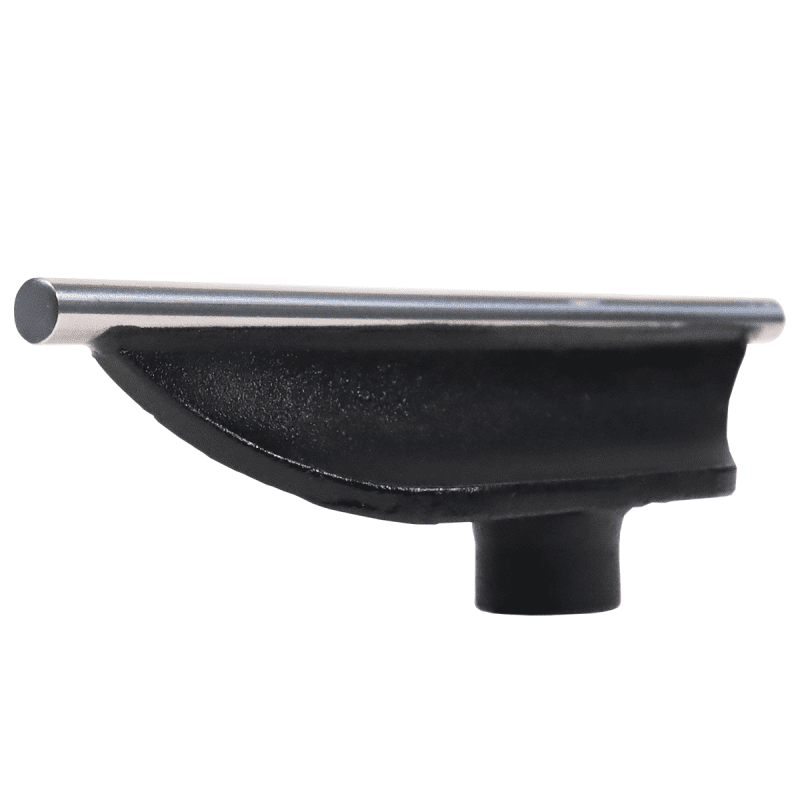

  • Precision Cast Iron 8” Tool Rest with hardened steel laser welded rolled edge
  • Replaceable precision ground steel Tool Rest 1” Post

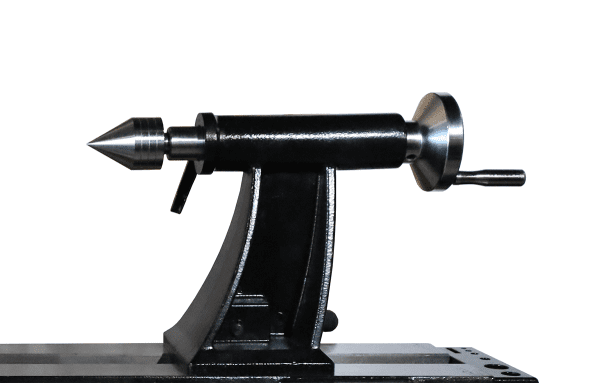

  • Morse Taper Spindle #2 Tailstock
  • Swing Over Bed 14″
  • Distance Between Centers 20″
  • Spindle Thread 1” x 8 TPI
  • Face plate 4”
  • Four Prong Drive Center #2 MT
  • Precision Ball Bearing Live Center #2 MT
  • Bench Space 36″ x 15″ x 18”
  • Shipping Size 39″ x 12″ x 23″
  • Machine Weight 121 lbs (55 kg)
  • Shipping Weight 128 lbs (58 kg)

Options:

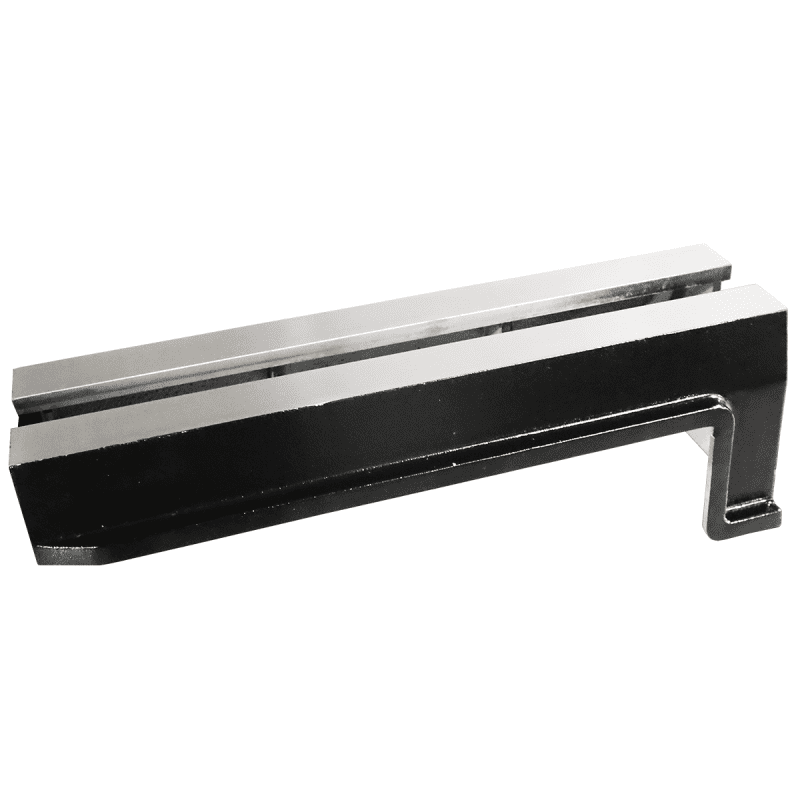

  • CWI-WL325-EX 24” Cast Iron Extension bed

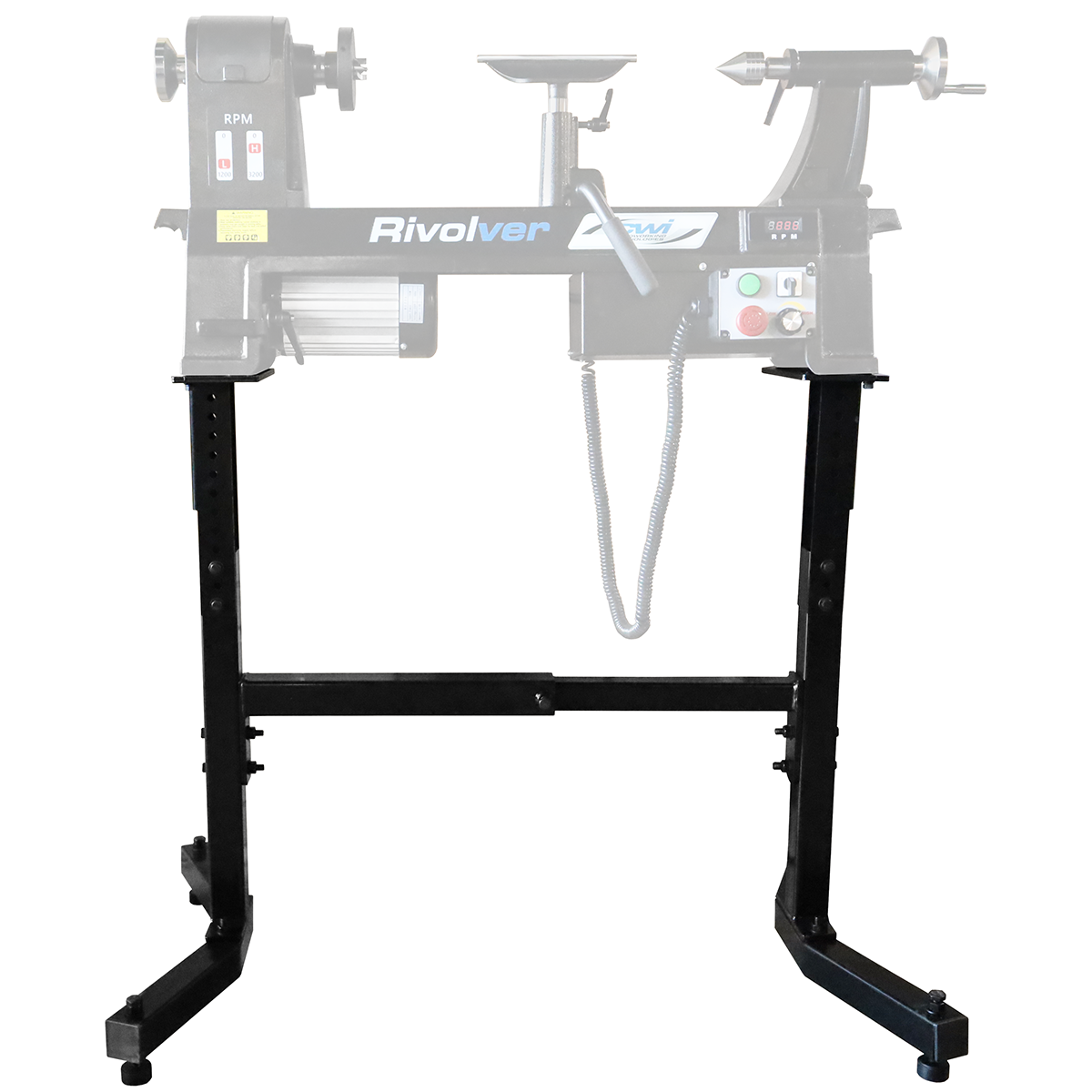

  • CWI-WL325-LEG Floor Stand
  • CWI-WLC2.75 Four Jaw 2.75” Lathe Chuck
  • CWI-WLC2.75-KT Four Jaw 2.75” Lathe Chuck with carry case and many turning accessories.
