Description

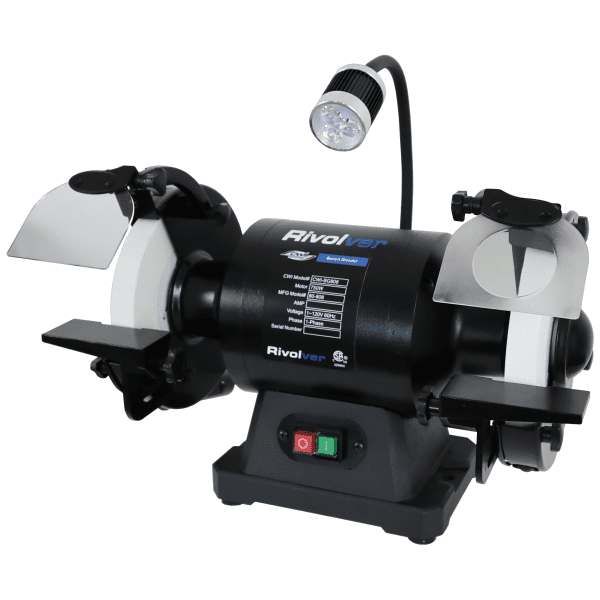

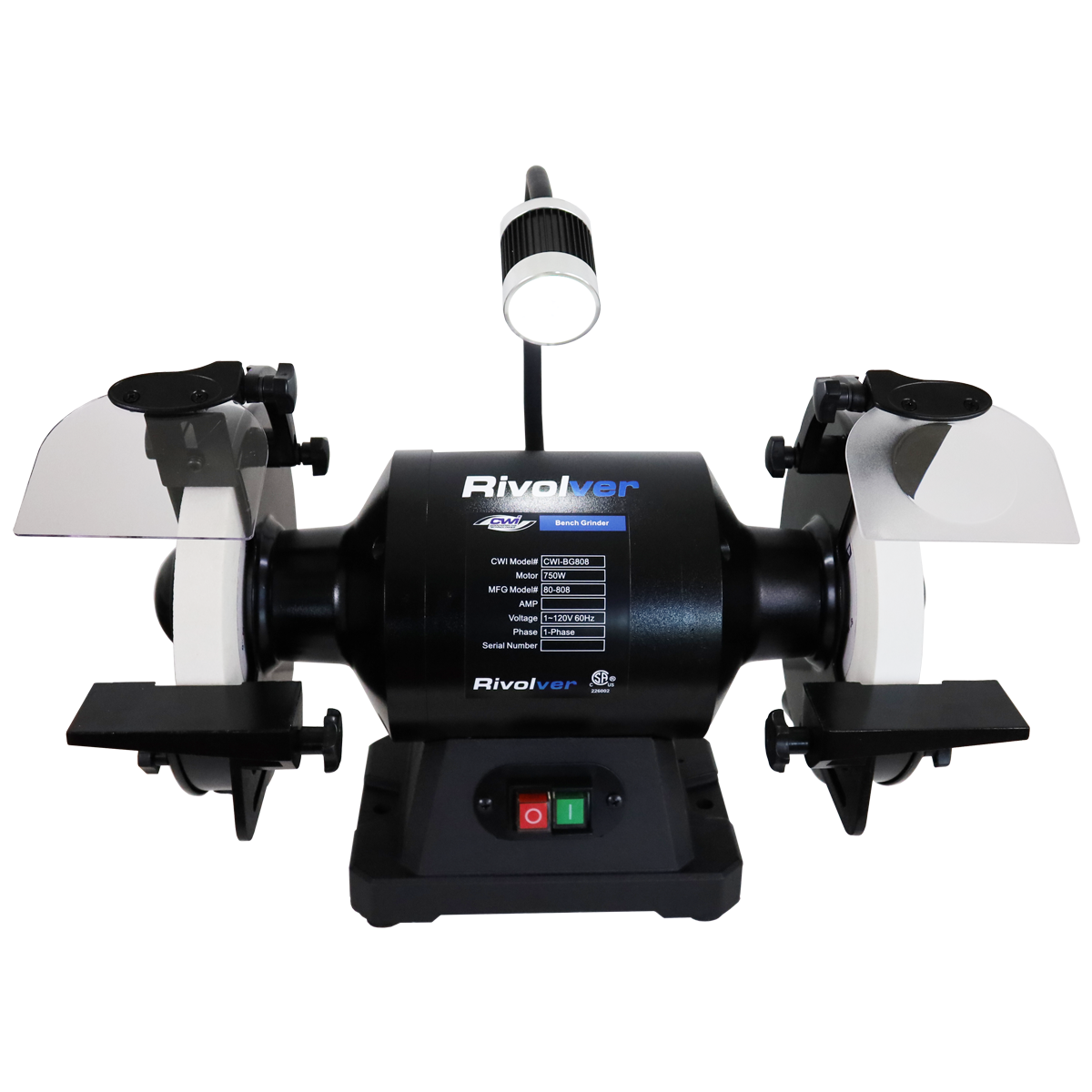

Elevate your grinding and sharpening tasks with the Rivolver CWI-BG808 8″ 1 HP Heavy Duty Slow Speed Bench Grinder, a powerhouse designed for both demanding production environments and precise hand tool maintenance.

This bench grinder boasts an impressive suite of features and robust specifications that make it an essential addition to any workshop. This heavy-duty grinder spins at 1750 rpm and is outfitted with two white aluminum oxide wheels in 60 grit and 120 grit. White aluminum oxide wheels are a specific blend of abrasive to properly sharpen edge tools without burning or blueing the steel.  Other features include a large LED work light, adjustable tool rests (one with groove for sharpening drill bits) and eye shields.

The extra power and robust weight allow this grinder to tackle heavier tasks and is also a perfect partner for use of optional CBN grinding wheels for specific sharpening needs.

Options for this grinder are the Rivolver CBN grinding wheels, grinder stand with tool drawer and a Rivolver woodturning tool sharpening kit.

Features:

Powerful 1 HP Motor: Tackle tough grinding jobs with ease thanks to the powerful 1 HP motor, providing the strength and durability needed for heavy-duty tasks.

Slow Speed 1,750 RPM: Operate at an optimal slow speed of 1,750 RPM, ideal for preventing tool overheating and ensuring precision work.

White Aluminum Oxide Wheels: Its 60 and 120 grit wheels are perfect for both coarse and fine grinding applications, making it adaptable to various tasks. The make up of these wheels allow grinding without overheating or blueing the edges of the steel.

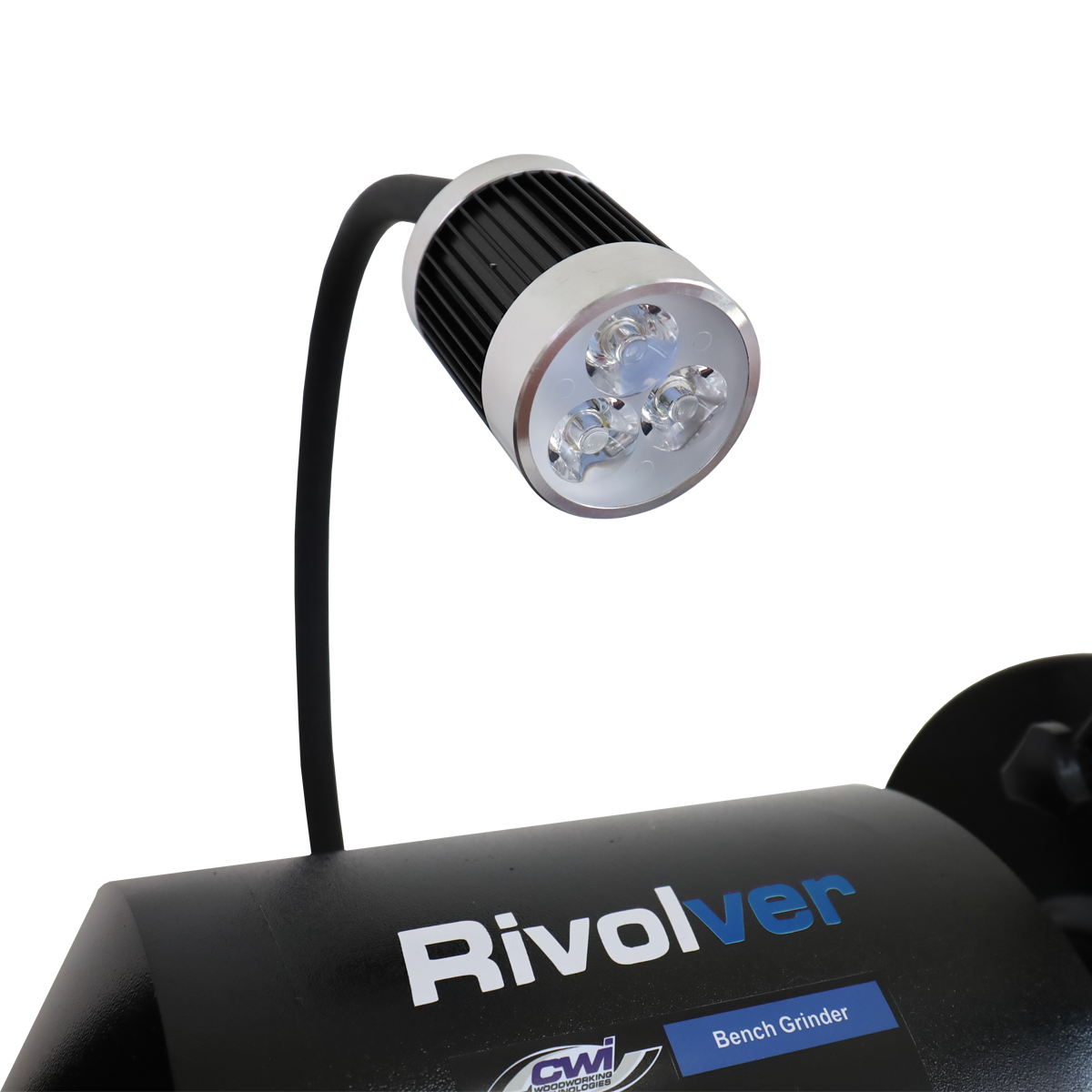

LED Light: Large moveable LED light allows great vision for the task at hand.

Adjustable Tool Rests: Enjoy enhanced control and accuracy with the extra-large, flat tool rests. The setup and adjustment of these tool rests is controlled via two locking hand-wheel knobs, one for each tool rest. The control and accuracy of the alignment of the tool rests is a significant upgrade for the CWI-BG808.

Magnetic Safety Switch: The Rivolver CWI-BG808 features a magnetic power switch that allows for an instant shut-off of the machine.

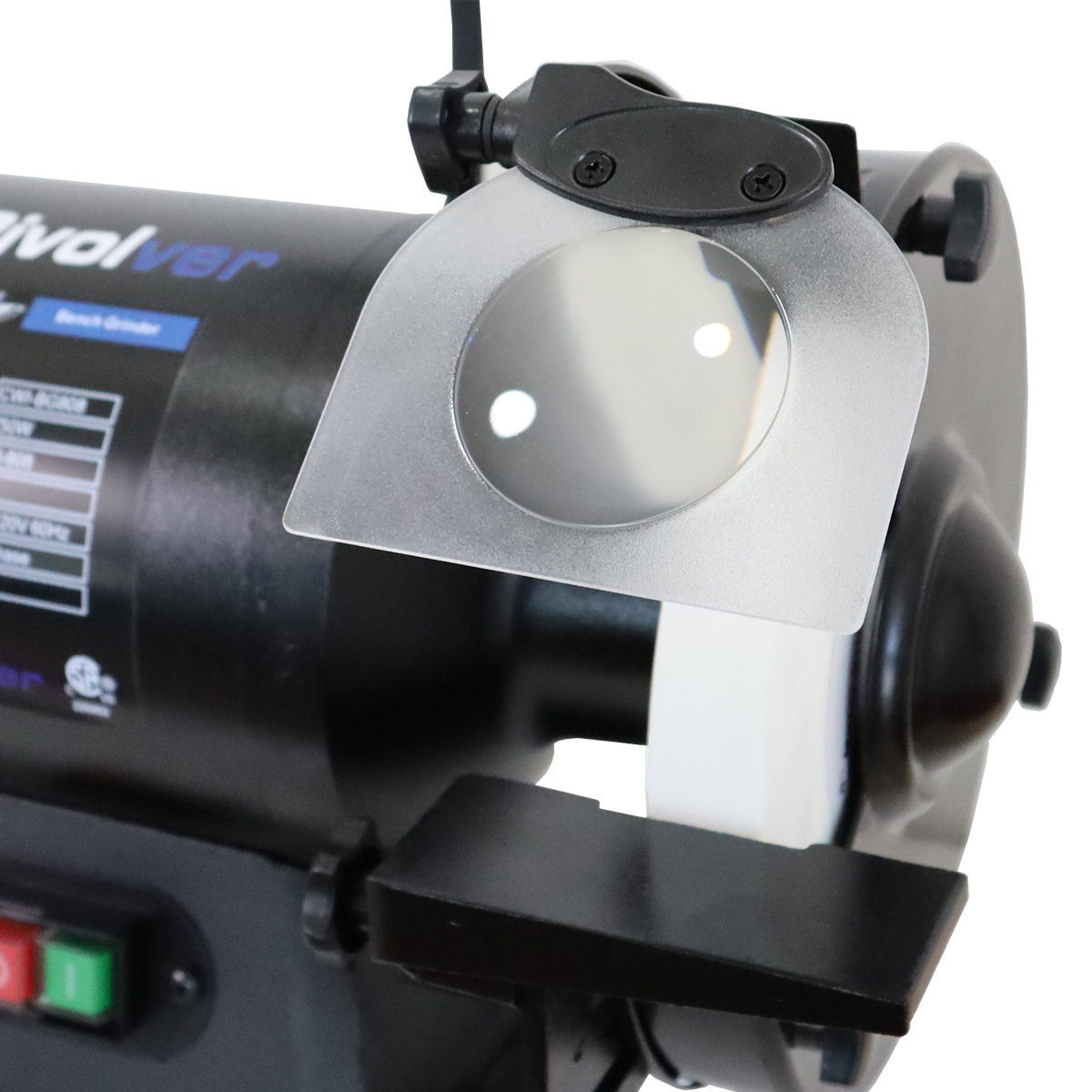

Adjustable Safety Eye Shield and Spark Resistors: Work safely and confidently with adjustable safety eye shields and spark resistors that protect you from debris and sparks.

Dual Dust Collection Ports: Maintain a clean workspace with dual dust collection ports, effectively capturing debris from the rear of the wheel guards.

The Rivolver CWI-BG808 is engineered to provide consistent performance and durability. Its cast metal wheel flanges ensure stability and long-lasting use, while the 60 and 120 grit wheels offer versatility for both coarse and fine grinding. Measuring 19″ in width, 12-1/8″ in height, and weighing a substantial 54 lbs, this grinder is built to stay securely in place during operation.

Whether you’re shaping, sharpening, or grinding, the Rivolver CWI-BG808 8″ HD Slow Speed 1HP Bench Grinder delivers the reliability and precision you need. Equip your shop with this high-performance bench grinder and experience the difference in quality and efficiency.

Specifications:

• Motor Horsepower: 1 HP
• Motor Amps: 7
• Motor Volts: 120V, 60 Hz
• Motor Speed: 1,750 RPM
• Wheels Diameter: 8”
• Wheels Stone Width: 1”
• Wheels Stone Grits: 60 & 120
• Wheels Arbor: 5/8”
• Overall Length: 10-1/4”
• Overall Width: 19”
• Overall Height: 12-1/8”
• Overall Base Size: 9-1/2” x 6-3/4”
• Cord Size: 6’
• Overall Net Weight: 54 lbs.
